Specifications
Brand Name :
Furious Motor
Model Number :
15060
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1722
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
150-60
Dimension :
150mm * 60mm
KV :
72
Max. Thrust :
56KG
Max. Torque :
31N.m
Max. RPM :
3588
Suggested ESC :
24S 200A
Suggested Prop :
45 inch propeller
Max. Current :
174A
Max. Voltage :
90V
Max. Power :
15KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
2.5KG
Application :
Paramotor, paraglider
Description

Intoroduction

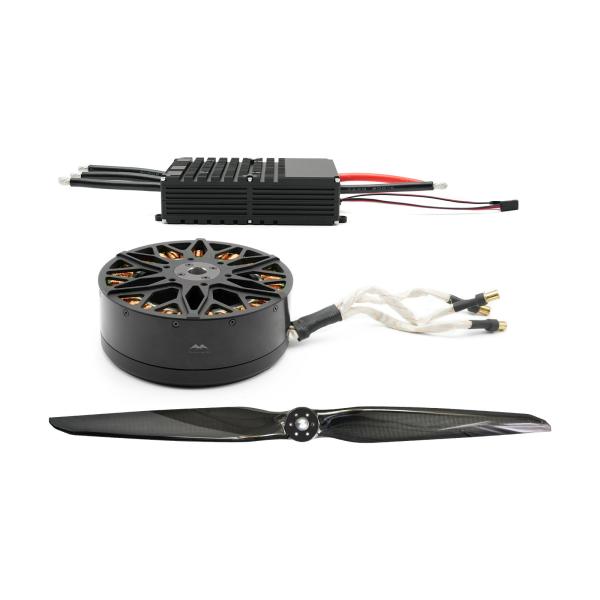

The 15060 Propulsion System is built for paramotors and paragliders, offering a balance of power and efficiency. Delivering up to 56kg of thrust while weighing just 2.5kg, this system ensures a strong yet lightweight solution for aerial applications.

Perfectly paired with a 45-inch propeller and a 24S 200A ESC, the 15060 brushless motor provides smooth and reliable performance. Designed for stability and efficiency, it is an excellent choice for those seeking a high-performance propulsion system for their flying experience.

Tech Specs

System

Max. Thrsut 58 kg / rotor
Takeoff Weight 20 kg - 29 kg / rotor
Suggested ESC 24 S 200 A
Suggested Propeller 45 inch 2-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 3.44 kg
Application Paramotor and paraglider

Motor

Model 150-60
KV 72
Max. Thrsut 58 kg
Max. Torque 31 N·m
Max. RPM 3588
Dimension 150 mm * 60 mm
Weight 2.5 kg

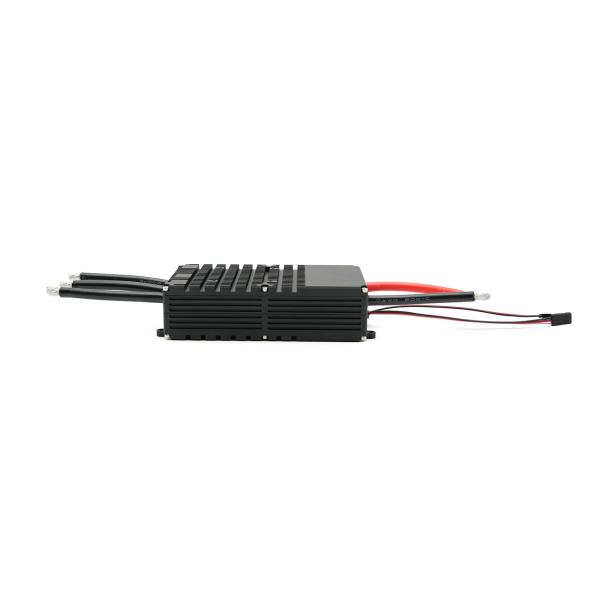

ESC

Model 24 S 200 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Current 240 A
Weight 595 g
Dimension 140.5 mm * 66.6 mm * 34.4 mm

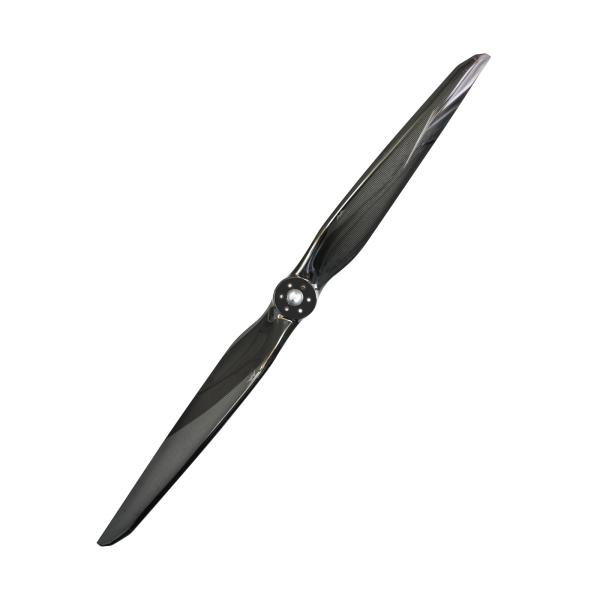

Propeller

Model 45 inch 2-blade
Diameter 45 inch
Material Carbon fiber
Weight 350 g
