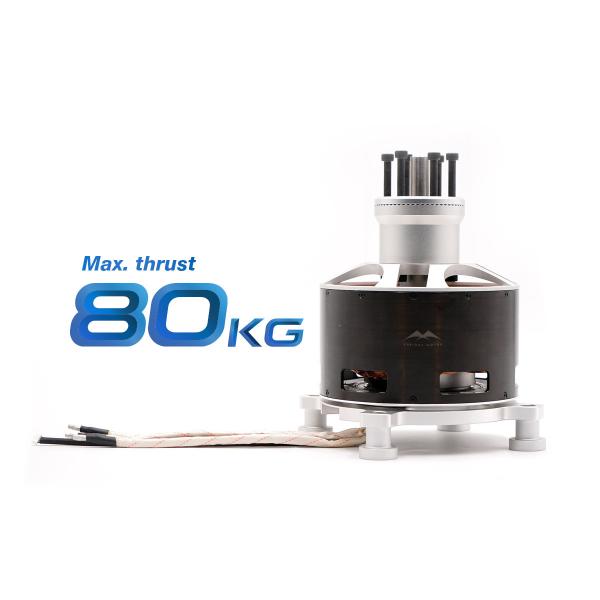

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V
Specifications
Brand Name :
Furious Motor
Model Number :
154120
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$885
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
154120
Dimension :
154mm * 120mm
KV :
54
Max. Thrust :
80KG
Max. Torque :
47N.m
Max. RPM :
3642
Suggested ESC :
24S 300A
Suggested Prop :
47 inch propeller
Max. Current :
252A
Max. Voltage :
90V
Max. Power :
18KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
5.9KG
Application :
Drone, paramotor
Description

Intoroduction

The 154120 brushless motor is expertly crafted to drive an extensive range of aerial vehicles, including large drones, UAVs, paramotors, paragliders, multirotor configurations, and unmanned aircraft. Meticulously sculpted for peak performance, this motor harmonizes effortlessly with a 47-inch propeller and a 24S 300A motor controller, providing precise command and efficient power allocation.
With an impressive maximum thrust of 80kg, it has emerged as a top choice for demanding drone missions. Enhance your aerial endeavors with exceptional stability, as the 154120 Brushless Motor sets new standards for dependability and accuracy in propulsion technology.

Tech Specs

Model 154120
Type Brushless DC motor
KV 55
Suggested ESC 24 S 300 A
Suggested Propeller 47 inch
Max. Thrust 80 kg
Max. Torque 47 N·m
Max. RPM 3642
Li-Po 14 S ~ 24 S
Max. Voltage 90 V
Max. Current 252 A
Max. Power 18 kW
Motor Dimension 154 mm * 120mm
Weight 5.9 kg
Application Multi rotor drone, heavy lift drone, paramotor

Details

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

154120 Robust Brushless Motor DC With 80kg Thrust For VTOL Drone 100V

Robust Brushless DC Motor 154120 With 80kg Thrust For VTOL Drone 100V With Enhanced Reliability
