Specifications
Brand Name :
Furious Motor
Model Number :
10850
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$ 234
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
10850
Dimension :
108 mm * 50 mm
KV :
100
Max. Thrust :
25 KG
Max. Torque :
15 N.m
Max. RPM :
5000
Suggested ESC :
75 V 200 A
Suggested Prop :
36 inch propeller
Max. Current :
150 A
Max. Voltage :
75 V
Max. Power :
7.5 KW
Li - Po :
12 S - 16 S
Hall Sensor :
Optional
Weight :
1.5 KG
Application :
Heavy lift drone
Description

Intoroduction

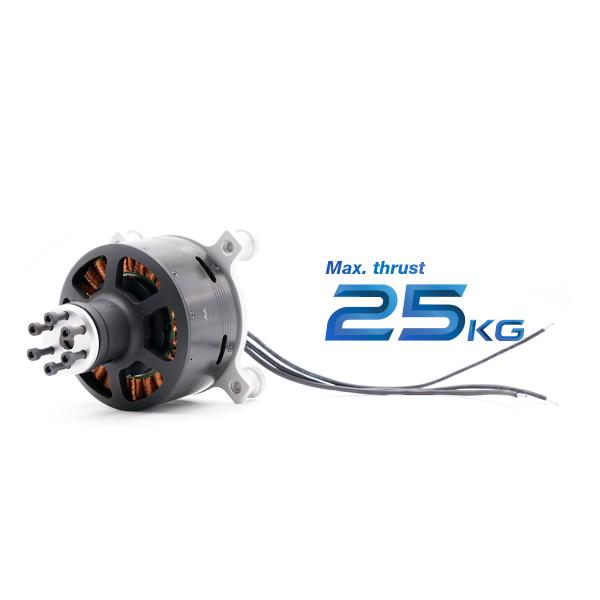

For demanding aerial platforms, the 10850 brushless motor redefines performance. Designed to handle substantial payloads and extreme conditions, this motor, in conjunction with a 75V 200A ESC and a 36-inch propeller, produces an impressive 25kg of maximum thrust.
This power output positions the 10850 as a critical component for heavy-lift drones and multirotor systems, enabling consistent and powerful propulsion for complex missions.

Tech Specs

Model 10850
Type Brushless DC motor
KV 100
Suggested ESC 75 V 200 A
Suggested Propeller 36 inch propeller
Max. Thrust 25 kg
Max. Torque 15 N·m
Max. RPM 5000
Li-Po 12 S ~ 16 S
Max. Voltage 75 V
Max. Current 150 A
Max. Power 7.5 kW
Motor Dimension 108 mm * 50mm
Weight 1.5 kg
Application Multi rotor drone, heavy lift drone

Details

10850 Custom VTOL Motor Low Vibration For Precision Aerial Mapping Multi Rotor Drone

10850 Custom VTOL Motor Low Vibration For Precision Aerial Mapping Multi Rotor Drone

10850 Custom VTOL Motor Low Vibration For Precision Aerial Mapping Multi Rotor Drone

10850 Custom VTOL Motor Low Vibration For Precision Aerial Mapping Multi Rotor Drone

10850 Custom VTOL Motor Low Vibration For Precision Aerial Mapping Multi Rotor Drone

10850 Custom VTOL Motor Low Vibration For Precision Aerial Mapping Multi Rotor Drone

10850 Custom VTOL Motor Low-Vibration For Precision Aerial Mapping Multi Rotor Drone
