Specifications
Brand Name :
Furious Motor
Model Number :
23850
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1260
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
23850
Dimension :
238mm * 50mm
KV :
35
Max. Thrust :
98KG
Max. Torque :
80N.m
Max. RPM :
2420
Suggested ESC :
24S 300A
Suggested Prop :
55 tri-blade propeller
Max. Current :
280A
Max. Voltage :
90V
Max. Power :
20KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
4.5KG
Application :
Drone, paramotor
Description

Intoroduction

The Furious Motor 23850 brushless motor embodies the zenith of propulsion innovation, meticulously engineered as an enhanced solution for large drones, UAVs, paramotors, paragliders, cargo drones, and multirotor systems. Optimized for peak performance, this motor pairs flawlessly with a 55-inch 3-blade propeller and a 24S 300A motor controller, delivering precise handling and efficient power allocation.

Boasting an exceptional maximum thrust of 98kg, it has earned its place as a top-selling motor for large drones, making it the preferred choice for heavy-duty aerial operations requiring robust power and reliability.

Tech Specs

Model 23850
Type Brushless DC motor
KV 35
Suggested ESC 24 S 300 A
Suggested Propeller 55 inch 3-blade

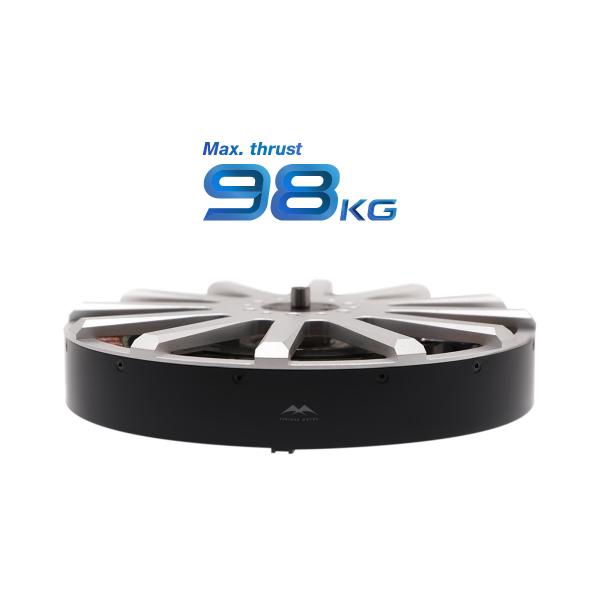

Max. Thrust 98 kg
Max. Torque 80 N·m
Max. RPM 2420
Li-Po 14 S ~ 24 S
Max. Voltage 90 V
Max. Current 280 A
Max. Power 20 kW
Motor Dimension 238 mm * 50mm
Weight 4.5 kg
Application Multi rotor drone, heavy lift drone, paramotor

Details

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Heavy Payload 23850 Brushless DC Motor 98kg Thrust For Drone 90V 35KV Durable Design For Industrial Lifting Tasks
