Degreasing Spray Drying , Aluminum Brazing Furnace , Controlled Atmosphere

Overview

Aluminum brazing furnace is designed for the continuous brazing of the following products such as aluminum water radiator, oil cooler, intercooler, serpentine type condenser, evaporator, parallel flow condenser, laminated type evaporator, air cooler of power station under nitrogen atmosphere etc.

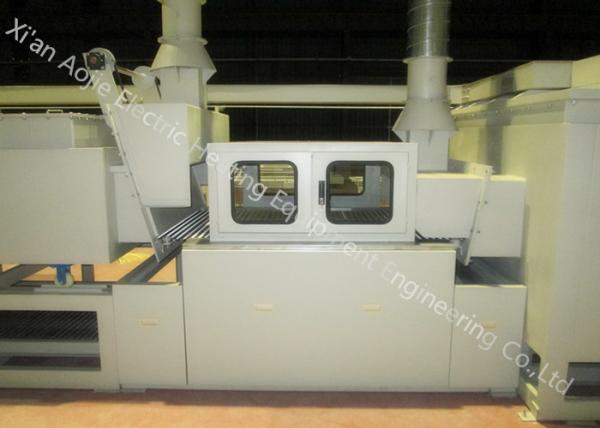

This mesh-belt furnace consists of high temperature furnace, high temperature mesh belt, mesh belt drive mechanism, protective gas generator and electric control system. The work pieces are moved with the mesh belt and heated in the high temperature muffle, and then goes into the cooling section of the muffle (gas cooling chamber), it will be fast cooling under the effect of the heat transfer through water jacket and the airflow brushing.

Features

• High performance refractory material is adopted to ensure the superior insulation feature of the furnace with low energy consumption while empty load. The excellent designing and manufacturing of the gas distribution system and atmosphere curtain of the furnace ensure the low consumption of purified nitrogen and save the furnace atmosphere so as to decrease the production cost.
• Advanced frequency conversion mesh-belt speed control system realizes stepless speed change transmission and precise control runtime of workpieces in each heating zone so as to realize the precise heating curve of aluminum brazing.
• High precision oxygen analyzer has provided an advanced means for measure the atmosphere of the aluminum brazing furnace timely and accurately.

About Aojie

Started in early 1990’s Xi’an Aojie designed and manufactured its first mesh-belt controlled atmosphere continuous brazing furnace. In the years that have followed, Xi’an Aojie has committed to independent research and development of advanced brazing furnaces and heat treat equipments. Nowadays, Aojie mesh-belt continuous controlled atmosphere brazing furnace has successfully replaced imported equipment due to its unique advantages. Aojie mesh-belt controlled atmosphere brazing furnaces are widely used for brazing parts of stainless steel, carbon steel, aluminum, brass and copper, etc. by the industries of automobile, aero-space & aviation, and household appliances, etc.

Xi’an Aojie is a full service supplier, beginning with initial technical services such as feasibility studies, facility analysis and planning, continuing through equipment manufacturing, system installation, furnace start-up and operator training.

Aojie is always untiringly seeking to provide dependable equipment and technical support for customers to manufacture high-quality and low-cost products.

About Aojie-Made

Aojie is the No. 1 in domestic market share of fluid torque converter brazing.

Aojie is the No. 1 in domestic market share of stainless steel fuel vehicle distributor brazing.

The outstanding achievements have attracted vast attention in the field. Aojie keeps on making technical communication and cooperation with well-known enterprises all over the world.

Based on high technology, insisting on developing in the field of Brazing and Heat Treatment is the most important principle of Aojie all along. Aojie boasts an abundance of professional technicians with profound expertise. Striving for perfection and innovation, Aojie has obtained many invention patents and utility patents.

Aluminum Brazing Furnace Parameters
