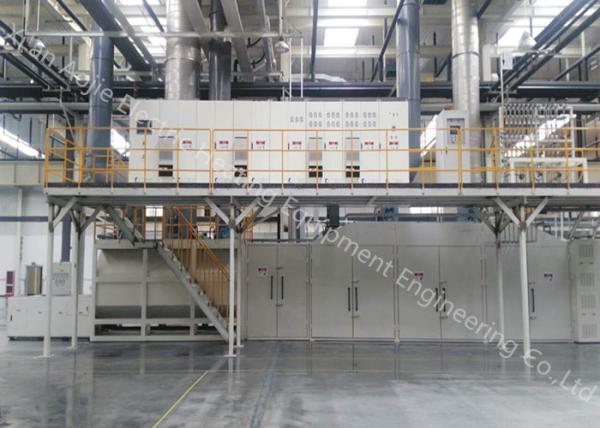

Aluminum Radiator Brazing Furnace 8150mm / 10000mm Standard Muffle Length
Aluminum Radiator Brazing Furnace 8150mm / 10000mm Standard Muffle Length
Specifications
Brand Name :
Aojie
Model Number :
AJLL800, AJLL 1000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets / year
Delivery Time :
15 working weeks - 40 working weeks
Packaging Details :
It depends on the size and dimension of the equipment.
Mesh-belt width (mm) :
800, 1000
Effective using space (W×H)mm :
700×200, 900×200
Standard Muffle Length (mm) :
8150,10000
Total Power (kw) :
530, 730
N2Consumption (m3/h) :
50,60
Payment Method :
Telegraphic Transfer
Delivery Period :
15 working weeks - 40 working weeks
Description

Aluminum Radiator , Aluminum Brazing Furnace , Condenser, Evaporator, Oil Cooler

Overview

Aluminum brazing furnace is a kind of brazing equipment for the aluminum radiator suitable for the brazing process of aluminum radiator, condenser, evaporator, oil cooler and other products. It is widely used in electronic, appliances, aerospace, military equipment, wind power equipment fields and so on.

Features

  • High performance refractory material is adopted to ensure the superior insulation feature of the furnace with low energy consumption while empty load. The excellent designing and manufacturing of the gas distribution system and atmosphere curtain of the furnace ensure the low consumption of purified nitrogen and save the furnace atmosphere so as to decrease the production cost.
  • From the stirring and spraying of the brazing agent, to drying, brazing, cooling of the of the product are continuous and automatic, which ensures the mass production reliable and saves the maximum cost.
  • All key components are procured globally to ensure the reliability of aluminum brazing furnace.
  • Advanced frequency conversion mesh-belt speed control system realizes stepless speed change transmission and precise control runtime of workpieces in each heating zone so as to realize the precise heating curve of aluminum brazing.
  • Water cooling section realizes the cooling temperature could be controlled and satisfy the requirement of process curve so as to make the metallurgical structure of the joints fine and compact.

Aluminum Brazing Furnace Parameters

Model

Mesh-belt Width(mm)

Effective Using Space

(W×H)mm

 Standard Configuration Total Power

N2Consumption

m³/h

 Cooling Water Consumption
AJLL800 800 700×200 Degreasing-Spray-Drying-Brazing 530 50 6
AJLL1000 1000 900×200 730 60 7
