Product Description:

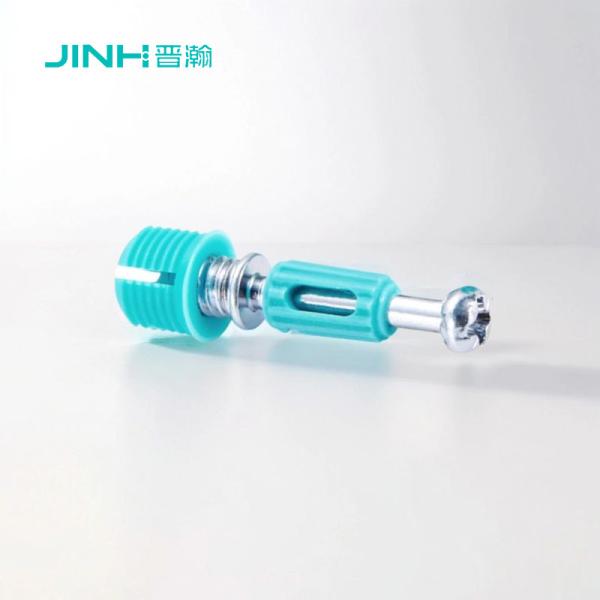

Item No.: JH-2159, the High Precision Furniture Cam Screw (Minifix Bolt) is an advanced fastener designed for the robust assembly of wooden furniture components. With a total length of 32mm, this cam screw features a cold-drawn carbon steel shaft and a nylon expansion bolt with a 4-petal design that facilitates easy expansion. The accompanying plastic dowel has longitudinal grooves to enhance grip and stability. The surface of the metal rod undergoes eco-friendly blue zinc electroplating for corrosion resistance and aesthetic appeal.

Key Features

• Material Strength & Durability: Constructed from cold-drawn carbon steel, the metal shaft ensures superior strength and durability, while the nylon expansion dowel and plastic sleeve provide excellent hold without damaging the wood.
• Enhanced Grip: The 4-petal design of the plastic expansion bolt allows for optimal expansion within the drilled hole, ensuring a tight fit and preventing loosening over time.
• Corrosion Resistance: The blue zinc electroplating not only gives the cam screw an attractive finish but also protects against rust and corrosion, extending the product's lifespan.

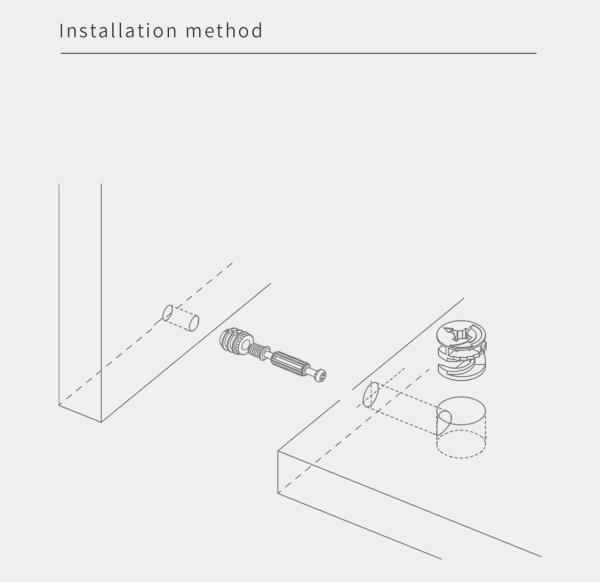

• Ease of Use: The combination of the metal rod, expansion dowel, and sleeve makes installation straightforward and efficient, requiring minimal effort for a secure connection.
• Environmental Consideration: The use of eco-friendly materials and processes in the production of the JH-2159 cam screw demonstrates a commitment to sustainability and environmental responsibility.

Applications

The JH-2159 High Precision Furniture Cam Screw is ideally suited for the assembly of modular furniture, particularly where boards or panels need to be joined securely. It is especially effective for connecting furniture boards with a thickness of 15mm or more, such as in the construction of cabinets, shelves, desks, and other types of board-based furniture. Its strong holding power and ease of installation make it a preferred choice for both DIY enthusiasts and professional furniture manufacturers looking for reliable and durable fastening solutions.
