26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet
26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet
26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet
26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet
Specifications
Brand Name :
KAMA
Model Number :
HK1000/2000/3000
Place of Origin :
GUANGDONG
MOQ :
500 SETS / SPEC
Payment Terms :
T/T
Delivery Time :
normally 30 days
Packaging Details :
1SET/BOX
Product name :
Cabinet Lift System
Model type :
HK1000/2000/3000
Opening Angle :
107°
Door opening force :
5-30N
Door thickness :
16-26mm
Door height :
250-650mm
Top panel height :
SOB= 16-26
Door weight :
2-10 kgs
Description

NEW PRODUCT- LIFTING SYSTEM

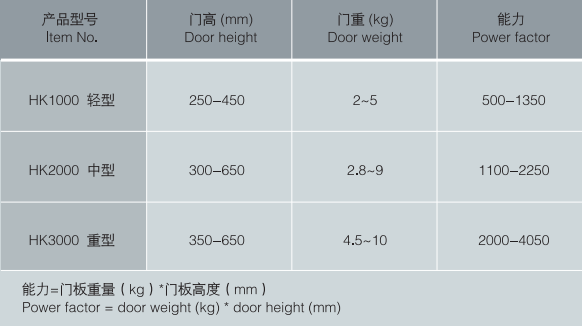

Model type HK1000/HK2000/HK3000
Opening Angle 107°
Door opening force 5-30N
Door thickness 16-26mm
Door height 250-650mm
Top panel height SOB= 16-26
Door weight 2-10KGS
Adjustment function 6 directions

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

FEATURES:

-- Stops at any angles once the door opens at 60° ± 15°

-- Door opening force is within 5-30N

-- Door plate clcoses automatically at 40° ± 15°

-- Applicable thickness range of door: D= 16mm-26mm

-- Door height: 250mm-650mm

-- Top panel height: SOB= 16-26

-- Loading: the maximum door weight is 10kgs

-- Tool- free assembly

-- Open and close gently, with double buffering function

-- Six direction adjustment of door

-- No hinges are necessary

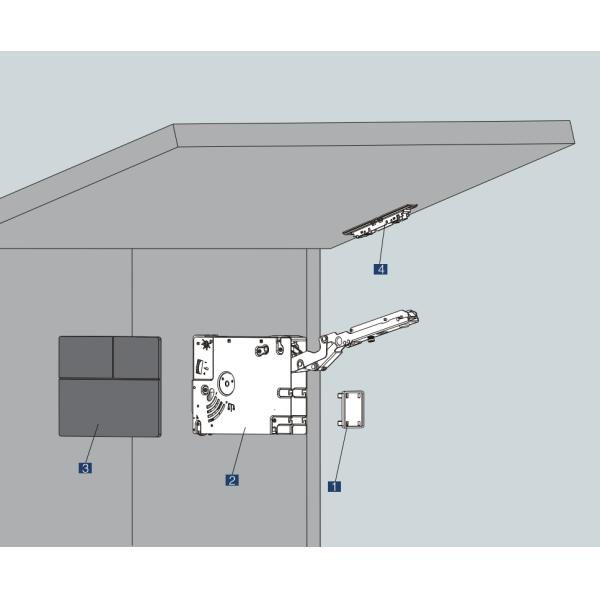

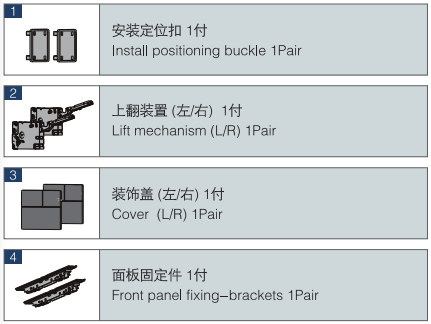

1 SET of Lift Sytem contains:

-- 1 pair of Install positioning buckle

--1 pair of lift mechanism (L/R)

-- 1 pair of cover (L/R)

-- 1 pair of front panel fixing brackets

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

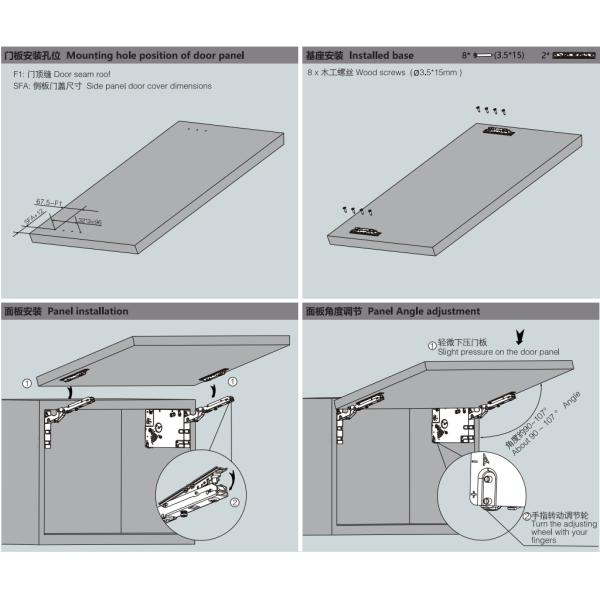

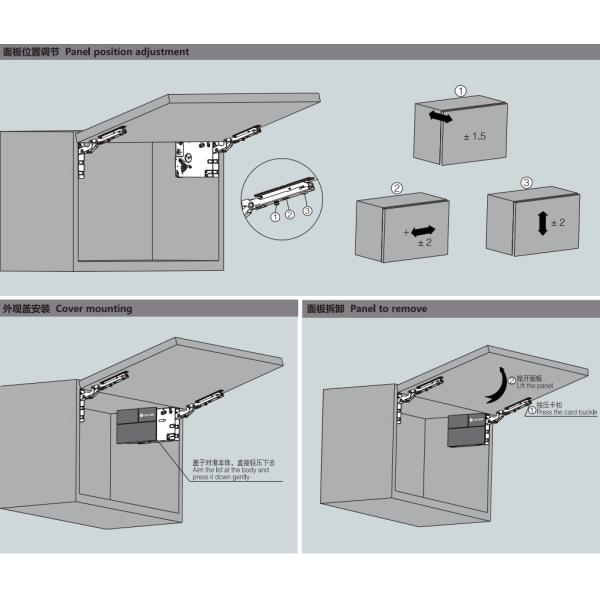

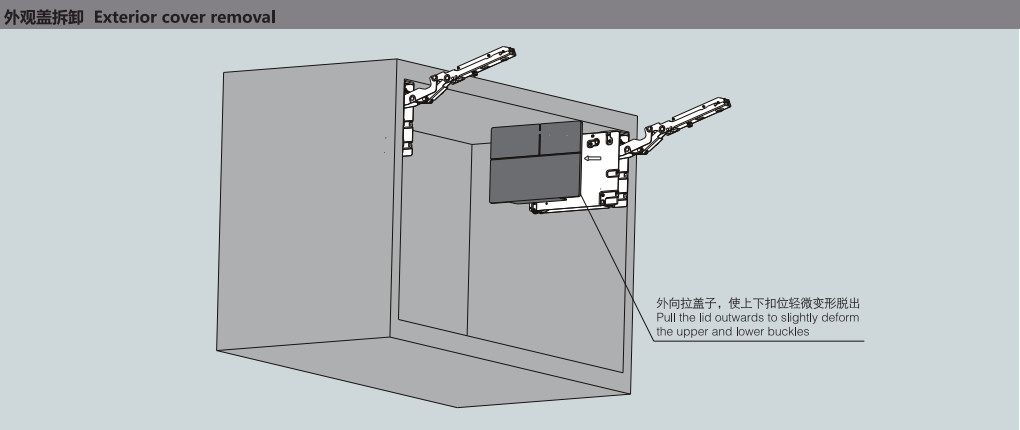

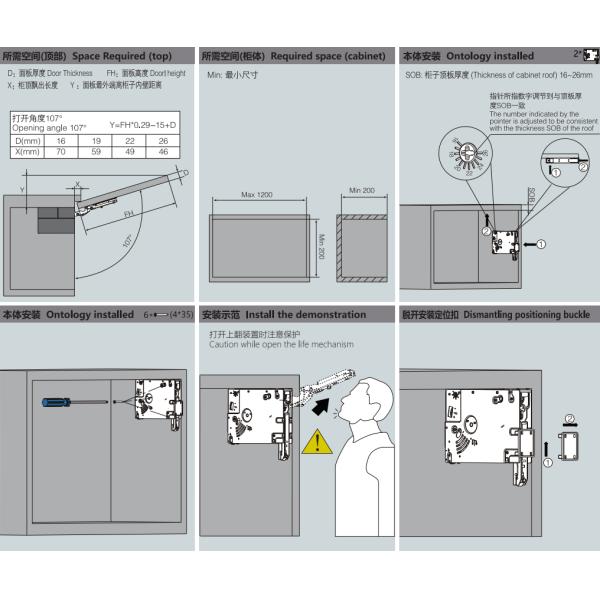

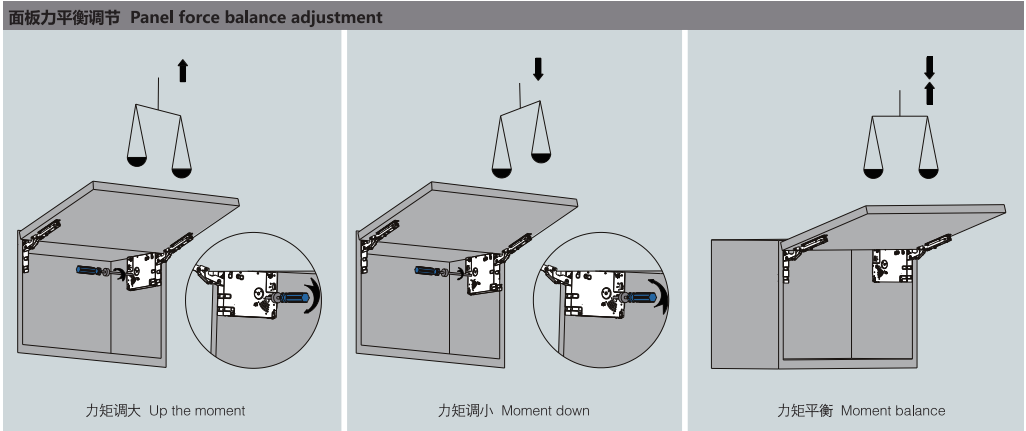

INSTALLATION INSTRUCTION:

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet

26mm Thickness Cabinet Door Lift System Heavy Duty 6 Directions Adjustment Soft Quiet
