Class 2 Gas Spring Cylinder Bar Chair Chrome 260mm Hydraulic Adjuster Stable
Class 2 Gas Spring Cylinder Bar Chair Chrome 260mm Hydraulic Adjuster Stable
Specifications
Brand Name :
NANTAI OR CUSTOMIZED
Model Number :
260
Certification :
BIFMA5.1 SGS TUV
Place of Origin :
CHANGZHOU ,CHINA
MOQ :
500 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C Negotiable
Supply Ability :
1200000 pieces per month
Delivery Time :
7-15 working days
Packaging Details :
1. 1pc per poly bag 20pcs per carton 3. 22000pcs-25000 pcs per 20GP
Products Name :
Gas Springs Lift
Stroke :
260
Material :
Steel
Usage :
Bar Chair
Packing :
10pcs/CTN 20pcs/CTN
Color :
Chrome
Pressure :
380-440N
Certifiacte :
SGS And TUV
Button :
White/ Orange/ Green/ Blue
Bottom Dealing :
Welding/ Punched
Description

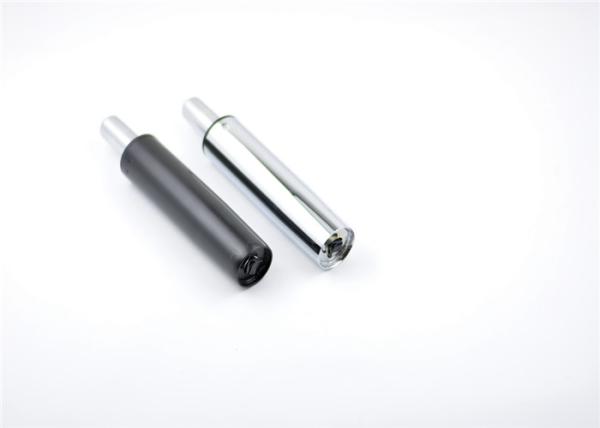

Class 2 Gas Spring Cylinder Bar Chair Chrome 260mm Hydraulic Adjuster Stable

260mm gas springs are designed to adjust the height of bar chairs and the position of bar chairs. it can be rotated 360° smoothly. And its load capacity is 75kg-300kg, We also can offer any color of surface you need, QPQ is a kind of special treatment for inner tube, it is used for the high-quality chairs.

Gas Spring Cylinder For Swivel Bar Chair Products Festures:

  • The extended Length: 705mm
  • Stroke: 260mm
  • Outer tube length: 385mm
  • Froce:380mm-440mm
  • Application: Office Chair
  • Certification: BIFMA5.1 SGS TUV
  • Class: Class1/2/3/4
  • Class 3: Inner Tube Φ28 thickness is 2.0mm, Outer Tube Φ50 thickness is 1.2mm
  • Quality Guarantee: 3-5 years
  • Button color: white, orange,blue according to your reuquest
  • Package: 1pcs in a poly bag, 20pcs in one carton, 60ctns in one pallet
  • MOQ: 500pcs
  • Bottom Dealing: Punched or Welding
  • Surface: Inner tube is QPQ treatment, Outer tube is Black

Gas Spring Cylinder For Swivel Bar Chair Highlights:

Reliable seal performance
Defect rate of less than 3‰
Smooth and noiseless up-and-down function
Reliable product quality with 16 years manufacturing experience

Gas Spring Cylinder For Swivel Bar Chair Company Introduction:

Changzhou Nantai gas spring Co., Ltd. was founded in 2004, which designs and researches, manufactures, sells and offers overall after-sell service independently. Our products cover gas spring for swivel chairs, lockable gas spring and compression gas spring for furniture. We have achieved long-term cooperation with more than 30 countries all around the world. Nantai keeps developing, and has a high-tech, high-quality management team, constantly improves our products quality according to the demand of market. Our advanced product quality gets a good reputation among our domestic and foreign customers. Quality Management System ISO9001:2016, Germany TUV LGA (DIN4550) and BIFMA5.1 SGS are our certifications.


Gas Spring Cylinder For Swivel Bar Chair Products Drawing and Pic:


Class 2 Gas Spring Cylinder Bar Chair Chrome 260mm Hydraulic Adjuster Stable

C: Stroke length (mm)
L: Extended length (mm)
V: Outer tube length(mm)
X+Y: Taper length (mm)

MODEL
L (MM)
C (MM)
V (MM)
X (MM)
Y (MM)
(F2)N
40MM
230
40
145
58
10
460
60MM
275
60
160
58
10
460
80MM
305
80
175
58
10
460
100MM
347
100
195
58
10
440
120MM
392
120
215
58
10
420
140MM
414
140
225
58
10
420
160MM
450
160
250
58
10
420
180MM
525
180
275
58
10
420
200MM
545
200
295
58
10
420
230MM
680
230
370
58
10
420
260MM
705
260
385
58
10
420
