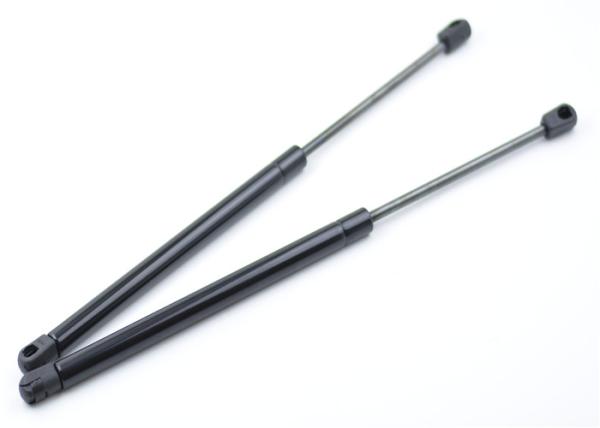

Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length
Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length
Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length
Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length
Specifications
Brand Name :
NANTAI OR CUSTOMIZED
Model Number :
NT-021
Certification :
SGS RoHS, ISO9001
Place of Origin :
CHINA
MOQ :
500
Price :
USD 2.06-2.98PIECE
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000 PCS per month
Delivery Time :
7-15 working days
Packaging Details :
1pc/poly bag; 50pcs/ctn
Name :
Trunk Support Gas Lift Strut
Length :
580mm
Force :
300N
Filled Gas :
Nitogen Gas
Material :
Steel
Load Type :
Compression
Style :
Cylinder
Surface :
Black
Usage :
Rear Trunk
Description

Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length

Hydraulic Gas Lift Feature:

1. Gas: Nitrogen(99.999%).

2. Long life :150,000 cycle life time,one cycle means one up and one down .
3. Material: finishing rolling seamless steel tube for cylinder, steel for piston rod.
4. Surface: spray painting for cylinder, QPQ for piston rod.
5. Color : black, or as your requirement.
6. Operating Temperature Range: -15~+80℃(5~176℉)as standard; -50~+80℃(-58~+176℉) or -15~200℃(5~392℉) are available.

Trunk Support Gas Lift Strut Features:

It plays a role in buffering, the use of more stable, and can work in the harsh environment of low temperature.

Certficate Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length
Application

Industrial equipment series, cars series, train series, furniture hardware, medical machine, sport machine, engineering machinery, bus station lamp box, etc.

We also can provide for Army vehicles, Nuclear submarine, metro, plane,Desert refining machinery, wall bed.
Material Steel / stainless steel / Top Japanese seamless tube
Color Silver / black / others
Connector Ball connector / metal eye / clevis and so on.
Connector fittings be made as your requirement according to different usage & different areas.
Advantage

1.Long use lifetime guaranteed , pass 30,000 cycles life test, force attenuation less than 13% , 144 hour salt spray testing.
2.Excellent paint surface. Surface finish: chromed-plate, powder paint, QPQ , Galvanized, oil anti-rust, etc.
3.We can supply samples for free.

Length can be cut upon your request. The size can be made according to the customer requirement.

Introduction:

The principle of grooved/dynamic gas spring is to process a damping groove from the inner wall of the cylinder and change the stretching speed of the gas spring through the change ofthe section of the damping groove.

Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length

Gas Spring Lift Specification

Rod Dia.

(mm)

Pipe Dia.

(mm)

Extended

(mm)

Stroke

(mm)

Force F1

(N)
6 15 95-600 20-250 50-400
8 18 95-800 30-350 50-750
9 18 95-800 30-350 50-950
10 22 150-1200 50-550 100-1200
12.4 22 150-1200 50-550 100-1350
12 27 150-1500 50-700 100-1500
14 28 150-1750 50-850 200-2500

COMPANY HISTORY

Changzhou NANTAI Gas Spring Co. Ltd is the professional manufatcurer of hydraulic extension office gas lift struts for office chair.

We are located in Changzhou city, Jiangsu province, China. We are a professional manufacturer of hydraulic gas spring, chrome gas spring, gas spring for office chair.

Established in 2007, we now have more than 100 employees and 10000 square meters workshop. We passed the international quality management system certificate ISO9001:2008, American BIFMA X5.1 testing certificate and Germany TUV LGA(DIN4550) certificate.

Here we invite you to come in!

Ball Connector Gas Lift Strut Picture

Cylinder Compression Gas Spring 300n For Car Trunk Support 580mm Length
