Specifications
Brand Name :
Tianrui
Model Number :
P01-i2, P01-i4, P01-X3
Certification :
VDE CQC
Place of Origin :
China
MOQ :
2000pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :
1000000PCS per Month
Delivery Time :
5-7 work days
Packaging Details :
PE bag, Bulk
Product Name :
Quick Connecting Push Wire Connector
Rated Current :
32A, 41A
Rated Voltage :
400V/600V
Stripped Length :
12 mm
Housing :
Polycarbonate
Flammability :
94V-2
Wire Range :
18-12 AWG 0.75-4 mm2
Pole :
2 Poles, 3 Poles, 4 Poles
Clamping Unit :
Copper and Stainless Steel Spring
Application :
Lamps, Appliances, Wiring Installation
Description


Quick Fast Connecting Transparent PC Housing 400V 600V 18AWG 12AWG Push Wire Connector For Solid And Stranded Conducts


1. Product name : Quick Fast Connecting Push Wire Connector
2. Part number: P01-i2, P01-i4, P01-X3
3. Type : Push-in Wire Connectors

4. Housing : Polycarbonate
5. Flammability : 94V-2

6. Wire Range : 18-12 AWG 0.75-4 mm2

7. Pole: 2 Poles, 3 Poles, 4 Poles

8. Clamping Unit: Copper and Stainless Steel Spring

9. Application: Lamps, Appliances, Wiring Installation

Features of Quick Fast Connecting Transparent PC Housing 400V 600V 18AWG 12AWG Push Wire Connector

*Push wire connector

*For solid and stranded conductors
*Transparent housing
*Safe, fast and easy wiring

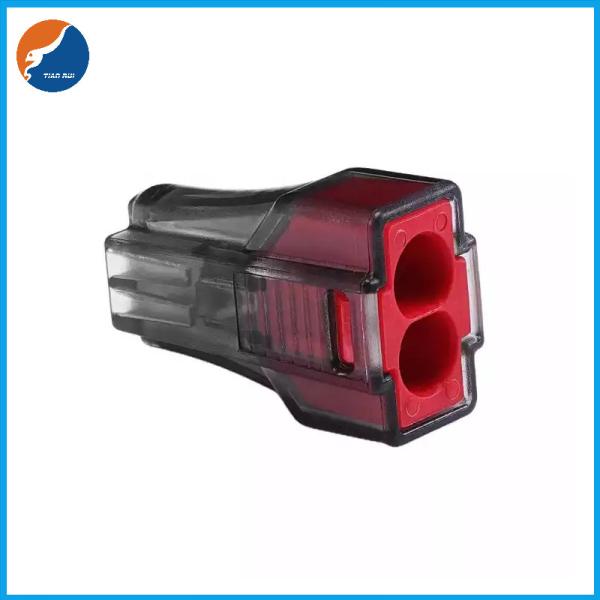

P01-i2 Quick Connecting Transparent Housing 400V 600V 18AWG 12AWG Push Wire Connector

Item no P01-i2
Electrical Data
IEC/EN
UL
Rated Voltage (V)
400
600
Rated Current (A)
32
Ambient Temperature
Polycarbonate
T105
105℃
Connection Data
IEC/EN
UL
Cross Section
Solid conductor
0.75-4mm²
AWG 12-18
Stranded conductor
1.5-4mm²
AWG 12-16
Flexible conductor
-
-
Strip length (mm)
12
Materials
Insulation Materials
Designation
Polypropylene
Polycarbonate
Flammability class
UL 94V-2
Packing Quantity
6000PCS/Carton

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

P01-X3 Fast Connecting PC Housing 400V 600V 18AWG 12AWG Push Wire Connector

Item no P01-X3
Electrical Data
IEC/EN
Rated Voltage (V)
400
Rated Current (A)
41
Ambient Temperature
Polycarbonate
T105
Connection Data
IEC/EN
Cross Section
Solid conductor
2.5-6mm²
Stranded conductor
2.5-6mm²
Flexible conductor
-
Strip length (mm)
12
Materials
Insulation Materials
Designation
Polycarbonate
Flammability class
UL 94V-2
Packing quantity
2000PCS/Carton

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

P01-i4 Fast Connecting PC Housing 400V 600V 18AWG 12AWG Push Wire Connector

Item no P01-i4
Electrical Data
IEC/EN
UL
Rated Voltage (V)
400
600
Rated Current (A)
32
Ambient Temperature
Polycarbonate
T105
105℃
Connection Data
IEC/EN
UL
Cross Section
Solid conductor
0.75-4mm²
AWG 12-18
Stranded conductor
1.5-4mm²
AWG 12-16
Flexible conductor
-
-
Strip length (mm)
12
Materials
Insulation Materials
Designation
Polypropylene
Polycarbonate
Flammability class
UL 94V-2
Packing Quantity
4000PCS/Carton

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts
