Specifications
Brand Name :
Tianrui
Model Number :
FT06-4 FT06-4W
Certification :
VDE CQC
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :
1000000PCS per Month
Delivery Time :
5-7 work days
Packaging Details :
PE bag, Bulk
Product Name :
4 Pole Fuse Terminal Block
Rated Current :
6.3A
Rated Voltage :
250V
Rated Temperature :
-40°C to 110°C
Fuse Size :
5x20mm
Fire Rating :
UL 94V-2
Color :
Gray
Pole :
4 Poles
Type :
Fuse Block
Packing :
400PCS
Description

Gray Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

1. Housing : Polyamide 6/6 94V-2 grade

2. Metal Part : nickel plated, metal-alloy insert

3. Terminal Screw : M3 X 6 zinc plated

4. Earthing Screw : M3 X 14 zinc plated

5. Voltage/Ampere :

- Fuse Holder : 250V/6.3A

- Terminal : 450V/32A

6. Temperature : -40℃ to 110℃

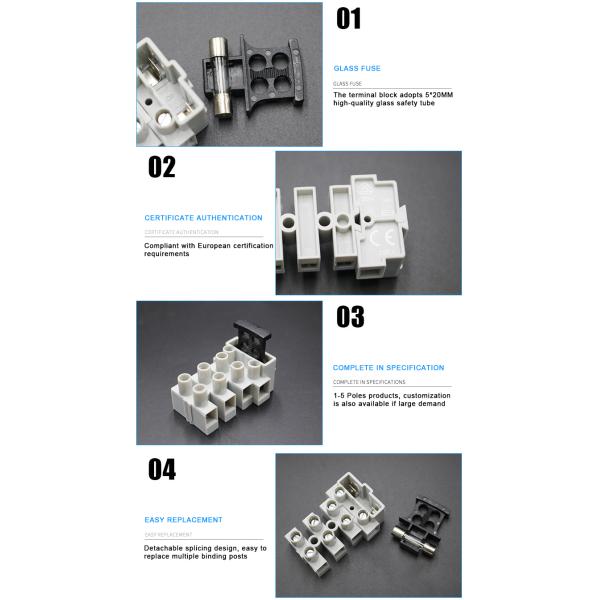

Features of 4 Pole Pin Fuse Holder Terminal Block

- European Standard fused terminal for 5 x 20mm EU-fuse

- Choice of 1-5 poles; interlocking fused terminals

- With / without Earth-Screw or Anti-Rotation Spigot

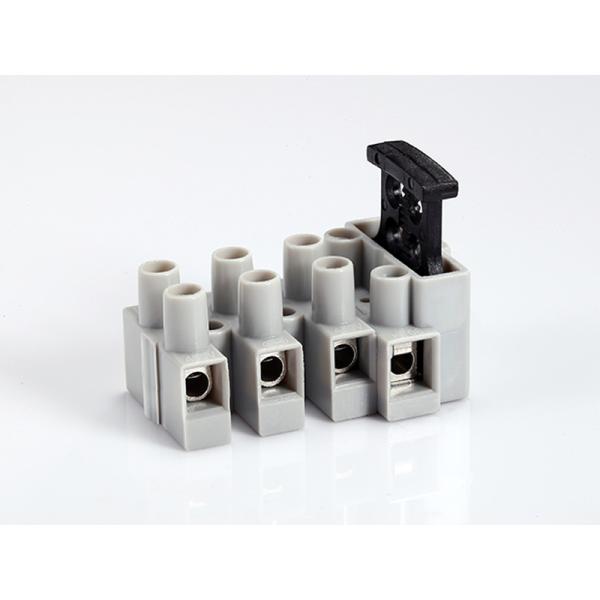

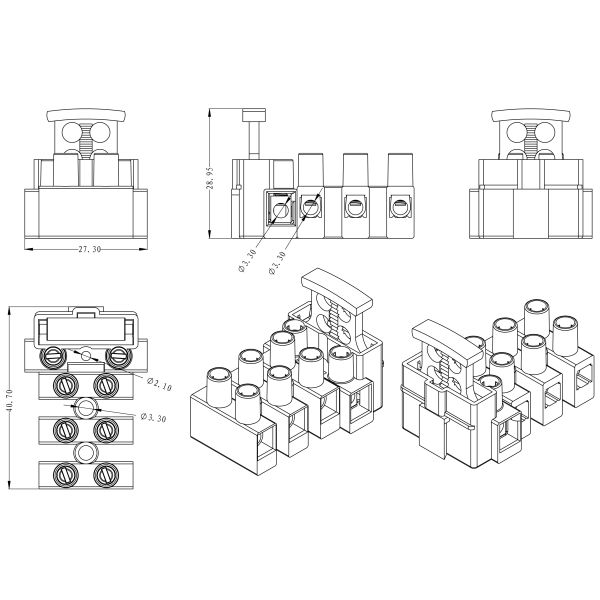

FT06-4 4 Pole Pin Fuse Holder Terminal Block

Model number FT06-4
Electrical parameters
IEC/EN
Fuse Holder Terminal
Rated voltage(V) 250 450
Rated current(A) 6.3 32
Operating temp Polyamide 66(V-2) T55
Connection parameters
IEC/EN standard
Connection capacity Solid core wire 2.5-4.0mm² 0.5-4.0mm²
Stranded wire 2.5-4.0mm² 0.75-4.0mm²
Flexible wire 2.5-4.0mm² 0.75-4.0mm²
Stripping length (mm) 7-8
Wiring Screw locking
Screw size M3
Repeatable wiring √
Monopolar/Multipolar Multipolar
Pole 4
Product fixing method Screw
Materials
Insulation materials Material Polyamide 66
Fire rating UL 94V-2
Clamps Copper
Matching product
Tube fuse 5x20mm
Packing quantity
400

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

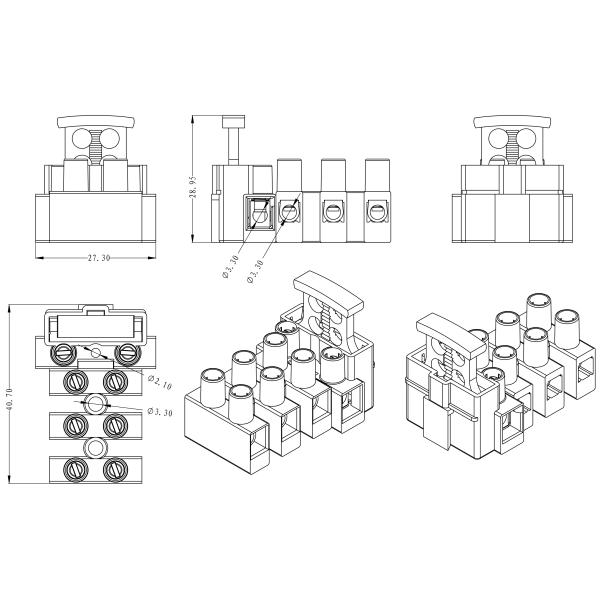

FT06-4W 4 Pole Pin Fuse Holder Terminal Block

Model number FT06-4W
Electrical parameters
IEC/EN
Fuse Holder Terminal
Rated voltage(V) 250 450
Rated current(A) 6.3 32
Operating temp Polyamide 66(V-2) T55
Connection parameters
IEC/EN standard
Connection capacity Solid core wire 2.5-4.0mm² 0.5-4.0mm²
Stranded wire 2.5-4.0mm² 0.75-4.0mm²
Flexible wire 2.5-4.0mm² 0.75-4.0mm²
Stripping length (mm) 7-8
Wiring Screw locking
Screw size M3
Repeatable wiring √
Monopolar/Multipolar Multipolar
Pole 4
Product fixing method Screw
Materials
Insulation materials Material Polyamide 66
Fire rating UL 94V-2
Clamps Copper, stainless steel (wire shrapnel)
Matching product
Tube fuse 5x20mm
Packing quantity
400

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

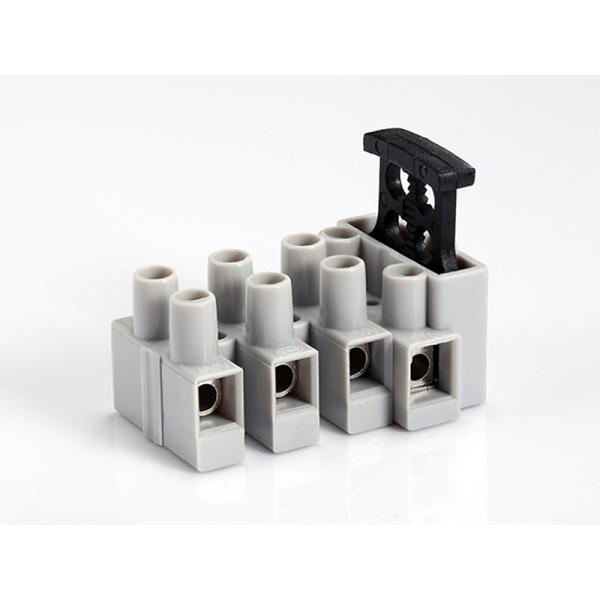

Pictures of 4 Pole Pin Fuse Holder Terminal Block

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

Application of 4 Pole Pin Fuse Holder Terminal Block

Scope of application: connecting parts of single or multi-strand wires such as electromechanical, electrical control, power supply, home appliances, lighting, machinery, etc.

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector

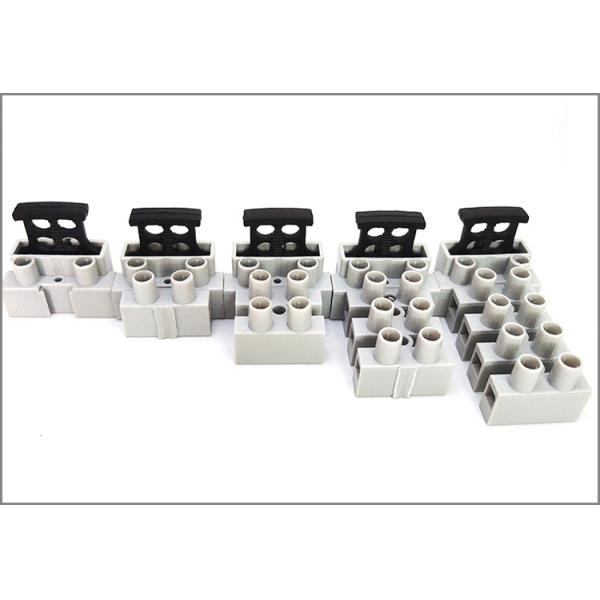

All Kinds of Fuse Terminal Blocks

Plastic Electrical Screw Feed Through 4 Pole Pin Fuse Holder Terminal Block Connector
