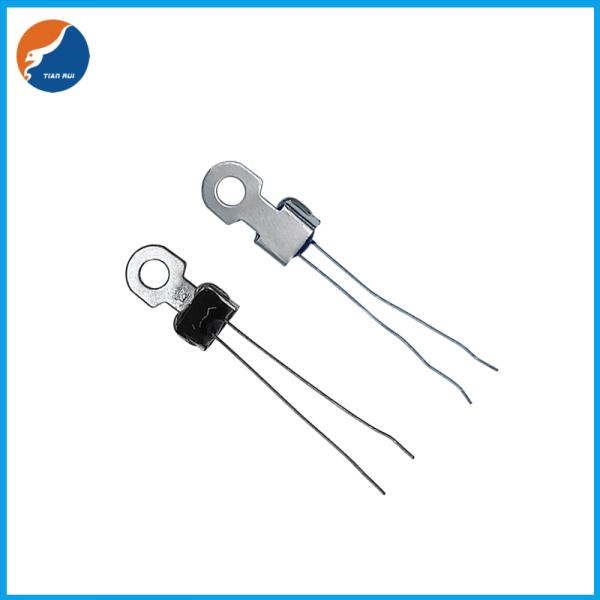

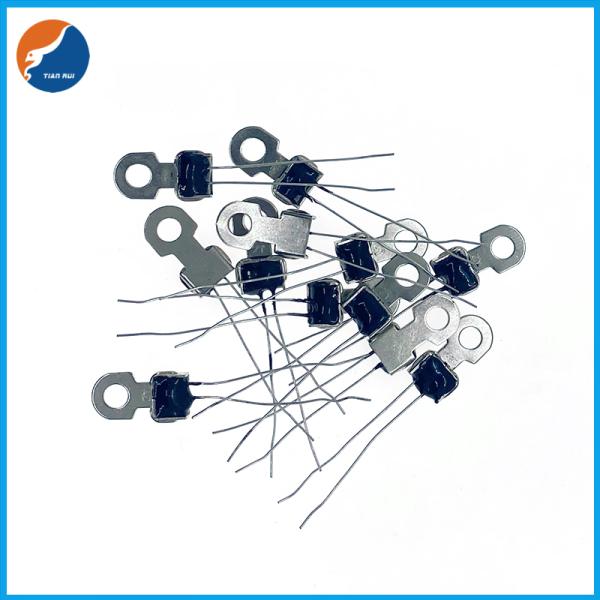

Epoxy Resin Cross Screw On Limit Temperature Sensor PTC Thermistor 100 330 Ohms 80C 110C 30V

PTC thermistors as limit temperature sensors, which can replce TDK Epcos B59052D B59052D1080A40.

Speficiation of Limit Temperature Sensor PTC Thermistor

Electrical Performance of Limit Temperature Sensor PTC Thermistor

Features of Limit Temperature Sensor PTC Thermistor

Sensor with epoxy resin coating
Tinned leads
Metal tag for easy mounting
Lead-free terminals
Characteristics for sensing temperatures
Metal tag permits good thermal coupling and thus short response time
RoHS-compatible

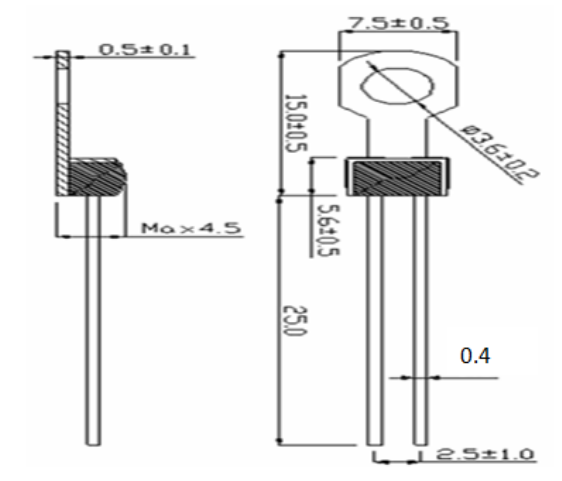

Dimension of Limit Temperature Sensor PTC Thermistor (Unit mm )

Handling of PTC Thermistor Sensor

PTCs must not be dropped. Chip-offs must not be caused during handling of PTCs.
The ceramic and metallization of the components must not be touched with bare hands. Gloves
are recommended.
Avoid contamination of thermistor surface during handling.

PTCs must not be dropped. Chip-offs must not be caused during handling of PTCs.
The ceramic and metallization of the components must not be touched with bare hands. Gloves
are recommended.
Avoid contamination of thermistor surface during handling.

Welding of Limit Temperature Sensor PTC Thermistor

Use rosin-type flux or non-activated flux.
Insufficient preheating may cause ceramic cracks.
Rapid cooling by dipping in solvent is not recommended.
Complete removal of flux is recommended.
Standard PTC heaters are not suitable for soldering.

Storage Method of PTC Thermistor Sensor

1. In the process of storage and transportation, per stack height is not more than 4 CTN products.
2. Available with all transport method, but avoid the rain, snow of direct or indirect leaching and mechanical damage.
3. Products should be stored in the temperature of environment - 10 ℃ / + 40 ℃, relative humidity is not more than 75%,
environment should not have acid, alkali and corrosion gas or radioactive source.
4. Period of Storage:1 year.
