Specifications
Brand Name :
TIANRUI
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Visa, Mastercard
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1PCS/Bag
Product Name :
Boat Marine RV Battery Switch
Rated Current :
300Amps DC
Intermittent Current :
350Amps DC
Instantaneous Current :
1200Amps DC
Rated Voltage :
12V-60V DC
Material :
ABS+Copper
Dielectric Strength :
1500VAC/1min
Electrical Life :
10000 Times
Stud :
M8
Weight :
512G
Rotation Angle :
90 Degree
Application :
RV, Yacht, Van, Truck, Caravan
Description

Truck High Current 300A Car Power Off Switch Leak Proof Battery Switch Power Main Switch

This battery switch is the most compact selector switch available on the market. It includes the removable side plates and back cover. This ignition protected battery selector switch offers a simple and economical way to separating two batteries. 3 x 5/16" terminal stud is tin-plated copper. Suitable for recessed or surface-mounting.


Specification of Truck High Current 300A Car Power Off Switch Leak Proof Battery Switch Power Main Switch

•M8 studs

•Maximum Continuous Current - 250 Amps

Maximum Peak Current - 2500 Amps for 10 seconds

•Comes complete with metal key and waterproof cover.

•Material:Metal

Switch Type
Battery Switch
Continuous Rating 300Amps DC
Intermittent Rating
350Amps DC

Cranking Rating
1200Amps DC
Voltage Rating 12V-60V DC
Usage Power Off Switch
Electrical Life 10000 Times
Stud M8
Contact Resistance
50m ohm Max
Insulation Resistance
DC 1500V 100M ohm Min
Dielectric Strength
AC 1500V 1 minute
Operation Temperature
-30°C~+60*C

Feature of Truck High Current 300A Car Power Off Switch Leak Proof Battery Switch Power Main Switch

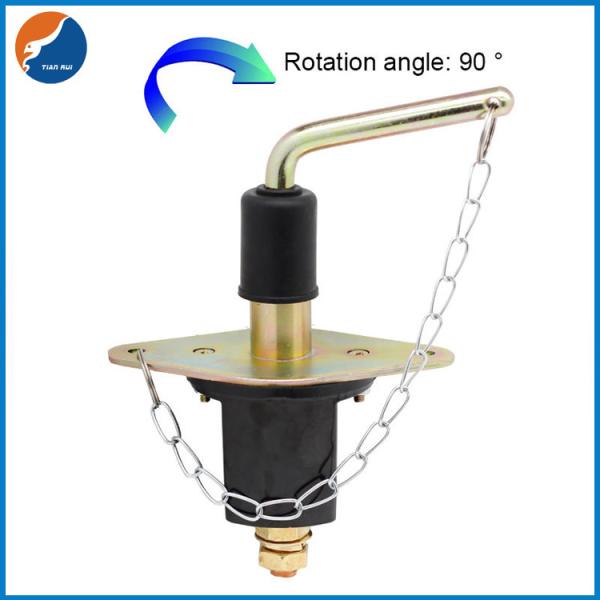

Battery disconnector key switch The main switch rotates 90°, and the battery can be connected or disconnected immediately.

The button is locked in the "on" position and in the "off" position.


Compatibility of Truck High Current 300A Car Power Off Switch Leak Proof Battery Switch Power Main Switch
•Suitable for 12 or 24 Volt Systems; Suitable for all Vehicles
Package Contents of Truck High Current 300A Car Power Off Switch Leak Proof Battery Switch Power Main Switch

•1X Isolator Switch

•1X metal key


Warranty of Truck High Current 300A Car Power Off Switch Leak Proof Battery Switch Power Main Switch

The product is guaranteed for 12 months from the date of delivery under normal condition.

Function of 3 Position DC12V 200A Marine Auto Truck Yacht Power Protection Kill Isolator Battery Switch

Prevent leakage, protect the power supply, disconnect the battery safely.

Application of 3 Position DC12V 200A Marine Auto Truck Yacht Power Protection Kill Isolator Battery Switch

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices
