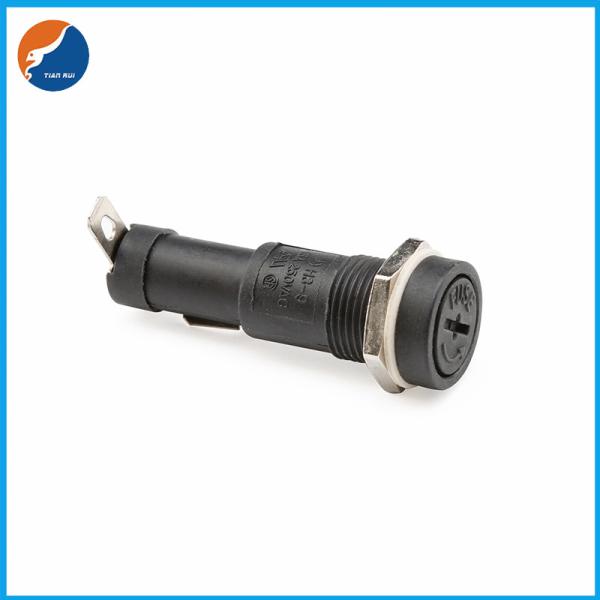

H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
Specifications
Brand Name :
Tian Rui
Model Number :
H3-9
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1000PCS/Bag
Rated Current :
10A
Rated Voltage :
250V
Fuse Size :
Fuse 6X30 mm
Material :
Bakelite
Terminal :
Nickel or tin plated copper alloy
Type :
Solder type
Temperatue resistance :
310℃
Color :
Black
Insulation resistance :
DC 500V 100MΩ Min
Voltage breakdown :
AC 1500V 1 minute
Description

H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder

FUSE HOLDER PANEL MOUNT TYPE FOR FUSES 6X30 mm APPROVED

Product model: H3-9
Assembly method: vertical
Product material: Bakelite/H62
Temperature resistance : 310℃
Current range: 15A/250V AC
Assembly fuse: 6*30mm
Safety certification: Environmental standards ROHS REACH

Specification

Rated current 10A 250V
Insulation resistance at 500V DC 100 MΩ min.
Contact resistance 5 MΩ at 1A DC
Dielectric strength between the terminals for 60 seconds AC 2000 min.
Insulating body Flame retarding UL _94V0 thermoplastic material.
Contact Nickel or tin plated copper alloy

Drawing

H3-9 Screw Cap Quick Connec PCB Glass Tube Type 6x30mm Black Electrical Panel Mount Fuse Holder
