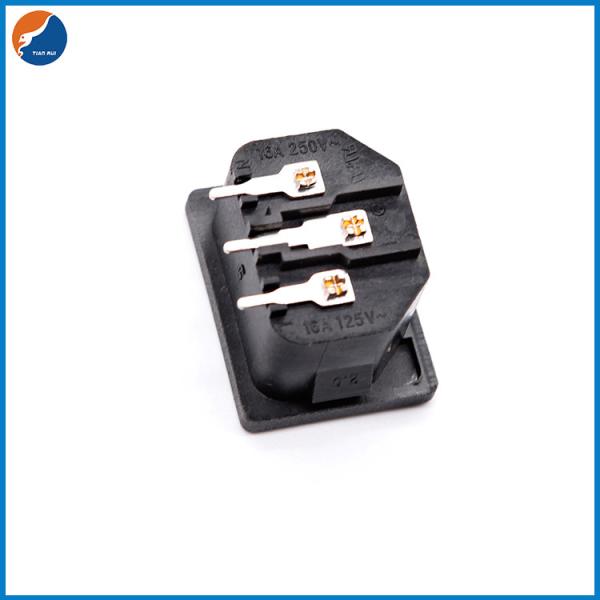

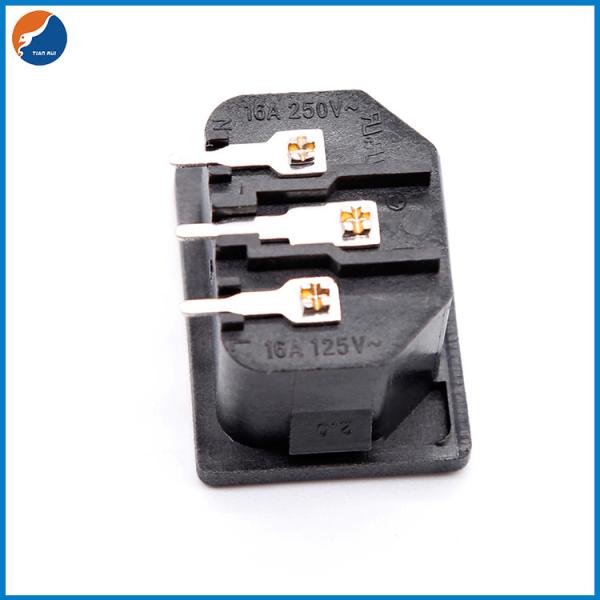

R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
Specifications
Brand Name :
Tian Rui
Model Number :
R14-A-1AB4
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1000PCS/Bag
Product Name :
Panel Mount 250V AC Power Socket
Rated Current :
10A
Rated Voltage :
250V
Material :
Bakelite
Terminal :
Nickel plated copper
Insulation Resistance :
≥ 100MΩ
Contact Resistance :
≤0.03Ω
Withstand Voltage :
AC 1500V(50HZ)/min
Temperature :
-25~85℃
Insert and Extract Force :
5-30N
Description

R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket

Specification of Panel Mount AC Power Socket

Product Name: Panel mount 250V AC power socket
Rated current,voltage: 10A 250V AC

Temperature: -25~85℃

Insert and Extract Force: 5-30N

Life: ≥ 10 million

Connection: Set Screw, Solder Free

Connector Type: C14; Terminal Number: 3

Contact Material: Copper, Pin Orientation: Vertical

Power input and output connection for all types of electrical equipment.

Insulation resistance: ≥ 100MΩ
Contact Resistance : ≤0.03Ω
Withstand Voltage: AC 1500V(50HZ)/min
Dielectric strength: ≥ 1500V AC/min
Insert and Extract Force: 5-30N

Features of Screw Secure AC Power Socket

1.small size suitable for high density mounting.

2.Much thinner and lighter than conventional products.

3.Contact sealed construction offers a highly reliable switch.

Applications of 3 PIN IEC AC Power Socket

1 automotive and appliance markets,

2 industrial process controls,

3 instrumentation,

4 electronic test equipment,

5 consumer grade products,

6 telecommunications.

Some Specific Areas Applications of Electrical AC Power Socket

· Garage door openers

· Automotive alarm systems

· Pagers

· Remote controls

· Joy sticks

· Radar detectors

· Cellular & PCS phones

· Digital phones

· Compact disc players

· Printers

Description of C14 AC Power Socket

Power outlet allow electric equipment to be connected to the primary alternating current (AC) power supply in buildings and at other sites. Electrical plugs and sockets differ from one another in voltage and current rating, shape, size, and connector type. Different systems of plugs and sockets have been standardized, and different standards are used in different parts of the world.

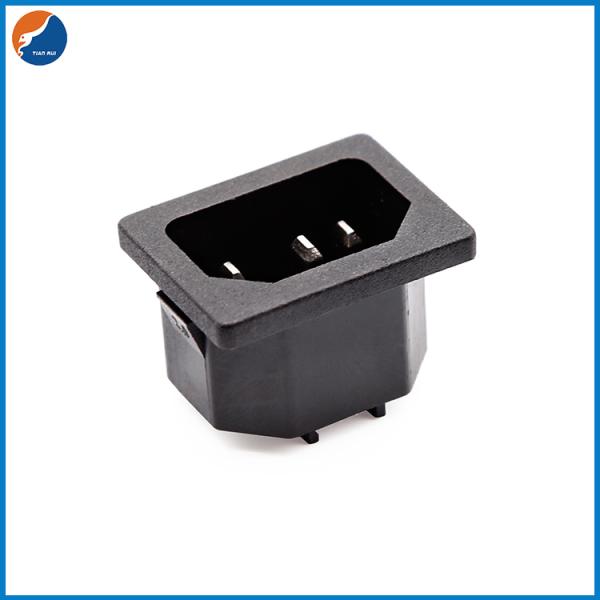

R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket

Drawing of Copper AC Power Socket
R14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power SocketR14-A-1AB4 Panel Mount Screw Secure 3 PIN IEC Electrical Plug Copper C14 AC Power Socket
