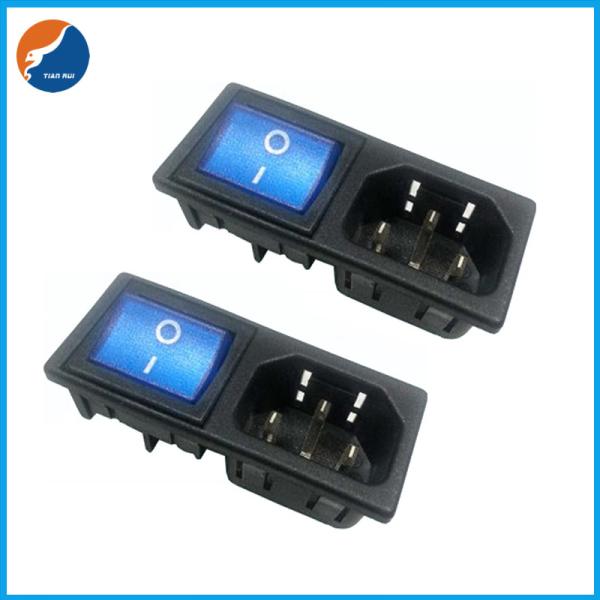

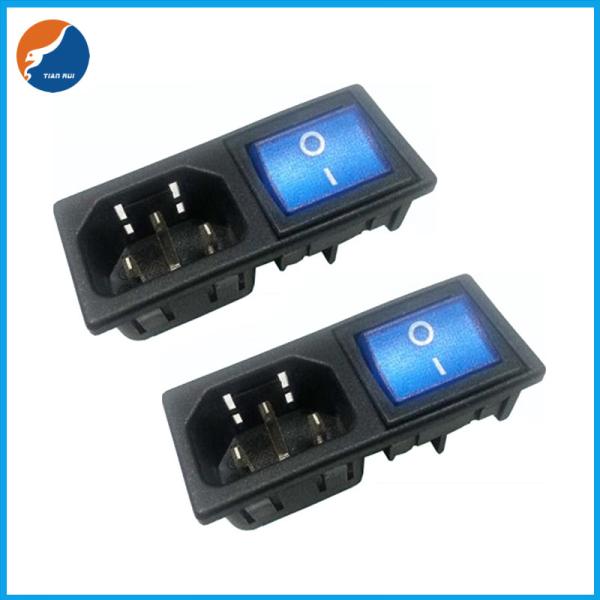

R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
Specifications
Brand Name :
Tian Rui
Model Number :
R14-B-1FB2
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1000PCS/Bag
Rated Current :
10A
Rated Voltage :
250V
Plug Type :
3 PIN IEC
Material :
Nylon
Terminal :
Copper
Shape :
Square
Insulation Resistance :
100MΩ Min
Dielectric Strength :
1500 VAC/1Min
Feature :
Easy Installation
Usage :
Widely Used
Description

R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder

Specification of Power Socket With Rocker Switch Fuse Holder


Product Name: C14 Power Socket
Material (External): Plastic, Metal
Rocker Switch Rating Voltage: 10A 250V AC or 15A 250VAC
Plug Type: 3 Pin IEC320 C14
Weight: 25g

Rated current. voltage 10A 250VAC . 15A 250VAC
Insulation resistance 100MΩ Min
Dielectric strength 1.500 VAC/1Min

Features of 10A 250AC Power Socket

1, reasonable structure design, insert bits spacing, can be used independently of each slot is not influence each other.

2, the use of high resilient phosphor bronze shrapnel, plug 100 million times without fatigue, good contact is not easy ignition.

3, carrying power, make sure the wires carrying 2500W without heat.

Application of 10A 250VAC 3 Pin C14 Power Socket

3 pin IEC320 C14 plug, 7 terminals, is used widely in lab equipment, medical devices, fitness equipment, industrial automation equipment, etc. Use only with a 250V fuse.

R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder

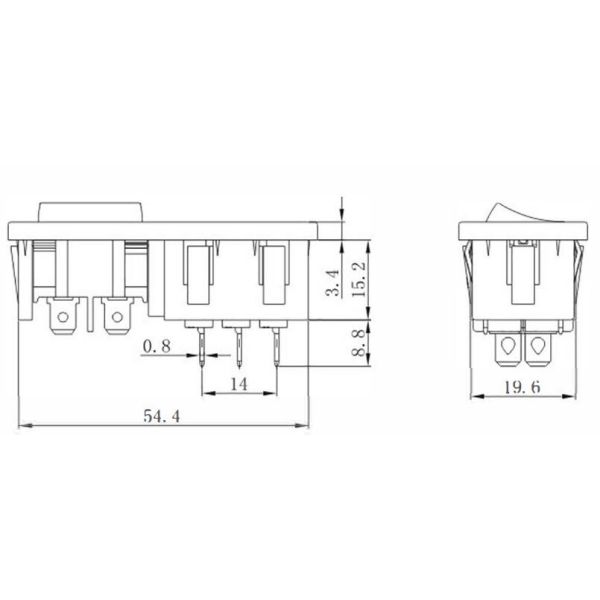

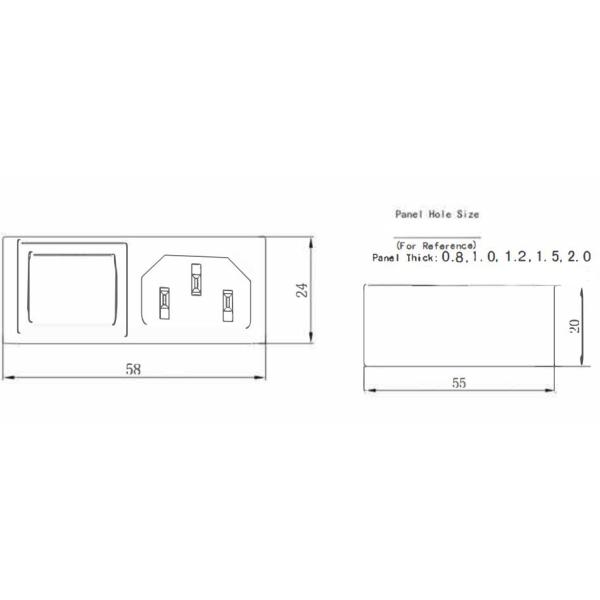

Drawing of C14 Inlet Connector Plug Power Socket

R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder

R14-B-1FB2 10A 250VAC 3 Pin C14 Inlet Connector Plug Power Socket With Rocker Switch Fuse Holder
