Specifications
Brand Name :
Tian Rui
Model Number :
TR-705D
Certification :
ROHS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
Bulk, PE Bag
Product Name :
6x30mm Inline Fuse Holder
Rated Current :
30A
Rated Voltage :
250V
Fuse Specification :
6.35X30mm and 6.35X32mm
Insulating Body :
Nylon
Contacts :
Brass
Wire Gauge :
12AWG-20AWG
Wire Length :
Customized
Type :
In-line Fuse Holder
Color :
Black
Description

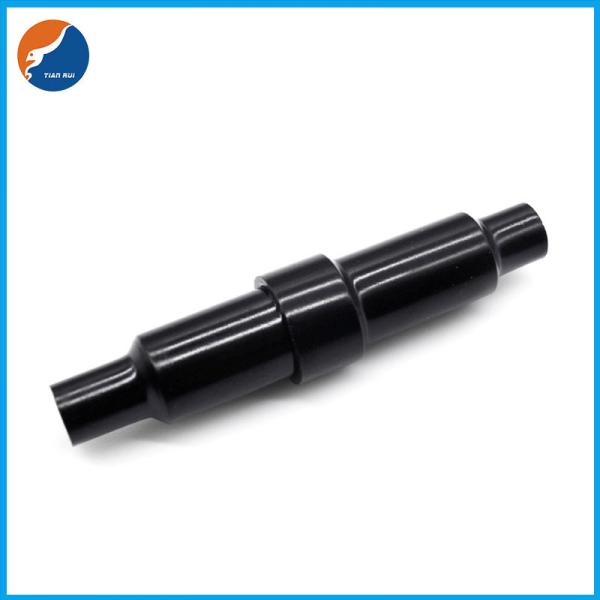

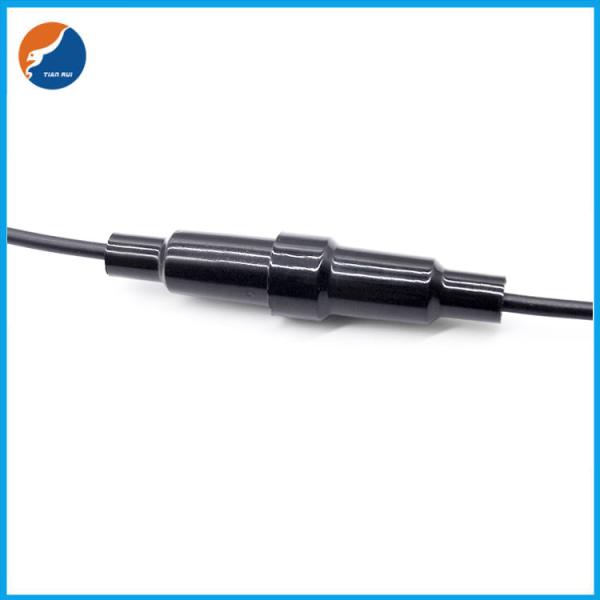

Bakelite Screw Type In-line 3AG AGC 6X30MM Ceramic Glass Tube Inline Fuse Holder

Specification of Tube Inline Fuse Holder

IN-LINE FUSEHOLDER

FOR 6.35X30mm and 6.35X32mm FUSES

APPLICABLE FOR 3AG FUSE TYPE AGC SFE,JSO AND MFA.
ELECTRICAL RATING MAX. 30A
INSULATING BODY NYLON ,BLACK
AVAILABLE WIRE GAUGE #12~#20
WIRE LENGTH CUSTOMIZED

Description of Bakelite Inline Fuse Holder

Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.
Fuse holders are suitable for protection against overloads and short circuits.

UL1015 Wire 16 Cable Gauge 3AG AGC 6x30MM 30A Inline Fuse Holders Bakelite Screw Type

Dimension of In-line Ceramic Glass Fuse Holder

UL1015 Wire 16 Cable Gauge 3AG AGC 6x30MM 30A Inline Fuse Holders Bakelite Screw Type

UL1015 Wire 16 Cable Gauge 3AG AGC 6x30MM 30A Inline Fuse Holders Bakelite Screw Type
