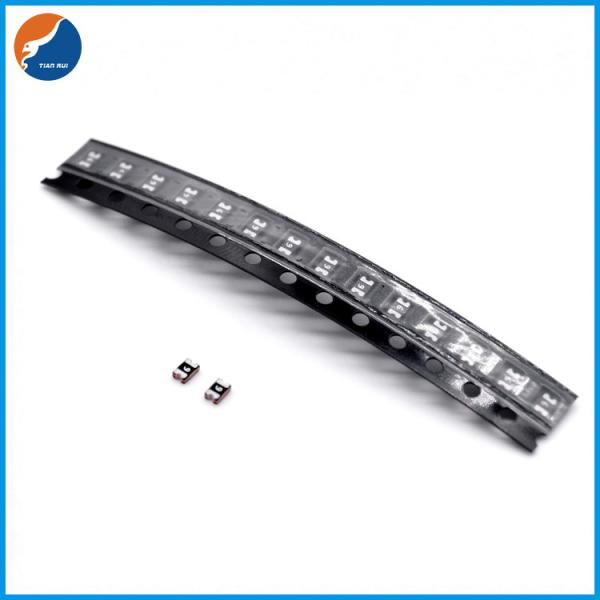

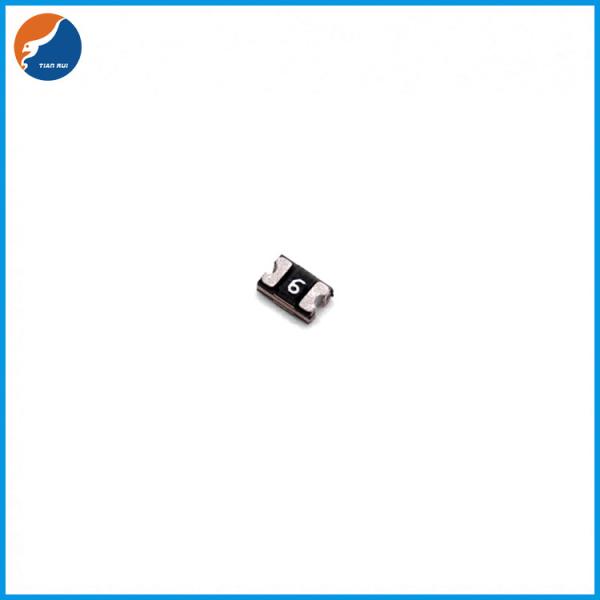

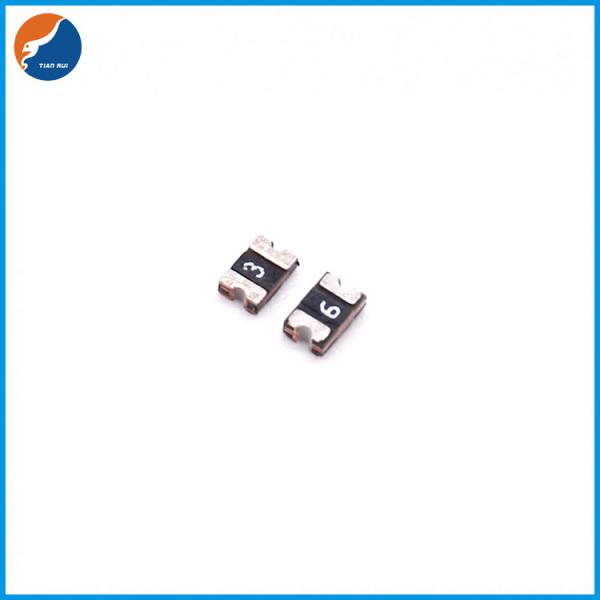

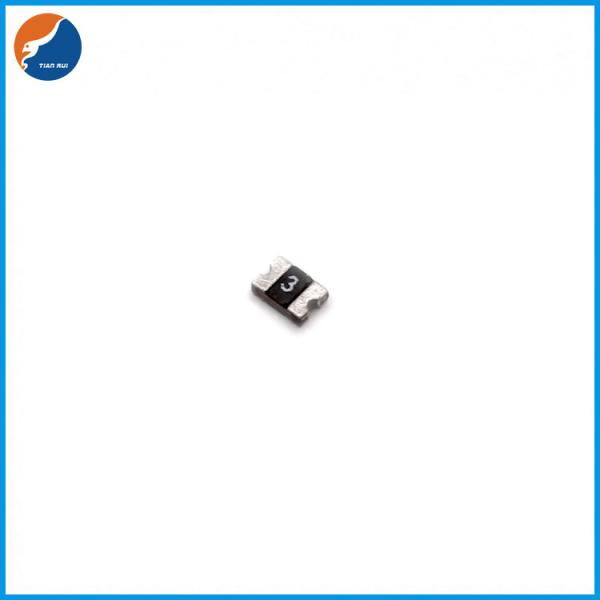

Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss
Specifications
Brand Name :
Tian Rui
Model Number :
Low Loss ASML0402
Certification :
RoHS、Reach、HF、UL、C-UL、TUV
Place of Origin :
China
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
5000pcs/Reel
Rated current :
0.1A-0.5A
Rated voltage :
6V
Material :
Polymer resin and conductive particles
Size :
0402
SMD :
Surface Mount Devices
Operating or Storage temperature: :
-40 to +85 Degree Celsius
Package :
Reel
Welding method :
Reflow welding
Type :
Resettable Fuse
Breaking capacity :
High
Description

Electronic Component Low Loss PPTC PTC SMD Chip 0402 Surface Mount Resettable Fuse

Features of Low Loss 0402 Surface Mount Resettable Fuse
◆ Fully compatible with current industry standards

◆ Very low internal resistance

◆ UL(Pending), C-UL(Pending), TUV(Pending)

◆RoHS,Reach,HF compliance

Applications of Low Loss 0402 SMD Resettable Fuse

◆ Any application that requires protection at low resistances

◆ Cellular phones

◆ Rechargeable battery pack protection.

Usage: 0402 is a surface-mount no-part that operates faster than ordinary SMD fuses and has low resistance.It is widely used in all high density circuit boards.

Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss

Packing Quantity


Model Q’t y/Reel
TLC-ASML010~TLC-ASML050 5000pcs
Note: Reel packaging per EIA-481-1 standard

Electrical Characteristics

P/N IH IT V max I max max operating time Pd Resistance range(Ω)
IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) R min, R1 max,
TLC-ASML010 0.10 0.35 6 50 1.00 5.00 0.50 0.130 2.000
TLC-ASML020 0.20 0.50 6 50 1.00 5.00 0.50 0.100 0.125
TLC-ASML035 0.35 0.70 6 50 8.00 1.00 0.50 0.050 0.700
TLC-ASML050 0.50 1.00 6 50 8.00 2.00 0.50 0.040 0.400

Size(Unit:mm)

Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss

P/N

Marking

 A B C D
Min. Max. Min. Max. Min. Max. Min.
TLC-ASML010 Black ink 0.95 1.25 0.45 0.75 0.35 0.65 0.10
TLC-ASML020 Black ink 0.95 1.25 0.45 0.75 0.35 0.65 0.10
TLC-ASML035 White ink 0.95 1.25 0.45 0.75 0.35 0.65 0.10
TLC-ASML050 White ink 0.95 1.25 0.45 0.75 0.35 0.65 0.10

Characteristic Curve of Relation Between Ambient Temperature and Working Current

P/N Operating Ambient Temperature
-40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃
TLC-ASML010 0.13 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03
TLC-ASML020 0.26 0.24 0.22 0.20 0.16 0.14 0.12 0.10 0.07
TLC-ASML035 0.46 0.42 0.39 0.35 0.28 0.25 0.21 0.18 0.12
TLC-ASML050 0.65 0.60 0.55 0.50 0.40 0.35 0.30 0.25 0.17

Action Current Time Curve Table

Small Chip 0402 SMD Thermal Fuse 0.1A-0.5A Reflow Welding Method Low Loss

Our Advantages


1. Large stock of original brand stock
2. Fast delivery (1-3 working days)
3.Original Authentic Guarantee & 1 Year Warranty

If you have any after-sales problem, please contact us at any time your convenience.

FAQ

Q: IS PRODUCT PICTURES AND LABELS AVAILABLE?

A: We will offer after you place an order or before shipment.

Q: WHAT IS YOUR TERMS OF PACKING?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q: WHAT IS YOUR MOQ?

A: MOQ is SPQ normally, while it depends on your specific order.

(Sample is available if the buyer can afford the shipping fee.)

Q: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A: 1. Our products are all original, and we will test the goods before shipment by professional machines.

2. If The buyer need Test Report, we can send the product to anthoritative institution.

Q: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A: 1. We would like to offer sample if the buyer really want to make long-term relationship with us.
2. We keep good quality and competitive price to ensure our customers benefit.
3. We respect customers as our friend and sincerely do business and make friends with them,no matter where they come from.
