Battery Protection Sheet Self Recovery Fuse PTC Overcurrent Protection PPTC TAL Strap Resettable Fuse

Features of Strap Resettable Fuse
◆ Lower power consumption by ultra-low resistance
◆ Alternative shapes and sizes available on request
◆ UL(E352136), C-UL(E352136), TUV(Pending)
◆ RoHS, Reach, HF compliance

Applications of Battery Sheet Resettable Fuse
◆ Battery protection

Battery Protection UL94V-0 Self Recovery Fuse TAL Strap PTC Resettable Fuse

Packing Quantity of Self Recovery Fuse

Model Bulk(-0) package Q’t y/bag
TAL110 ~ TAL760 1000pcs

PPTC strap fuse is an overcurrent protector specially designed to protect batteries and battery packs.It can be used in lithium ion, nickel chromium, nickel hydride and other secondary (rechargeable) batteries. It has the advantages of small volume, large non-operating current, short response time, small resistance, high reliability, convenient installation, and can be used for many times

Electrical Characteristics of Overcurrent Protection PPTC Fuse

P/N Hold current Trip current Maxi voltage Maxi current Maxi action room Power consumption Resistance range(Ω)
IH, (A) IT, (A) V max, (V) I max, (A) (A) (Sec.) Pd typ, (W) R min, R max, R1max,
TAL110 1.10 2.80 6 40 5.50 3.00 1.0 0.011 0.025 0.045
TAL120 1.20 3.00 6 40 6.00 3.00 1.0 0.011 0.025 0.045
TAL140 1.40 3.60 6 40 7.00 3.00 1.0 0.010 0.020 0.035
TAL160 1.60 4.00 6 40 8.00 3.00 1.0 0.009 0.018 0.035
TAL170 1.70 4.20 6 40 8.50 3.00 1.0 0.008 0.017 0.035
TAL175 1.75 4.50 6 40 8.70 3.00 1.0 0.006 0.015 0.024
TAL180 1.80 4.60 6 40 9.00 3.00 1.0 0.006 0.013 0.024
TAL190 1.90 4.90 6 40 9.50 3.00 1.0 0.006 0.013 0.024
TAL190S 1.90 4.90 6 40 9.50 3.00 1.0 0.006 0.013 0.024
TAL190N 1.90 4.90 6 40 9.50 3.00 1.0 0.006 0.013 0.024
TAL200 2.00 5.30 6 40 10.00 3.00 1.0 0.006 0.012 0.024
TAL210 2.10 5.60 6 40 10.50 3.00 1.0 0.005 0.012 0.024
TAL250 2.50 8.00 6 40 12.50 3.00 1.0 0.004 0.012 0.020
TAL260 2.60 6.00 6 40 13.00 3.00 1.0 0.004 0.010 0.020
TAL270 2.70 6.20 6 40 13.50 3.00 1.0 0.004 0.010 0.026
TAL280 2.80 5.60 6 40 14.00 3.00 1.0 0.004 0.010 0.020
TAL300 3.00 8.00 6 40 15.00 3.00 1.3 0.003 0.010 0.018
TAL300L 3.00 8.00 6 40 15.00 3.00 1.3 0.003 0.010 0.018
TAL310 3.10 8.00 6 40 15.50 3.00 1.3 0.003 0.011 0.024
TAL350 3.50 8.10 6 40 17.50 5.00 1.3 0.003 0.009 0.015
TAL370 3.70 9.00 6 40 18.50 5.00 1.3 0.002 0.010 0.020
TAL410 4.10 9.20 6 40 20.50 5.00 1.3 0.002 0.008 0.015
TAL450 4.50 9.50 6 40 22.50 5.00 1.3 0.002 0.008 0.015
TAL500 5.00 9.50 6 40 25.00 3.00 1.3 0.002 0.008 0.015
TAL600 6.00 12.00 6 50 30.00 5.00 1.5 0.002 0.010 0.015
TAL760 7.60 15.00 6 50 38.00 5.00 1.5 0.001 0.009 0.015

Product Size(Unit: mm) of Battery Protection Sheet PTC Fuse

Battery Protection UL94V-0 Self Recovery Fuse TAL Strap PTC Resettable Fuse

P/N Fig A(Nor.) B(Nor.) C(Max) D(Min.) E(Min.) F(Nor.) G(Nor.) H(Nor.)
TAL110 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL120 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL140 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL160 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL170 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL175 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL180 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL190 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL190S Fig.1 10.0±0.8 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL190N Fig.1 20.0±0.5 2.6±0.15 1.1 4.0 4.0 2.3±0.1
TRA200 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL210 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL250 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL260 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL270 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL280 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL300 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL300L Fig.2 16.5±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1 3.0±0.05 7.6±0.05
TAL310 Fig.1 14.7±0.5 3.1±0.15 1.1 4.0 4.0 2.3±0.1
TAL350 Fig.1 14.7±0.5 3.1±0.15 1.1 3.5 3.5 2.3±0.1
TAL370 Fig.1 14.7±0.5 3.1±0.15 1.1 3.5 3.5 2.3±0.1
TAL410 Fig.1 14.7±0.5 3.6±0.15 1.1 3.0 3.0 2.3±0.1
TAL450 Fig.1 14.7±0.5 3.6±0.15 1.1 3.0 3.0 2.3±0.1
TAL500 Fig.3 17.5±1 2.7±0.3 1.1 5.3±0.5 2.3±0.2
TAL600 Fig.3 23.2±1.3 3.3±0.3 1.1 4.75±0.75 2.5±0.1
TAL760 Fig.3 23.2±1.3 3.3±0.3 1.1 4.75±0.75 2.5±0.1

Characteristic Curve of Relation Between Ambient Temperature and Working Current

P/N Test item Operating Ambient Temperature
-40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃
TAL110 I-hold 1.80 1.60 1.40 1.10 1.00 0.90 0.80 0.70 0.60
I-trip 4.60 4.05 3.50 2.80 2.55 2.30 2.00 1.80 1.50
TAL120 I-hold 2.00 1.80 1.60 1.20 1.10 0.90 0.90 0.70 0.60
I-trip 5.00 4.50 4.00 3.00 2.75 2.25 2.25 1.75 1.50
TAL140 I-hold 2.30 2.10 1.80 1.40 1.20 1.10 1.00 0.80 0.70
I-trip 5.90 5.50 4.60 3.60 3.10 2.80 2.60 2.00 1.80
TAL160 I-hold 2.70 2.40 2.10 1.60 1.40 1.20 1.10 0.90 0.70
I-trip 6.75 6.00 5.25 4.00 3.50 3.00 2.75 2.25 1.75
TAL170 I-hold 2.90 2.50 2.20 1.70 1.50 1.30 1.10 0.90 0.70
I-trip 7.20 6.20 5.50 4.20 3.70 3.20 2.70 2.20 1.70
TAL175 I-hold 2.90 2.50 2.20 1.75 1.50 1.30 1.10 0.90 0.70
I-trip 7.50 6.40 5.65 4.50 3.80 3.30 2.80 2.30 1.80
TAL180 I-hold 3.00 2.70 2.30 1.80 1.50 1.30 1.20 1.00 0.80
I-trip 7.65 6.90 5.90 4.60 3.90 3.40 3.00 2.50 2.00
TAL190 I-hold 3.20 2.80 2.40 1.90 1.60 1.40 1.20 1.00 0.80
I-trip 8.25 7.20 6.20 4.90 4.10 3.60 2.00 2.60 2.00
TAL200 I-hold 3.40 2.90 2.50 2.00 1.70 1.40 1.20 1.00 0.80
I-trip 9.00 7.70 6.60 5.30 4.50 3.70 3.20 2.65 2.10
TAL210 I-hold 3.50 3.10 2.70 2.10 1.80 1.50 1.30 1.10 0.90
I-trip 9.30 8.30 7.20 5.60 4.80 4.00 3.50 2.90 2.40
TAL250 I-hold 4.20 3.70 3.20 2.50 2.10 1.80 1.50 1.30 1.00
I-trip 13.40 11.80 10.00 8.00 6.70 5.75 4.80 4.15 3.20
TAL260 I-hold 4.40 3.80 3.30 2.60 2.20 1.85 1.55 1.35 1.05
I-trip 10.15 8.75 7.60 6.00 5.00 4.30 3.60 3.10 2.40
TAL270 I-hold 4.60 4.00 3.40 2.70 2.20 1.90 1.60 1.30 1.00
I-trip 10.50 9.10 7.80 6.20 5.05 4.35 3.65 3.00 2.30
TAL280 I-hold 4.70 4.10 3.50 2.80 2.30 2.00 1.70 1.40 1.10
I-trip 9.40 8.20 7.00 5.60 4.60 4.00 3.40 2.80 2.20
TAL300/L I-hold 5.10 4.40 3.80 3.00 2.50 2.10 1.80 1.50 1.10
I-trip 13.60 11.70 10.10 8.00 6.65 5.60 4.80 4.00 2.93
TAL310 I-hold 5.20 4.60 3.90 3.10 2.50 2.20 1.90 1.50 1.20
I-trip 13.40 11.85 10.00 8.00 6.45 5.70 4.90 3.85 3.10
TAL350 I-hold 5.90 5.20 4.40 3.50 2.80 2.60 2.20 1.70 1.30
I-trip 13.65 12.00 10.10 8.10 6.50 6.02 4.85 3.90 3.00
TAL370 I-hold 6.30 5.40 4.60 3.70 3.00 2.60 2.20 1.70 1.30
I-trip 15.30 13.15 11.20 9.00 7.30 6.30 5.35 4.15 3.15
TAL410 I-hold 6.90 6.00 5.10 4.10 3.30 2.80 2.40 1.90 1.50
I-trip 15.50 13.40 11.00 9.20 7.40 6.30 5.40 4.25 3.40

TAL450 I-hold 7.60 6.60 5.60 4.50 3.60 3.10 2.60 2.10 1.60
I-trip 15.70 13.50 11.30 9.50 7.60 6.50 5.50 4.40 3.50
TAL500 I-hold 8.40 7.30 6.20 5.00 3.80 3.45 2.90 2.10 2.00
I-trip 15.80 13.60 11.50 9.50 7.50 6.60 6.10 5.30 3.80
TAL600 I-hold 9.20 8.00 7.00 6.00 5.00 4.50 4.00 3.50 3.00
I-trip 19.00 17.00 15.00 12.00 10.50 10.00 8.50 7.00 6.00
TAL760 I-hold 11.00 10.00 9.50 7.60 6.00 5.50 5.00 4.50 4.00
I-trip 24.00 21.00 19.00 15.00 13.00 12.50 10.50 9.00 7.50

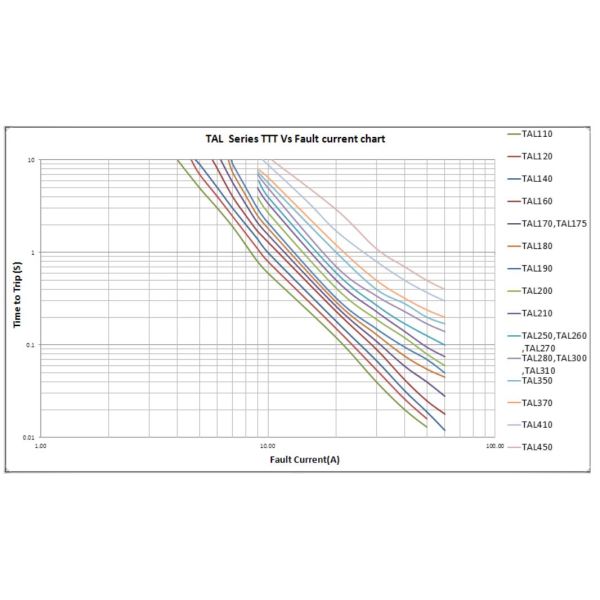

Action Current Time Curve Table
