Specifications
Brand Name :
TIAN RUI
Model Number :
TR-H65
Place of Origin :
China
Certification :
ROHS
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
50PCS/Bag
Product Name :
Bullet Probe NTC Thermistor Temperature Sensor
Resistance :
10K 50K 100K Ω
B Value :
3950K
Tolerance :
1%
Type :
Bullet type
Feature :
Fast response
Interface :
Analog
Theory :
Resistance Sensor
Operating Temperature :
-25C to +150C
Application :
Coffee maker,electric ketle, etc.
Description


Water Heater High Sensitive Immersion Type Small Bullet Probe NTC Thermistor Temperature Sensor

ParameterValue
Resistance value at 25 °C10KΩ, 50KΩ, 100KΩ etc
olerance on R25 value± 1%
B value3435K,3984K, 3950K, 3990K, etc
Tolerance on B value± 1%
Operating temperature range20℃ to + 150℃
Response time (25 °C to water 85 °C)2 s
Dissipation factor Mounted in still air2.8 mW/K
Maximum power dissipation at 55 °C100 mW

Min. dielectric withstanding voltage

between terminals and capsule (10 s)

500 VAC
Insulation resistance at 500 VDC> 100M
Thermal gradient< 0.02 K/K


Description

Miniature insulated chip NTC thermistor mounted in a stainless steel housing with brass collar for sealed mounting and twin PVC isulated lead wire connection.

The sensor can be mounted by means of a sealing O-ring and screw.

The end wire can be soldered, or crimped to a connector for wire-to-wire or wire-to-board

Features

• Fast time response for fluid immersion applications

• Reduced thermal gradient, due to the use of small tip dimensions and thin isulated wire

• Sensor for permanent contact with water or other liquids

Applications

Immersion sensor used for temperature measurement,sensing and control in

• Water boilers

• Heating systems

• Chiller systems

• Water and used water systems

• Water and oil tanks

• Consumer appliances, Coffee machines

• Industrial appliances

• Solar heating systems

SPECIFICATION

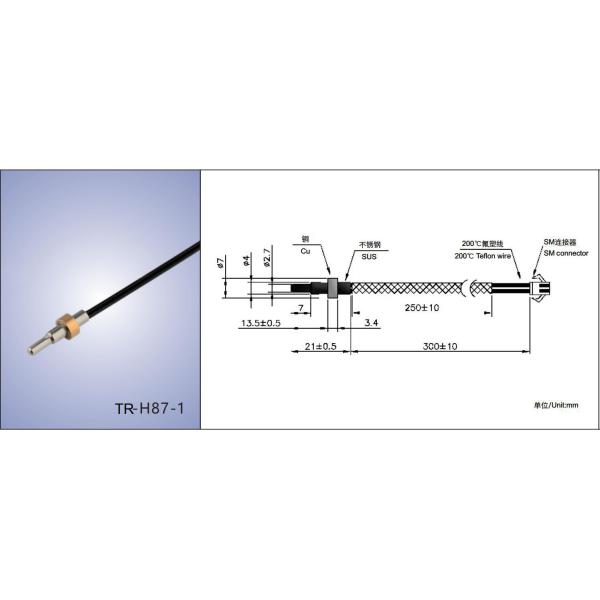

Standard NTCR25℃=100KΩ±1%
B25/50=3990K±1%
Operating temperature-20~150℃
Applicationwater heater,coffee maker, electric kettle, etc.


Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type

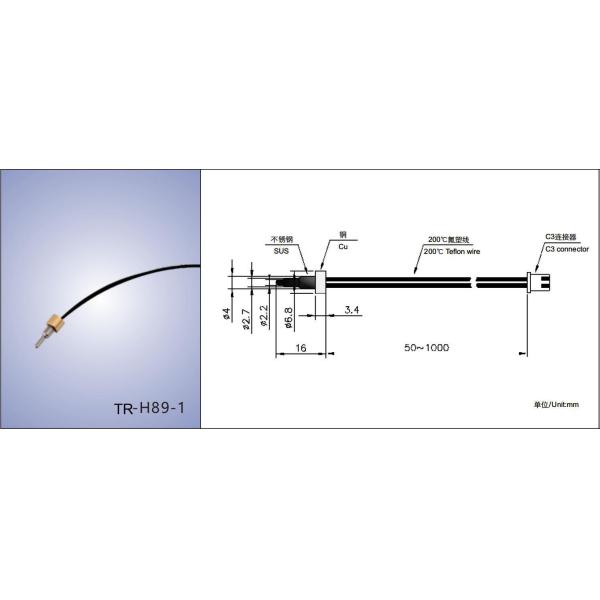

Standard NTCR25℃=100KΩ±1%
B25/50=3950K±1%
Operating temperature-30~150℃
Applicationcoffee maker,electric ketle, etc.


Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type

Standard NTCR25℃=50KΩ±1%
B25/50=3950K±1%
Operating temperature-30~150℃
Application oven, toaster, water dispenser, etc.


Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type

Standard NTCR25℃=50KΩ±1%
B25/50=3950K±1%
Operating temperature-20~150℃
Applicationwater heater,coffee maker, electric kettle, etc.



Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type

Standard NTCR25℃=50KΩ±1%
B25/50=3950K±1%
Operating temperature-20~150℃
Applicationwater heater,coffee maker, electric kettle, etc.



Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type

Standard NTCR25℃=10KΩ±1%
B25/50=3380K±1%
Operating temperature-20~150℃
Applicationwater heater,coffee maker, electric kettle, toilets, etc.


Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type

Standard NTCR25℃=100KΩ±1%
B25/50=3950K±1%
Operating temperature-30~150℃
Application

electric kettle,water heater, coffee maker,food processor, etc.


Water Heater Bullet Probe NTC Temperature Sensors High Sensitive Immersion Type


Tell Us Your Request

The application of the NTC thermistor:__________
Working environment of NTC thermistor:________
Operation temperature range:___℃ to ___℃
Any requirement about sensor probe material or dimension:______________
The R value:___K ohm ±___% at ___℃,
The B value: B(____℃/____℃) = _____K ± ___%
