Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
Specifications
Brand Name :
TIAN RUI
Model Number :
TR1-10C
Certification :
ROHS
Place of Origin :
China
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1PCS/Bag, Bulk
Product Name :
10 Way Blade Fuse Block Box Holder
Max Current Rating :
30A per Circuit - 100A Max Input
Rated Voltage :
32 VDC
Fuse Specification :
Standard Blade Fuse
Base :
PBT (UL flame: 94V-0), Black
Cover :
PC (UL flame: 94V-2), Transparent
Push Button :
POM (White)
Terminals :
Copper, Tin plated
Temperature Rating :
-20° C ~ +85° C
Application :
Car, Marine, RY, etc
Description

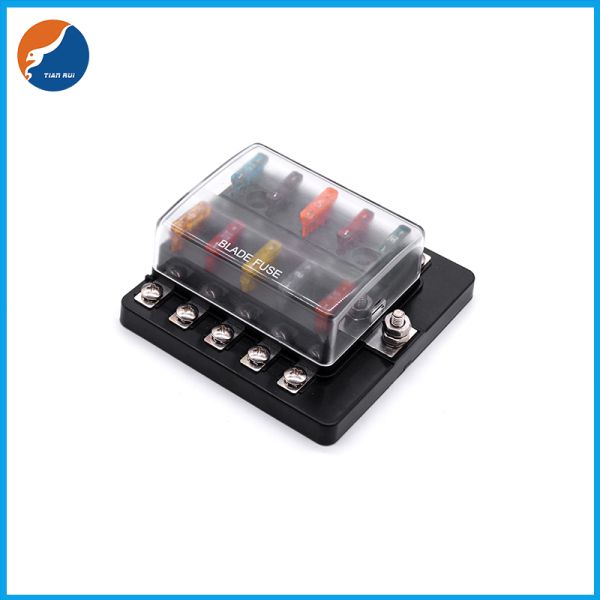

Automotive Car Automobile 10 Way Blade Fuse Bloc Box Holder with Bolt Terminals

Specifications of Automotive Car Automobile 10 Way Blade Fuse Bloc Box Holder with Bolt Terminals

Product name: 10 Ways Blade Fuse Holder without LED indicator

Material: PC cover, transparent; PBT body, black; Terminal: copper tin plated.

Weight: 10 ways-125g

Voltage: 32VDC (common use within 32V)

Current: The maximum can withstand 100A, it is recommended that each circuit does not exceed 30A.

Applicable fuse: standard blade fuse (1A-30A).

Applicable terminals: Y-type terminal on the input end, which can be used with #4-6AWG wire; 250 in-line terminals for the output end, which can be used on #12-16AWG wire.

Max Voltage 32 VDC
Max Current Rating 30A per Circuit - 100A Max Input
Fuse Type Regular Auto Blade Fuse.
Base PBT (UL flame: 94V-0), Black
Cover PC (UL flame: 94V-2), Transparent
Push Button POM (White)
Terminals

Copper, Tin plated

Temperature Rating -20° C~ +85° C

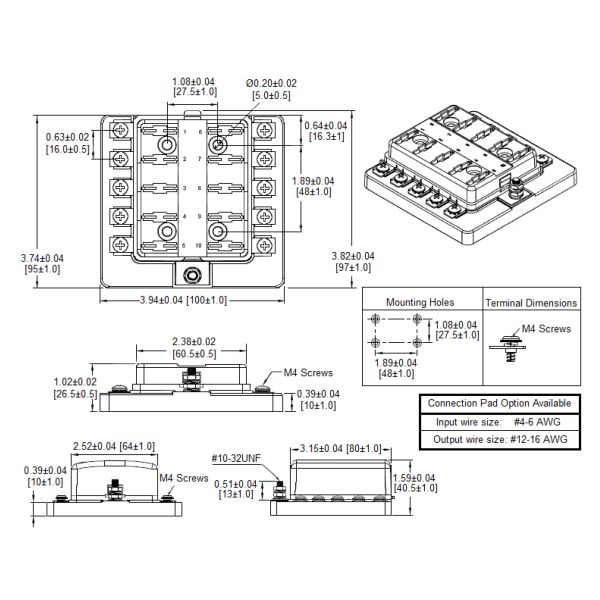

Mechanical Dimensions Inches [mm]

Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals

Drawing of Automotive Car Automobile 10 Way Blade Fuse Bloc Box Holder with Bolt Terminals


Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals

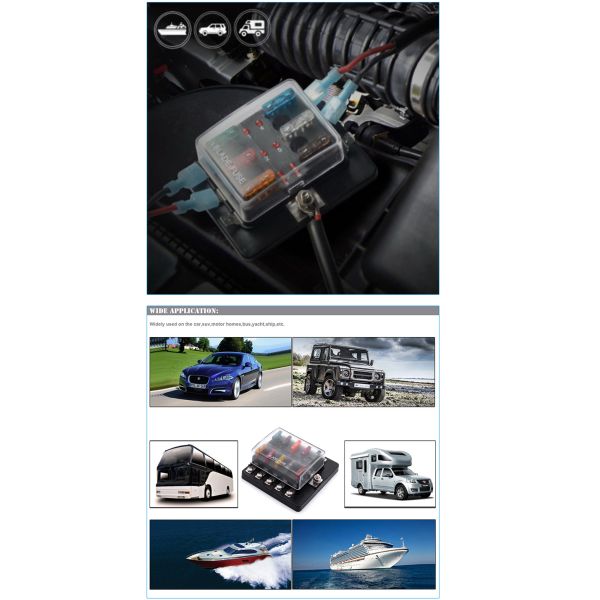

Application of Automotive Car Automobile 10 Way Blade Fuse Bloc Box Holder with Bolt Terminals

Suitable for electric vehicles, auto audio, auto assembly insurance, sightseeing/fire fighting/new energy vehicles, forklifts, air conditioners, buses and high-power meters, instruments, generators, etc.

Automotive Car Automobile 10 Way Blade Fuse Block Box Holder With Bolt Terminals
