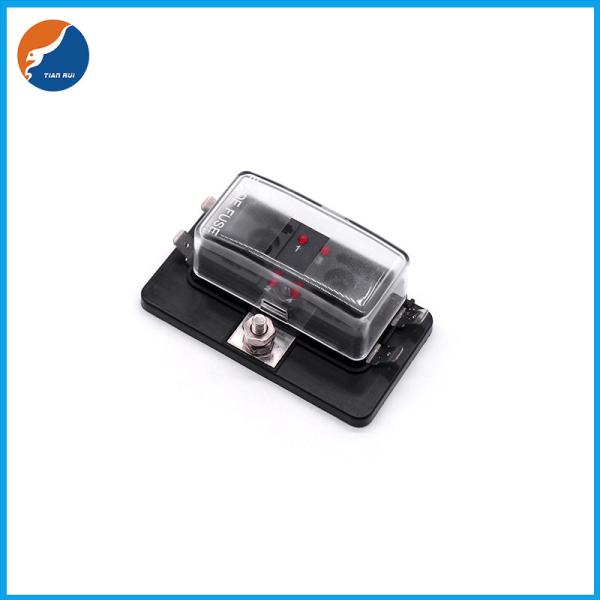

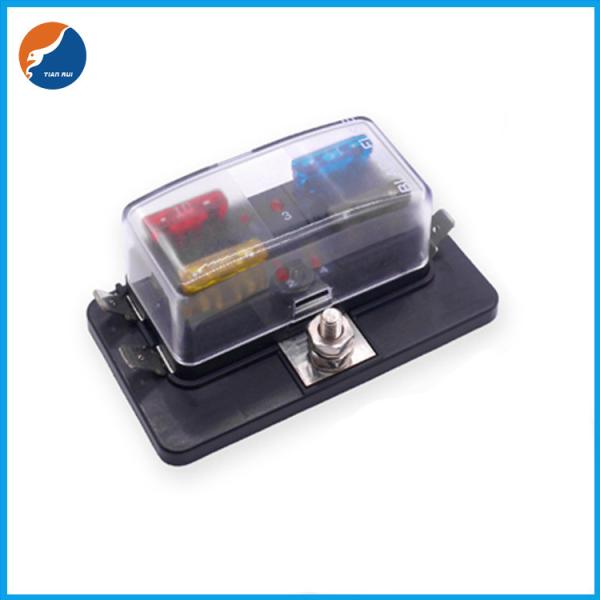

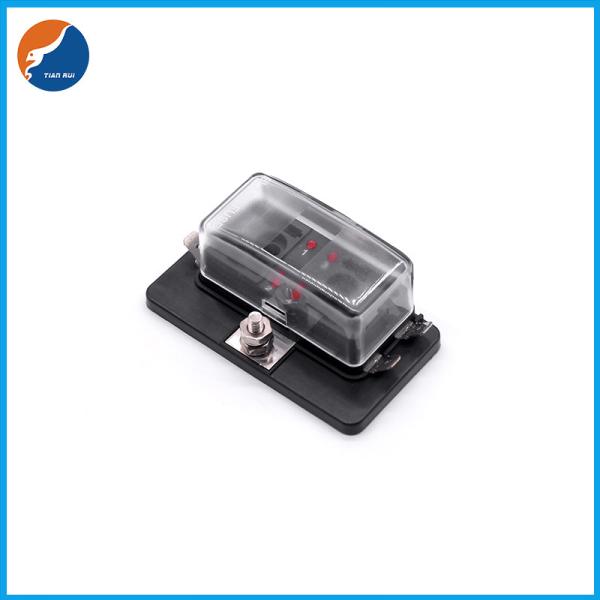

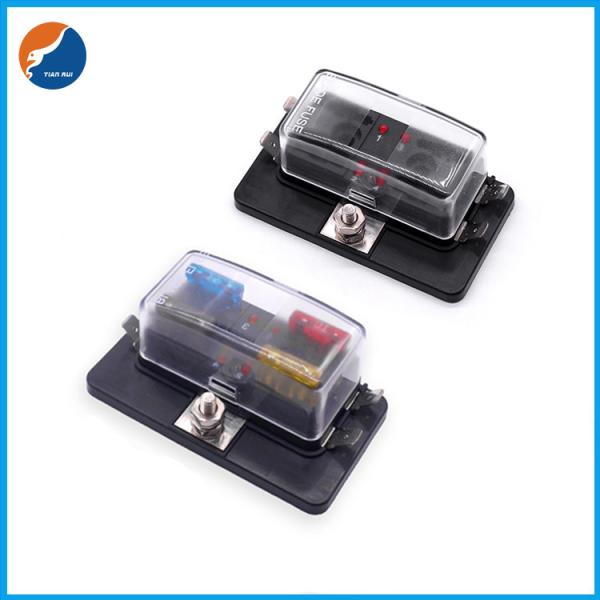

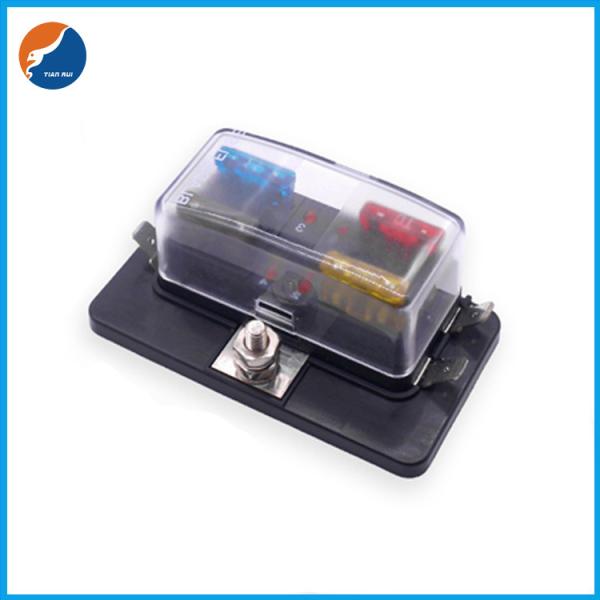

Button Pom 4 Poles ATO ATC Automotive Car Blade Fuse Block With Copper Connect Terminals

Specifications of 4 Poles ATO ATC Automotive Car Blade Fuse Block

Product name: 4 Ways Blade Fuse Holder with LED indicator

Material: PC cover, transparent; PBT body, black; Terminal: copper tin plated.

Weight: 4 ways-65g

Voltage: 32VDC (common use within 32V)

Current: The maximum can withstand 100A, it is recommended that each circuit does not exceed 30A.

Applicable fuse: standard blade fuse (1A-30A).

Applicable terminals: Y-type terminal on the input end, which can be used with #4-6AWG wire; 250 in-line terminals for the output end, which can be used on #12-16AWG wire.

LED indicator: Unique design with LED indicator, the indicator does not light up under normal conditions when the circuit is connected and the fuse is inserted. If the fuse is abnormal, the indicator light is on, and the indicator light of the fuse is not inserted. Continue to work after replacing the fuse, the fuse box will not be affected

Features of 4 Poles ATO ATC Automotive Car Blade Fuse Block

Dust cover design
This product is added with a dust-proof transparent cover to effectively prevent dust from entering and improve environmental factors.

LED Indicator
When the current of the electrical appliance exceeds the current of the corresponding fuse, the fuse is blown and the indicator LED light will automatically light up.

Drawing of 4 Poles ATO ATC Automotive Car Blade Fuse Block

Application of 4 Poles ATO ATC Automotive Car Blade Fuse Block

Suitable for electric vehicles, auto audio, auto assembly insurance, sightseeing/fire fighting/new energy vehicles, forklifts, air conditioners, buses and high-power meters, instruments, generators, etc.
