Specifications
Brand Name :
Tian Rui
Model Number :
Littelfuse 891 Series
Certification :
ROHS
Place of Origin :
China
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
2000PCS/Carton
Rated Current :
2A-30A
Rated Voltage :
Up To 58V DC
Type :
Low Profile Blade Fuse
Body :
PA66
Metal :
Silver Plated Zinc Alloy
Interrupting Ratings :
1000A@58 VDC
Application :
Car, Automotive, etc
Color :
Variety of color fuse
Complies :
ISO 8820-9
Packing :
PE bag
Description

Littelfuse Low Profile Mini Blade Micro Fuse 891 Series 58V 0891005 0891010 0891015 0891020


MICRO3 Blade Fuses Rated 32V

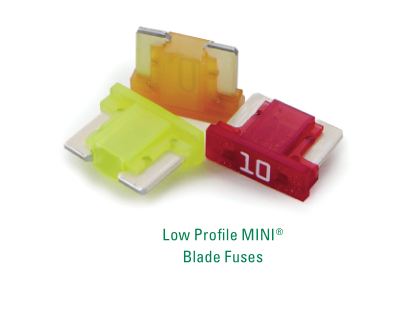

The Low Profile MINI fuse has similar performance characteristics as the standard MINI fuse. The lower overall height allows for more space and weight savings. The Low Profile MINI fuse is designed to mate with tuning-fork terminals, which provides additional weight and material savings in fuse box designs by eliminating the need for female box terminals.


Specification

Voltage Rating: 58 VDC
Interrupting Ratings: 1000A @ 58 VDC
*Recommended Environmental Temperature: -40°C to +125°C
Terminals Material: Silver plated zinc alloy
Housing Material: PA66
Complies with: ISO 8820-9



Littelfuse Low Profile Mini Blade Micro Fuse 891 Series 58V 0891005 0891010 0891015 0891020

Ordering Information

Part Number

Ratings

 Package Size
0891xxx.NXS 2 - 30 5000
0891xxx.U 2 - 30 500
0891xxx.H 2 - 30 100



Ratings

Part Number Current Rating (A) Housing Material Color Test Cable
Size
(mm2)		 Typ. Voltage Drop
(mV)		 Typ. Cold
Resistance
(mΩ)		 Typ.I2t
(A2s)
0891002._ 2 0000 0.5 151 54.2 3
0891005._ 5 0000 0.5 114 17.21 22
089107.5_ 7.5 0000 0.75 105 10.65 53
0891010._ 10 0000 1 97 7.59 102
0891015._ 15 0000 1.5 75 4.7 198
0891020._ 20 0000 2.5 99 3.35 420
0891025._ 25 0000 2.5 96 2.56 613
0891030._ 30 00000 4 96 2.06 1100


The typical I2t is an average value calculated from the breaking capacity tests by using the melting time before the arcing occurs.

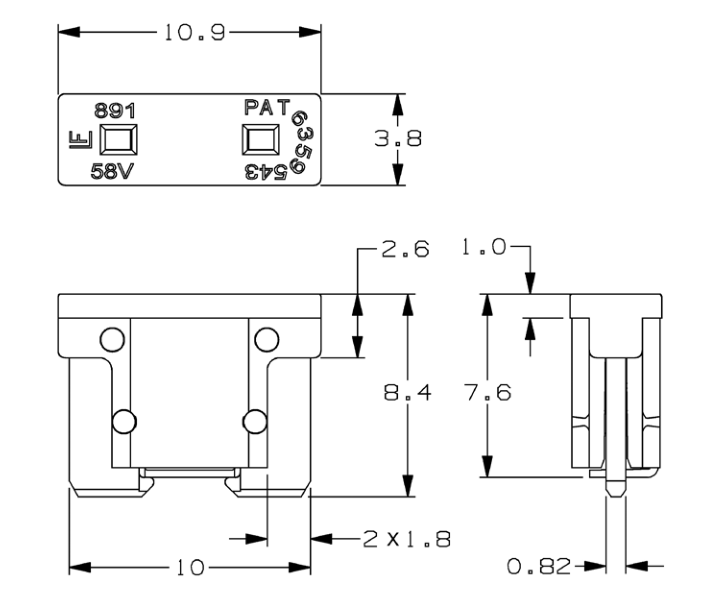

Dimensions

Littelfuse Low Profile Mini Blade Micro Fuse 891 Series 58V 0891005 0891010 0891015 0891020


Time-Current Characteristics

% of Rating Opening Time Min / Max (s)
110 360,000 / ∞
135 0.75 / 120
200 0.15 / 5
350 0.08 / 0.25
600 0.03 / 0.1



Time-Current Characteristic Curves

Littelfuse Low Profile Mini Blade Micro Fuse 891 Series 58V 0891005 0891010 0891015 0891020


0891002.NXS, 0891005.NXS, 089107.5NXS, 0891010.NXS, 0891015.NXS, 0891020.NXS, 0891025.NXS, 0891030.NXS

0891002.U, 0891005.U, 089107.5U, 0891010.U, 0891015.U, 0891020.U, 0891025.U, 0891030.U

0891002.H, 0891005.H, 089107.5H, 0891010.H, 0891015.H, 0891020.H, 0891025.H, 0891030.H
