12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
Specifications
Brand Name :
TIAN RUI
Model Number :
TR686
Certification :
ROHS
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :
1000000PCS per Month
Delivery Time :
5-7 work days
Packaging Details :
PE bag, Bulk
Product Name :
Car Relay
Rated Current :
120A 200A
Rated Voltage :
12V 24V
Contact Form :
1H：NO
Operating Temperature :
-40 to +85℃
Power :
2.4W 4.8W
Insulation Resistance :
100MΩ min (at 500VDC)
Dielectric Strength :
50Hz 500V
Lifespan :
100000 Times
Application :
Automotive
Description

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator


Item Type: Battery Relay Switch
Model Name: Remote Control Power Switch
Special Features: Energy Saving
Voltage: 12V
Current: 120A 200A
Connector Type: Crimp, Plug

Specification
 Coil Volt. (VDC)
 Coil Resistance (Q±10%) Pickup Vol. VDC (max.) Release Vol. VDC (min.) Coil Power Operate Time
 Release Time
Rated
 Max.
12V 2.4W 12 15.6 60 7.8 1.2 2.4W ≤10ms ≤5ms
24V 2.4W 24 31.2 240 15.6 2.4 2.4W
12V 4.8W 12 15.6 30 7.8 1.2 4.8W ≤10ms ≤5ms
24V 4.8W 24 31.2 120 15.6 2.4 4.8W

Features

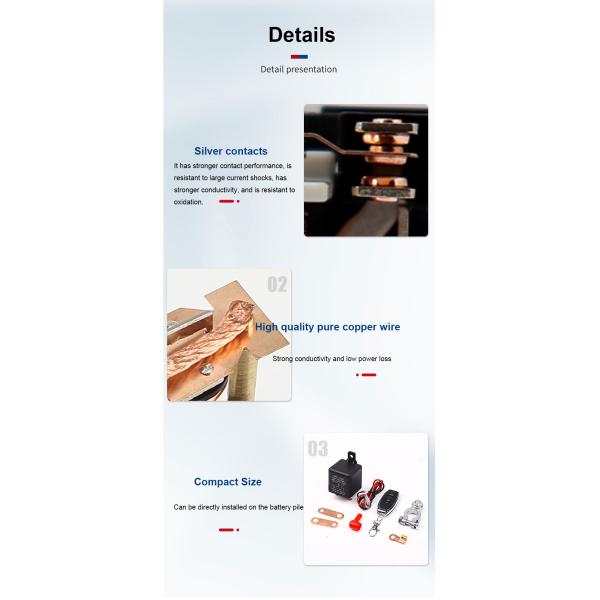

•The contacts are made of silver alloy material, which has better conductivity and higher sensitivity
•The all-copper electromagnetic coil has stable performance and reliable and accurate suction
•High temperature resistant and flame retardant shell, pure copper connecting feet, easy installation

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator

12V 24V 120A 200A High Current Relay Switch Dual Remote Car Battery Disconnect Relay Shut Off Switch Isolator
