300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal
Specifications
Model Number :
H3-67
Place of Origin :
China
MOQ :
1000
Price :
USD $0.1~$0.15 per piece
Payment Terms :
T/T
Supply Ability :
100K pieces per week
Delivery Time :
10 work days
Packaging Details :
1000pcs per bag
Item Name :
fuse holder
P/N :
H3-67
Mount Type :
PCB mount
Electrical Rating :
250V 25A 300V 30A
Body Length :
35.4mm
Body Width :
13.8mm
Height :
14.5mm
Mounting Hole :
Dia 4mm
Fuse Size :
6.3x30 6.3x32mm
RoHS Compliant :
Yes
Body Material :
P.B.T
Terminal material :
nickel plated brass
Terminal Width :
6.4mm
Terminal Thickness :
0.8mm
Description

H3-67 250V 25A 300V 30A Fuse Block 6x30mm PCB Mount Fuse Holder With 6.4 Quick Connect Terminal

Product Description

Item Name H3-67 Fuse Holder
Mount Type PCB
Rating Current 25A@250V 30A@300V
Body Color Black
Body Material P.B.T 94V-0
Terminal Material nickel plated brass
Body Length 35.4mm
Body Width 13.8mm
Height 14.5mm
Mounting Hole Diameter 4.0mm
Total Length 57mm
Terminal Width 6.4mm
Terminal Thickness 0.8mm

1. Part No.: H3-67
2. Applicable fuse: 6x30mm
3. Suitable for PCB Mounting
4. Ambient temperature: - 40°C~125°C
5. Flame Retardant Grade: UL 94V-0

This 6x30 pcb fuse holder is compatible with 6.3x30mm glass or ceramic fuses for overcurrent protection in electronic equipments, appliances, and lighting circuits. It has 6.4mm faston terminals.

It is easy to install it on the printed circuit boards.

Rating: 25A/250V AC, 30A/300V AC
Insulation resistance:DC 500V 100mOhm Min
Voltage breakdown: AC 1500V minute
Fuse size: 6 x 30mm

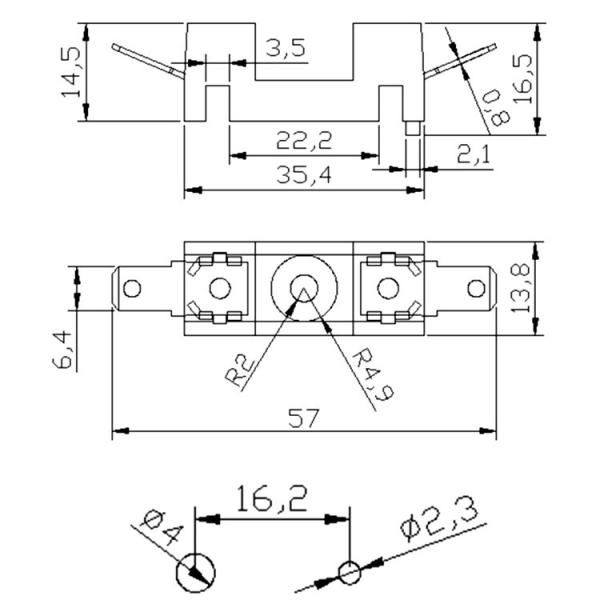

Drawing of the H3-67 fuse holder

300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal

Please allow 1-3mm tolerance due to manual measurement.

KEY WORDS: FUSE HOLDER. PCB FUSE HOLDER, 5x20 FUSE HOLDER, 5.2x20 FUSE HOLDER, FUSE BLOCK

6.3x30 glass fuses

300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal

6.3x32 ceramic fuses

300V 6x30mm PCB Mount Fuse Holder / 30A Fuse Block With 6.4 Quick Connect Terminal

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

  • Will the fuse need to accessible for replacement?
  • How often will the fuse need to be replaced?
  • Should the end customer of the appliance have access to change the fuse?
  • Should the fuse only be accessible from outside the appliance?
  • How much is available to spend on safety and reliability?
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: 3 days if in stock, 10 days if not in stock

Q: Do you provide samples ? is it free ?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.

Product Description

Item Name H3-67 Fuse Holder
Mount Type PC Boards
Electrical Rating 25A@250V 30A@300V
Base Color Black
Base Material P.B.T 94V-0
Contact Material nickel plated brass
Body Length 35.4mm
Body Width 13.8mm
Height 14.5mm
Mounting Hole Diameter 4.0mm
Total Length 57mm
Terminal Width 6.4mm
Terminal Thickness 0.8mm

1. Part No.: H3-67
2. Applicable fuse: 6x32 3AG
3. Suitable for PCB Mounting
4. Rated Voltage: 250Vac 300Vac
5. Rated Current: 25A 30A
6. Ambient temperature: - 40°C~125°C
7. Flame Retardant Grade: UL 94V-0
8. Insulation Resistance: Min 100MΩ (500VDC/1 min)
9: Withstanding Voltage: 1500VAC
