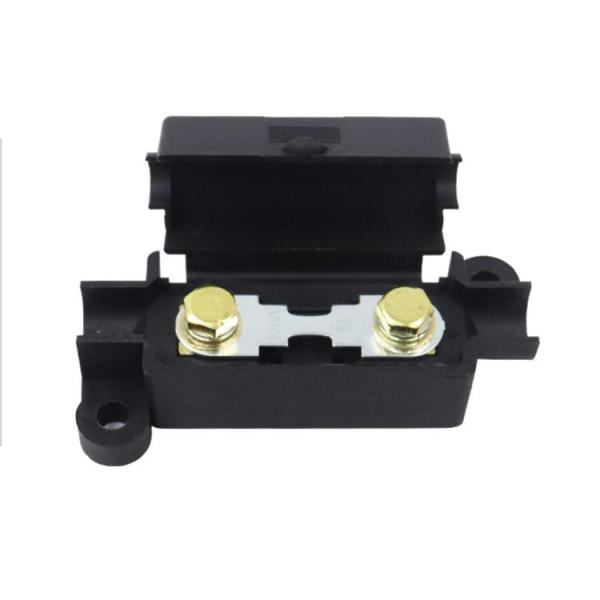

MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
Specifications
Model Number :
ANF-H
Place of Origin :
China
MOQ :
500
Price :
USD $0.75~$1 per piece
Payment Terms :
T/T
Supply Ability :
1K pieces per week
Delivery Time :
10 work days
Packaging Details :
100pcs per bag, 5000pcs per box
Item Name :
Midi Fuse Holder, fuse block
Part No. :
ANF-H
Length :
70mm
House material :
PA66
Terminal material :
brass
Voltage Rating :
32V dc
Current Ratin0.1A~20Ag :
200A max
RoHS Compliant :
Yes
Halogen free :
Yes
Description

ANS ANF ANG MIDI Fuse Holder Automotive Bolt Down PA66 94V-1 MIDI Fuse Block Holder

Product Description

Product Name ANS ANF ANG MIDI Fuse Holder
Total Length 70mm
Cap Length 50mm
No of Slots 1
Max Rating 32Vdc
Amps Range 30A 40A 50A 60A 70A 80A 100A 125A 150A 175A 200A
Environmental Lead and Ph free

Application

  • Suitable for forklifts,
  • buses,
  • automobile electrical appliances.
Specification Parameters
Voltage Rating: 32VDC
Temperature Range: -40°C to +125°C
Terminals: Brass
Housing Material: PA66


Drawing of midi Fuse Holder for ANS ANF ANG MIDI fuses

MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66

Features

1) Insulating Body: PA66 94-V1
2) Contact: brass
3) Rated current: 200A MAX
4) For midi fuses 30A~200A
MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66

ANS FUSE with amps stamped

MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66

MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66

Blowing Performance

TESTING CURRENT BLOW TIME LIMIT
100% 100 Hr. minimum
150% 90s--- 3600s
200%(≥150A) 3s --- 100s
300% 0.3s-3s
350%(≥150A) 0.3s-5s

Drawing of ANS fuses

MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66

Standard Package

100pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

  • Will the fuse need to accessible for replacement?
  • How often will the fuse need to be replaced?
  • Should the end customer of the appliance have access to change the fuse?
  • Should the fuse only be accessible from outside the appliance?
  • How much is available to spend on safety and reliability?

About Us

Reomax Electronics Co., Ltd was founded in 1999, focus on manufacturing fuses for over-current, over-temperature and other circuit protection components. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety regulations certificate.
After served our valuable clients in China market over 10 years, Reomax fuses are becoming one of the leading fuses suppliers, and in order to create more value and save more cost for our global clients, we start to provide the shortest fuses product supply chain mode and we are now available in worldwide.

  • Company warehouse
  • MIDI 32V DC 60 Amp Bolt Down Fuse Holder Block ANG Automotive PA66
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.
