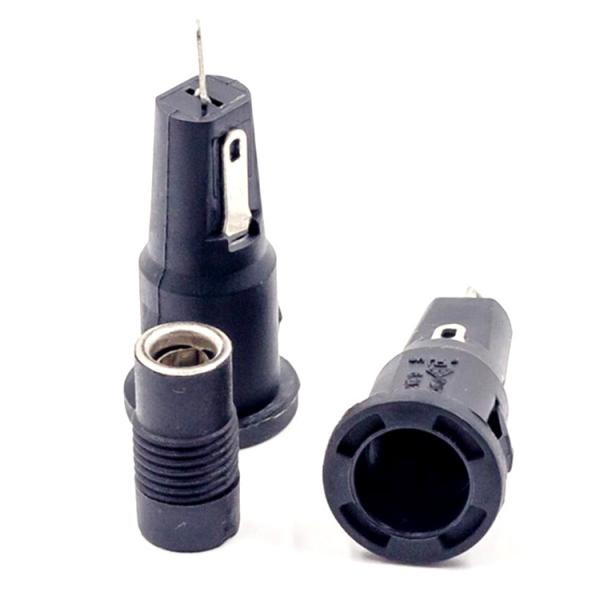

R3-54 Panel Mount Fuse Holder R3-54A 5.2x20mm 250V 6.3A 125V 10A Fuse Holder

Product Description

1. Contact Resistance: <0.02Ω
2. Withstanding Voltage: >AC3000V
3. lnsulation Resistance: DC500V 100mΩ Min
4. Electrical: Rated at 6.30A 250V AC
5. Insulating Body: PA66 nylon, UL 94V-2
6. Screw type cap
7. Soldering type terminals

Drawing of R3-54 fuse holder

Please allow 1-3mm tolerance due to manual measurement.

Product Features

1. Small structure
2. Easy to mount
3. Durable material

Silver plated copper terminals for soldering

Durable nylon material with high electrical performance

Standard Package:

100pcs per bag, 1000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

• Will the fuse need to accessible for replacement?
• How often will the fuse need to be replaced?
• Should the end customer of the appliance have access to change the fuse?
• Should the fuse only be accessible from outside the appliance?
• How much is available to spend on safety and reliability?

These panel-mount fuse holders are compatible with either 1-1/4" x 1/4" or 20mm x 5mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They have a removable cap for installing and removing fuses. They're used with fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits.
