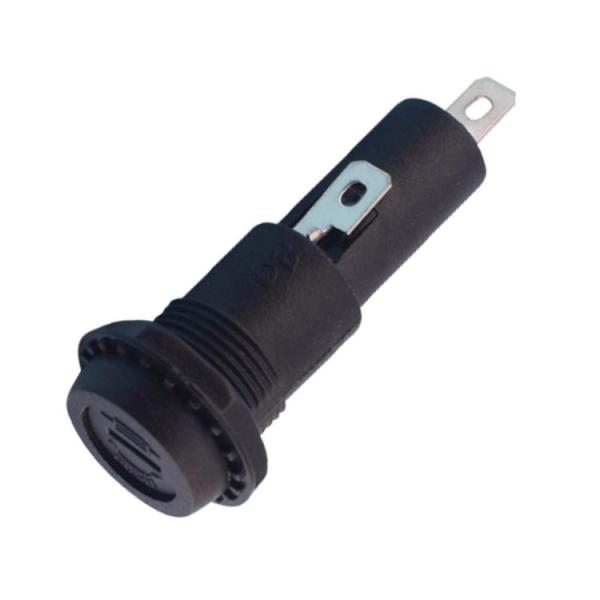

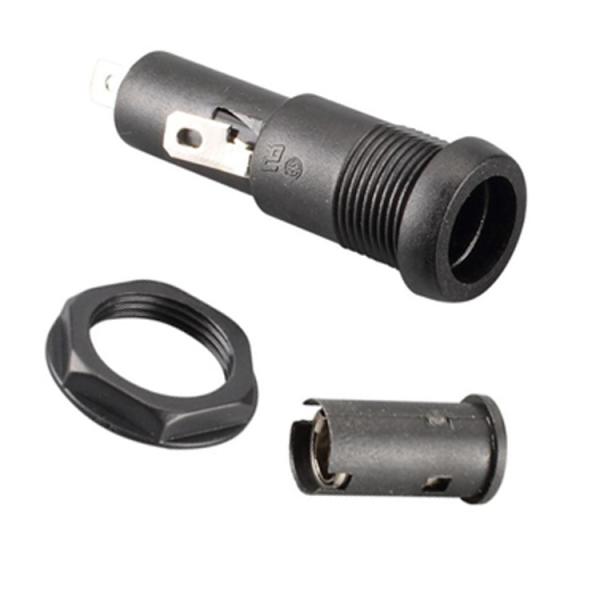

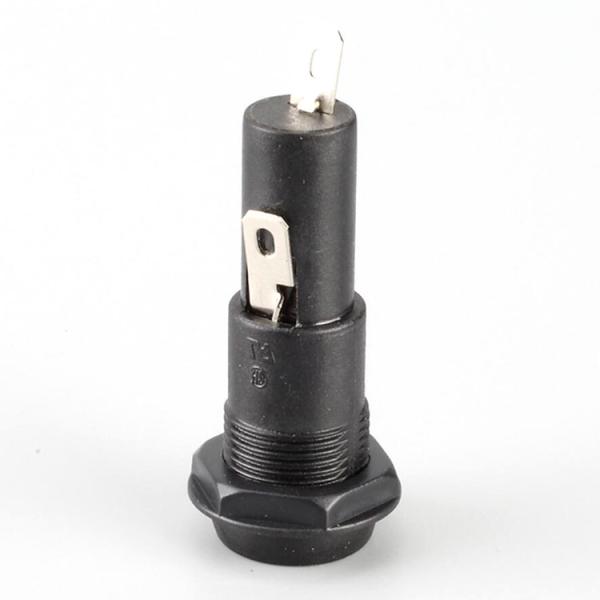

Faston Terminal Panel Mount Fuse Holders 15A 6x32 Phenolic Resin

Product Description

For 6x30 6x32mm 3AG FUSES

1. Contact Resistance: <0.02Ω
2. Withstanding Voltage: >AC3000V
3. lnsulation Resistance: 100mΩ Min @DC500V
4. Electrical: Rated at 15A 250V AC
5. Insulating Body: phenolic resin/bakelite
6. Bayonet type cap
7. Terminals: nickel-plated brass, faston type.

Drawing of H3-44 fuse holder

Please allow 1-3mm tolerance due to manual measurement.

Product Features

1. 15A 250V AC rating
2. 6.34X31,8mm fuses
3. Bayonet type cap
4. Faston terminal
5. Phenorlc resln body

Standard Package:

100pcs per bag, 1000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

• Will the fuse need to accessible for replacement?
• How often will the fuse need to be replaced?
• Should the end customer of the appliance have access to change the fuse?
• Should the fuse only be accessible from outside the appliance?
• How much is available to spend on safety and reliability?
