M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label
Specifications
Place of Origin :
China
MOQ :
50
Price :
USD $10.6~$13 per piece
Payment Terms :
T/T
Supply Ability :
1000 pieces per month
Delivery Time :
10 work days
Packaging Details :
Carton
Mount Type :
LED Indicator blade fuse block with Sticker Label
Applied to :
standard ATO/ATC Blade Fuse
No. of circuits :
12
Voltage Rating :
32V dc
Terminal type :
M4 screw
Input wire size :
4-6 AWG
Body Material :
PBT
Output wire size :
12-16AWG
Input terminal rating :
100A max
Out put terminal rating :
30A max per circuit
Operation Temperature :
-20°C~85C
PC Material :
PC
Terminal Material :
nickel plated copper
Description

Blade Fuse Block 12 Way With LED Indicator Automotive Marine Boats M5 Stud Fuse Holder Cover With Sticker Label

Product Description

  • Input wire size:#4-6 AWG.
  • Output wire size: #12-16 AWG.
  • Torque rating: 20in-lb (2.25 Nm) max.
  • Mounting torque rating: 8in-lb (0.9Nm) max.
  • Red LED indicates when fuse is broken.
  • ldentify circuits by foot print marking.
  • Clear insulating cover design for water and dust proof.
  • Easy to open by pressing the latch.

Red LED indicates when fuse is broken.

Item LED Indicator blade fuse block with Sticker Label
Qty of fuse slots 12 way
Max Rating Standard blade fuse (ATO / ATC)
Input terminal rating M5 threaded studs
Output terminal M4 screw
House material PBT
Terminal material nickel plated copper
Dimension 115x85mm
Out put rating 30A per circuit
Input rating 100A
Voltage 32V dc
Accessory Self-tapping screws and sticker labels

unique led safety indicator:The indicator light flashes red when the fuse is blown, allowing for fast and hassle free identification of a fault. Note : Fuses NOT included in this package
fuse protection cover:Transparent plastic cover with push latch system, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses
optimal conductivity:12 Volt marine fuse block box works for ATC/ATO (middle size) fuses. It has a positive and negative side, Meaning for every positive terminal screw there's a negative terminal screw, Great for branch circuit protection and have good conductivity. Max. 32V DC operating voltage. Max. 30 Amp per circuit & 100 Amp per panel.
Wide Application:Widely used in car, autos, buses, tankers, ship, marine, truck, vehicle, SUV, yacht, RV, boats etc 5 EASY TO SET UP: No need to worry about getting your fuse box ready to use. This 12 circuit fuse box is very easy to install.
Optimal Conductivity & Best Service:12-circuit ATC/ATO/ATF blades fuse block,meeting all standards of an ideal fuse box. If you have any problem with this product, please feel free to contact us. We are always ready to help.

Available in 6 ways, 8 ways, 10 ways, 12 ways

M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label

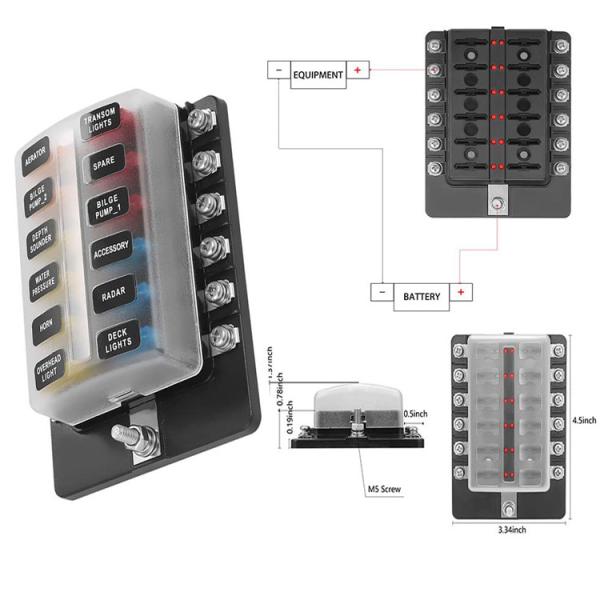

Dimension

M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label

How it works?

M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label

M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label

Applications

This car fuse box can be used widely for autos, cars, buses, subways, airplanes, boats, ships, yacht, campers, work van, RZR, enclosed trailer etc

M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label

M5 Stud 12 Way Marine Blade Fuse Holder 32V ATC With Sticker Label

Standard Package:

depends on the cable spec

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

  • Will the fuse need to accessible for replacement?
  • How often will the fuse need to be replaced?
  • Should the end customer of the appliance have access to change the fuse?
  • Should the fuse only be accessible from outside the appliance?
  • How much is available to spend on safety and reliability?

Notice

1. Replace the fuse according to the rated current value indicated in the fuse box, and do not use a fuse with a higher rated current.

2. If the new fuse is blown immediately, this indicates that the circuit system may be faulty and should be repaired as soon as possible.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.
