PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
Specifications
Model Number :
TR-08
Place of Origin :
China
MOQ :
50
Price :
USD $3~$3.5 per piece
Payment Terms :
T/T
Supply Ability :
1000 pieces per month
Delivery Time :
10 work days
Packaging Details :
Carton
Mount Type :
blade fuse holder
Applied to :
standard ATO/ATC Blade Fuse
No. of circuits :
8 way
Voltage Rating :
32V dc
Mount type :
Inline
Base Material :
PA66
Cover Material :
PC
Terminal Material :
brass
Out put terminal rating :
40A max per circuit
Terminal type :
6.3mm
Description

8 Way Blade Fuse Holder Auto Fuse Block Waterproof Fuse Box Holder With 6.3 Terminals For Bus Boat Marine RV

Product Description

Item Blade Fuse Holder Box
Qty of fuse slots 8
Max Rating 40A max per circuit.
Terminal Type 6.3mm blade
Output connections black
House material PA66 94V-1
Cap material PC UL 94V-2
Terminal material tin plated brass.

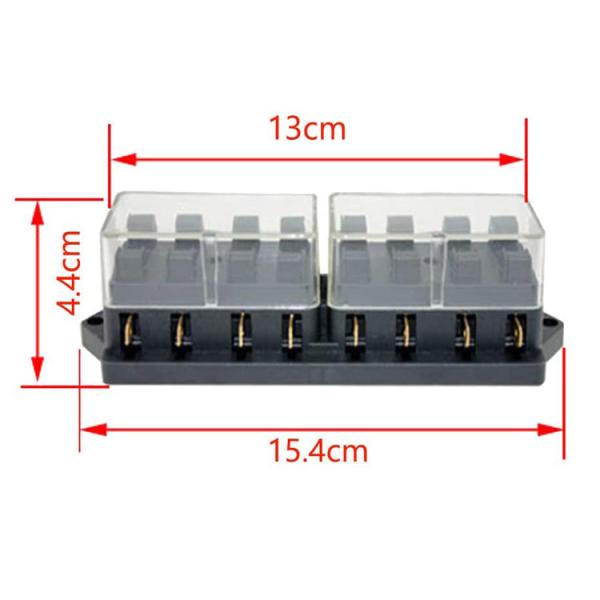

Dimension 153x53x42mm
  • Ambient temperature: -40℃ to +125℃
  • ldentify circuits by foot print marking.
  • Clear insulating cover design for water and dust proof.
  • Sturdy plastic cover with push latch system, easy to operate, protect fuse from dust, dirt and splash.
  • Voltage up to 32V DC, apply to 1~ 40 AMP.

Gallery of 8-way blade fuse holders

PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV

8 way fuse holder drawing

PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV

Application

Widely used in all automobile electric circuit, automotive electronic field, electrical devices and cars, boats van etc.

Suitable for all kinds of automotive and marine applications.

PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV

Drawing of ATO/ATC Blade Fuses

PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV

Most used amperes

PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV

PA66 6.3mm Auto Fuse Block 8 Way Waterproof Blade Fuse Holder For RV
