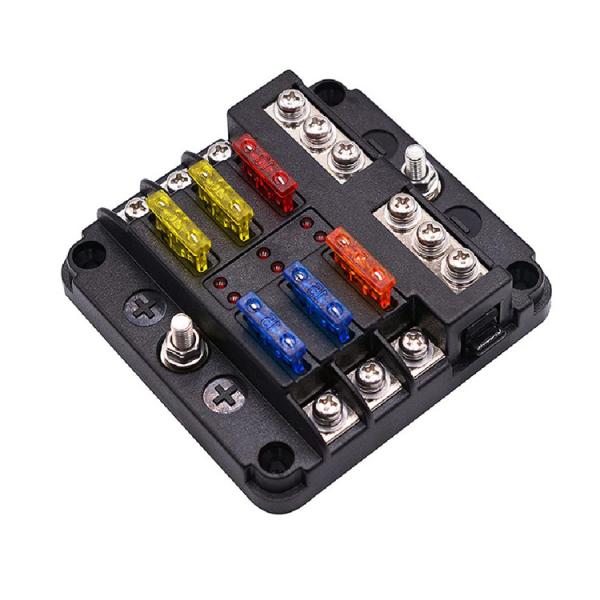

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
Specifications
Model Number :
17F-13
Place of Origin :
China
MOQ :
50
Price :
USD $7~$10 per piece
Payment Terms :
T/T
Supply Ability :
1000 pieces per month
Delivery Time :
10 work days
Packaging Details :
Carton
Mount Type :
Fuse Block with Negative Bus
Applied to :
standard ATO/ATC Blade Fuse
Base Material :
PBT
Cover Material :
PC
No. of circuits :
6 way
Terminal Material :
nickel plated brass
Voltage Rating :
32V dc
Output rating :
30A max per circuit
Input rating :
100A
Description

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

Product Description

This 6 way ATC/ATO blade fuse block holder with ground is compact.
The indicator light flashes red when the fuse is blown, allowing for fast and hassle free identification of a fault.
This fuse panel has M5 thread studs for power feed, can handle a maximum of 30 Amp per circuit with a maximum of 100 Amp per panel, and has a cover for additional protection.
Item Blade Fuse Block with ground
Qty of fuse slots 6
Max Rating Standard blade fuse (ATO / ATC)
Input terminal rating 100A, 32V DC; M5 threaded studs
Input wire size. #4~6 AWG
Output terminal rating 30A max Per Circuit; M4 threaded studs
Output wire size #12~16 AWG
Net Weight 176g
Operation Temp -30°C~85°C

Features
LED WARNING INDICATOR: this fuse block with negative bus can easily identify & replace blown fuses immediately without guessing! The LED indicator lights up when a blown fuse is detected. It is both safe and easy for you to check and replace the blown fuse.
WIDE USE: This fuse block holder with ground is suitable for all vehicles with a 10-32 Volt DC power source. So it come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor; widely used in vehicle, car, marine , bus, ship, tanker, subway etc
PREMIUM QUALITY: The 6 way fuse box with ground buss is crafted to perfection with the best quality materials and with special attention to detail so it can be incredibly efficient and durable. The fuse box has LED light indicators and a strong construction for guaranteed results.base:PBT,cap:PC,terminal:Nickel plated copper,screw:Stainless steel,label:PP*70
EASY TO SET UP: No need to worry about getting your fuse box ready to use. This 6 circuit fuse box holder with ground is very easy to install.
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
Accessories
6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator
Dimension

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

Application

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

Drawing of ATO/ATC Blade Fuses

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

Most used amperes

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

6 Way Fuse Block with Ground 6-Circuit ATC/ATO Fuse Box Holder with Negative Bus LED Light Indicator

Fuse Colors & Ratings

Color Current rating
Black 1 A
Grey 2 A
Violet 3 A
Pink 4 A
Tan 5 A
Brown 7.5 A
Red 10 A
Blue 15 A
Yellow 20 A
Transparent 25 A
Green 30 A
Blue-green 35 A
Orange 40 A
Red 50 A
Blue 60 A
Amber/tan 70 A
Transparent 80 A
Violet 100 A

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.
