Specifications
Brand Name :
Tianrui
Model Number :
TR-G113-2
Place of Origin :
China
MOQ :
1000
Price :
USD $0.5~$1 per piece
Payment Terms :
T/T
Supply Ability :
10K pieces per week
Delivery Time :
15 days
Packaging Details :
cartons
Item Name :
ntc thermistor temperature sensor
P/N :
TR-G113-2
Tip Size :
Φ4x21mm
Tip Material :
Stainless Steel
R25℃ :
100KΩ
B25/50 :
3950K
Accuracy :
1%
RoHS Compliant :
Yes
Halogen free :
Yes
Cable Length :
Customized
Description

T Type Flanged NTC Thermistor Temperature Sensor 100KΩ 3950K for Coffee Makers

Product Description

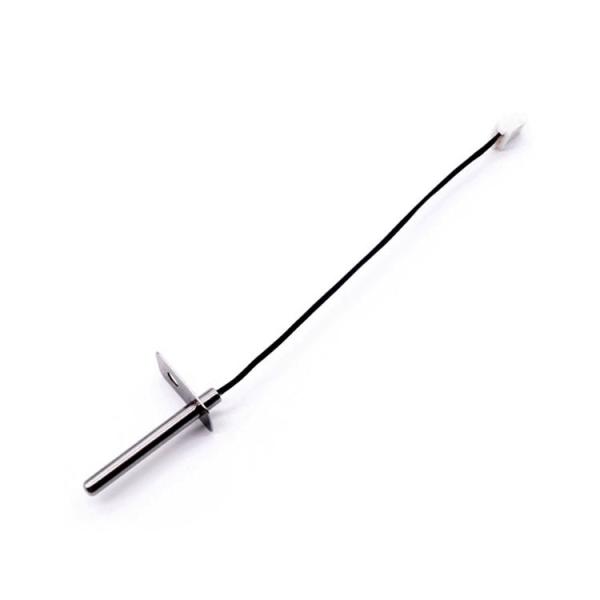

The temperature sensor of this series is mainly composed of tube shell, thermistor, wire, connector and so on. Its main feature is that the tube shell is composed of a straight pipe and a flange piece. The flange piece has mounting holes that can be fixed by screws. This product is widely used in home appliances, such as microwave ovens, clothes dryers, electric kettles, water dispensers and so on.

Item T Shape NTC Sensor
Part No. TR-G113-2
Probe size Ø4x21
Flange sIze 25mm
Hole Dia Ø3.5/7mm
Hole Distance 11mm
Housing Material Stainless steel
R25 100K
B Value 3950K
Tolerance 1%
Connector -30℃～+150℃
NTC MF58
Wire Teflon, 10MM-1000MM, or customized

T Type Temperature NTC Thermistor Sensor 100KΩ 100K For Coffee Makers

Application

Health pot,electric kettle, coffee maker,food processor, etc.

Features


1. Adopt brand-new technology, stable product performance and long-term work. (Annual resistance drift rate ≤1%)

2. The resistance value and B value have high precision, good consistency and interchangeability. (The accuracy of resistance value and B value can reach ±0.5% respectively)

3. High sensitivity and rapid response. (The temperature coefficient of resistance can reach -(2~5)%/℃)

4. The double-layer sealing process is adopted, which has good insulation and sealing performance, resistance to mechanical collision, bending resistance, and high reliability.

5. It can be packaged according to the installation conditions used, which is convenient for users to install.

6. It can be made into a high-dissipation product, and the test current can be much higher than that of a sensor with a traditional structure, simplifying the test circuit.


Customization
Commonly used resistance values: 5K, 10K, 15K, 20K, 50K, 100K


Commonly used B values: 3950 and 3435 and 3470, 3380, etc.


Accuracy: 1%, 3%, 5%

All types of T Shape ntc sensors with flange

T Type Temperature NTC Thermistor Sensor 100KΩ 100K For Coffee Makers

What is a thermistor?

A thermistor is a type of resistor whose resistance is strongly dependent on temperature, more so than in standard resistors. The word is a combination of thermal and resistor. Thermistors are widely used as inrush current limiters, temperature sensors (negative temperature coefficient or NTC type typically), self-resetting overcurrent protectors, and self-regulating heating elements (positive temperature coefficient or PTC type typically). An operational temperature range of a thermistor is dependent on the probe type and is typically in between −100 °C (173 K) and 300 °C (573 K).

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Test Equipment
  • T Type Temperature NTC Thermistor Sensor 100KΩ 100K For Coffee Makers
  • Company warehouse
  • T Type Temperature NTC Thermistor Sensor 100KΩ 100K For Coffee Makers
  • Founded in 1999, we focus on manufacturing fuses for over-current, over-temperature and other circuit protection and sensing components. Our products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters.
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.

Item T Shape NTC Sensor
Part No. TR-G113-2
Probe size Ø4x21
Flange sIze 25mm
Hole Dia Ø3.5/7mm
Hole Distance 11mm
Housing Material Stainless steel
R25 100K
B Value 3950K
Tolerance 1%
Connector -30℃～+150℃
NTC MF58
Wire Teflon, 10MM-1000MM, or customized
