Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals
Specifications
Model Number :
TR-506A2
Place of Origin :
China
MOQ :
1000
Price :
USD $0.3~$0.5 per piece
Payment Terms :
T/T
Supply Ability :
50K pieces per week
Delivery Time :
10 work days
Packaging Details :
Carton
Item Name :
Fuse Holder, Fuse Clip
Mounting Type :
PC Board
Voltage Rating :
32V dc
Current Rating :
20A
Applied to :
ATO ATC ATS ATU Medium Blade Fuses
RoHS Compliant :
Yes
Body Material :
nylon
Terminal Material :
tinned brass
Terminal Thickness :
0.4mm
Description

32V 20A PCB Blade Fuse Holder ATO ATC ATS ATU Automotive Medium Fuse Clip PCB Mount With 2 Tinned Brass Terminals

Product Description

  • For ATO ATC ATS ATU Medium Blade Fuses
  • PA66 body; Tin plated brass contacts, T=0.4mm;
  • 20A 32Vdc rating
  • Contact Resistance:Max.50mQ
  • Insertion & Extraction Force 2.0~5.0kgs.
  • Dielectric Strength: Min.AC 1000 V
  • lnsulation Resistance: At 500 VDC,100MQ Min.
Item Name Blade Fuse Clip
Mounting way PCB
Body Color black
Body Length 19.4mm
Body thickness 5.4mm
Height 11mm
Terminal Width 7mm
Terminal Thickness 0.4mm

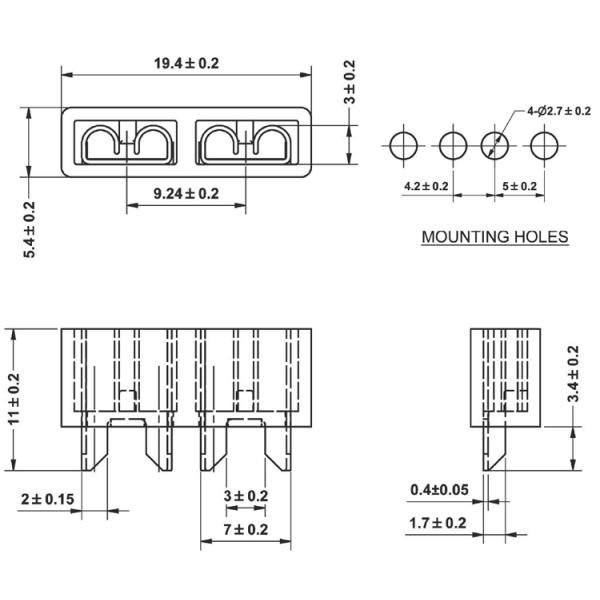

Drawing of TR-506A2 Blade Fuse Holder

Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals

Blade Fuse Group

Medium ATS Blade Fuse Holders 32V 20A Automotive With Brass Terminals

Blade size Blade group Dimensions L × W × H Common ratings (maximum current)
Micro2 APT, ATR 9.1 × 3.8 × 15.3 mm 5, 7.5, 10, 15, 20, 25, 30
Micro3 ATL 14.4 × 4.2 × 18.1 mm 5, 7.5, 10, 15
LP-Mini APS, ATT 10.9 × 3.81 × 8.73 mm 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini APM, ATM 10.9 × 3.6 × 16.3 mm 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A
Regular APR, ATC, ATO, ATS 19.1 × 5.1 × 18.5 mm 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi APX 29.2 × 8.5 × 34.3 mm 20, 25, 30, 35, 40, 50, 60, 70, 80, 100

Colors & Ratings

Color Current rating
Black 1A
Grey 2A
Violet 3A
Pink 4A
Tan 5A
Brown 7.5A
Red 10A
Blue 15A
Yellow 20A
Transparent 25A
Green 30A
Blue-green 35A
Orange 40A

Incoterm:

EXW, DDU, DDP, C&F, FOB

Shipping:

Express, By Air, By Sea

Notice

1. Replace the fuse according to the rated current value indicated in the fuse box, and do not use a fuse with a higher rated current.

2. If the new fuse is blown immediately, this indicates that the circuit system may be faulty and should be repaired as soon as possible.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: 3 days if the goods are in stock, 10 days if the goods not in stock.

Q: Do you provide samples ? is it free ?

A: Yes, we could offer the samples for free charge but do not pay for the shipping.

Q: What are your terms of payment ?

A: T/T, 100% in advance

32V 20A PCB Blade Fuse Clips for ATO ATC ATS ATU Standard Car Fuses

Item Name Blade Fuse Clip
Mounting way PCB
Body Color black
Body Length 19.4mm
Body thickness 5.4mm
Height 11mm
Terminal Width 7mm
Terminal Thickness 0.4mm

Nylon body; Tin plated brass contacts.

Rated at 20A 32Vdc

Contact Resistance: Max.50mQ

Insertion & Extraction Force 2.0~5.0kgs.

Dielectric Strength: Min.AC 1000 V

lnsulation Resistance: At 500 VDC,100MQ Min.
