UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
Specifications
Brand Name :
REOMAX
Model Number :
MTS
Certification :
UL cuL VDE CQC PSE KC
Place of Origin :
China
MOQ :
1000
Price :
USD $0.05~$0.1 per piece
Payment Terms :
T/T
Supply Ability :
1 million pieces per month
Delivery Time :
10 work days
Packaging Details :
bulk package: 1000pcs per bag; tape package: 1000pcs per box
Item PTC Resettable FuseName :
Micro Fuse
Part No. :
MTS
Blow type :
One-time
Mounting Type :
radial leaded
Vmax :
250V ac
Ih :
50mA~10A
RoHS Compliant :
Yes
Halogen free :
Yes
Bulk Pack :
1000pcs per bag
Tape Pack :
1000pcs per box
Certificates :
UL cuL VDE CQC PSE KC
Description

Features of UL cuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse Miniature Fuse

  • Slow blow
  • Short and long leads available
  • Tape or bulk package available
  • Internationally certified
  • Compact design
  • Solderable or plug-in mounting
  • Low internal resistance
  • Shock safe casing
  • Vibration resistant
  • Halogen and lead free
  • RoHS compliant
  • UL 94V-0 Case

Certifications of MTS Micro Fuse Radial Lead Slow Blow Square Fuse Miniature Fuse

Agency Ampere Range Agency File Number
UL 50mA ~ 20A E340427 (JDYX2 )
CQC 50mA ~ 10A
QQC11012061981
cUL 50mA ~ 6.3A E340427(JDYX8)
VDE 50mA ~ 6.3A 40039420
PSE 50mA ~ 6.3A PSE13020693
KC 50mA ~ 6.3A SU05045-14001/2/3

Electrical Ratings of MTS Micro Fuse Radial Lead Slow Blow Square Fuse Miniature Fuse

Part

No.

Ampere

Rating

Voltage

Rating

Max Voltage

Drop (mv)

I2TMelting

Integral(A2.S)

 Agency Approvals
UL TUV CUL VDE CCC PSE KC
MTS0050A 50mA 250V 1600 0.015 ● ○ ● ○ ○ ○ ○
MTS0063A 63mA 250V 1600 0.016 ● ○ ● ○ ○ ○ ○
MTS0080A 80mA 250V 1500 0.017 ● ○ ● ○ ○ ○ ○
MTS0100A 100mA 250V 1500 0.02 ● ○ ● ○ ○ ○ ○
MTS0125A 125mA 250V 760 0.10 ● ○ ● ○ ○ ○ ○
MTS0160A 160mA 250V 500 0.15 ● ● ● ○ ○ ○ ○
MTS0200A 200mA 250V 260 0.21 ● ● ● ● ● ○ ●
MTS0250A 250mA 250V 240 0.48 ● ● ● ● ● ○ ●
MTS0315A 315mA 250V 220 0.78 ● ● ● ● ● ○ ●
MTS0400A 400mA 250V 200 1.22 ● ● ● ○ ○ ○ ○
MTS0500A 500mA 250V 190 2.11 ● ● ● ● ● ● ●
MTS0630A 630mA 250V 180 2.88 ● ● ● ○ ○ ○ ○
MTS0800A 800mA 250V 160 3.92 ● ● ● ○ ○ ○ ○
MTS1100A 1A 250V 140 5.77 ● ● ● ● ● ● ●
MTS1125A 1.25A 250V 130 8.34 ● ● ● ○ ○ ○ ○
MTS1160A 1.6A 250V 120 13.60 ● ● ● ● ● ○ ●
MTS1200A 2A 250V 100 26 ● ● ● ● ● ● ●
MTS1250A 2.5A 250V 100 42 ● ● ● ● ● ○ ●
MTS1300A 3A 250V 100 45 ● ● ● ○ ○ ○ ○
MTS1315A 3.15A 250V 100 90 ● ● ● ● ● ● ●
MTS1350A 3.5A 250V 100 100 ● ● ● ○ ○ ○ ○
MTS1400A 4A 250V 100 120 ● ● ● ○ ○ ○ ○
MTS1500A 5A 250V 100 170 ● ● ● ● ● ● ●
MTS1630A 6.3A 250V 100 290 ● ● ● ● ● ○ ●
MTS1800A 8A 250V 100 320 ○ ● ● ○ ● ○ ○
MTS2100A 10A 250V 95 450 ○ ● ● ○ ● ○ ○

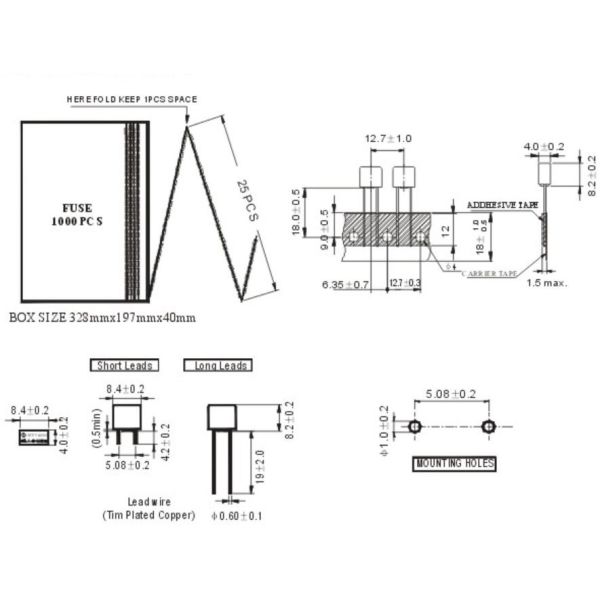

Dimension

UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse

NO. Part Name Material
1

Cap

 Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
2 Base Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
3 Fuse element Alloy
4 Lead wire Copper, Tin-plated

Breaking Capacity (35A or 10In, whichever is greater at 250V AC)

% of Ampere Rating(In) Blowing Time
150%* In 60 min Minimum
210%* In 2 min Max
275%* In 400 ms~10 s
400%* In 150 ms~3 s
1000%* In 20 ms~150 ms

Package

A. Bulk packing:

Bulk 1000 pcs in per poly bag;

B. Tape packing:

1000 pcs per inner box

Related Micro Fuses

Series No. Size Blow Type Current Range Voltage Color Approvals
MTS 8*4*8mm Time-Lag 50mA~10A 250V Black/

UL/CUL/PSE/VDE/

KC/TUV/CCC
MFS 8*4*8mm Quick Acting 50mA~10A 250V Black UL/CUL/TUV
NTS 8*4*8mm Time Delay 50mA~10A 300V Black UL/CUL/TUV/CQC
NFS 8*4*8mm Fast Blow 50mA~10A 300V Black UL/CUL/TUV
TMS 8*4*8mm Slow Blow 50mA~10A 350V Black UL/CUL/TUV
FMS 8*4*8mm Fast Acting 50mA~10A 350V Black UL/CUL/TUV

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

  • Will the fuse need to accessible for replacement?
  • How often will the fuse need to be replaced?
  • Should the end customer of the appliance have access to change the fuse?
  • Should the fuse only be accessible from outside the appliance?
  • How much is available to spend on safety and reliability?

5.1.2. Requirements and characteristics

The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:

  • IEC-publication 257 (1968) and Amendment no. 2 to this publication dated January 1989.
  • UL-standard no. 512.

Test Equipment
  • UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
  • Company warehouse
  • UL CuL VDE CQC PSE KC MTS Micro Fuse Radial Lead Slow Blow Square Fuse 250V T1A T2A T3.15A T5A T6.3A Miniature Fuse
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay for the shipping cost.

Q: What are your terms of payment ?

A: 100% in advance, T/T.
