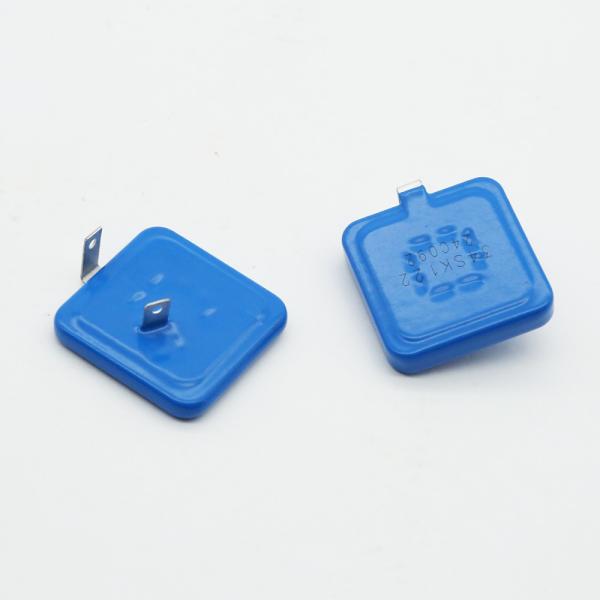

34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
Specifications
Brand Name :
Tianrui
Model Number :
34S series
Certification :
ROHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
100% TT,Paypal
Supply Ability :
5000pcs every day
Delivery Time :
3 days
Packaging Details :
Carton
Structure :
Metal Oxide Varistor (MOV)
Application :
AC/DC System
Withstanding Surge Current :
40KA
Varistor Voltage :
U1mA=621V(558V~682V)
Operating Temperature :
-40 to +85 deg C
Single-Pulse Maximum Energy(2ms) :
800J
Description
Product Name
34S Series 34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems
Withstanding Surge Current
40kA
Varistor Voltage
U1mA=621V(558V~682V)
Leakage Current
≤10μA (75% of U1mA(DC),25℃)
Terminal Type
Tinned copper plate
Single-Pulse Maximum Energy(2ms)
800J
Feature
Protection of the post-stage circuit


Photos

34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems

Size

34MM Square Epoxy Coated 40kA Zinc Metal Oxide Varistor MOV for Electronic SPD Solar Systems

Features
• Wide operating voltage (V1mA) range from 240V~1600V
• Fast responding to transient over-voltage.
• Large absorbing transient energy capability.
• Low clamping ratio and no following-on current.
General Information
• Surge protection in consumer electronics
• Surge protection in industrial electronics
• Relay and electromagnetic valve surge absorption
• Transistor, diode, IC, thyristor or triac semiconductor protection
• Surge protection in electronic home appliances, gas and petroleum appliances
