Specifications
Brand Name :
UMI
Model Number :
12 series
Place of Origin :
China
MOQ :
1000
Price :
USD0.15~0.2/pc
Payment Terms :
T/T
Supply Ability :
100K pieces per week
Delivery Time :
10 working days
Packaging Details :
1000 pcs per box
Description
Uchihashi Tamura 12 Series Thermal Link Fuse 1A 1.5A 2.0A 250V Thermal Cutoff Fuse 12G 12Y 12E 122 12X 12M 12J 12H
Product Description:
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.

Features:
  • It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
  • It is the smallest thermal fuse in the world. 1.4mm diameter.
  • It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
  • Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
  • It has excellent thermal properties.
  • It uses an insulated container.
Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H
Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H
Wire length Dimensions (mm)
A B C D E
standard 9.0±0.5 38±3.0 2.5±0.1 3.0 or below 0.6±0.05
Long 9.0±0.5 68±3.0 2.5±0.1 3.0or below 0.6±0.05

Specification:

Model Temperature rating
Tf(℃)		 Operating temperature
(℃)		 Maintain temperature
Th(℃)		 Maximum operating temperature
(℃)		 Maximum limit temperature
Tm(℃)		 Current rating
(A)		 Rated voltage
(V)

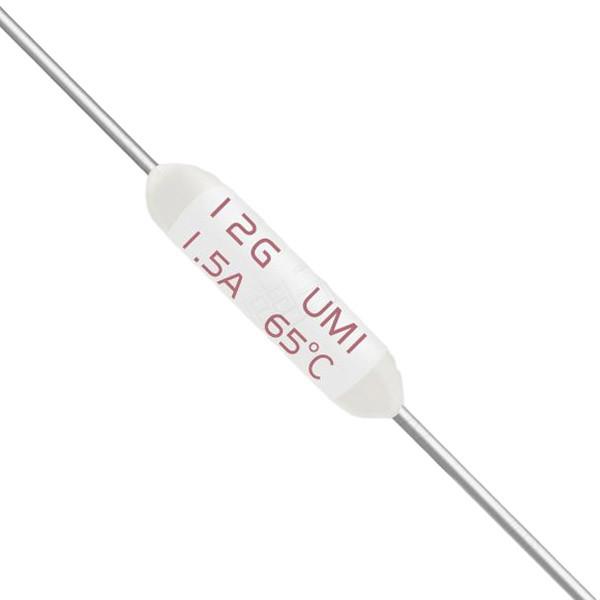

12G 65 62±3 49 42 200 1.5 AC250
12Y 76 72±3 57 52 200 2.0 AC250
12E 108 104±3 88 82 200 2.0 AC250
122 115 112±2 89 89 200 2.0 AC250

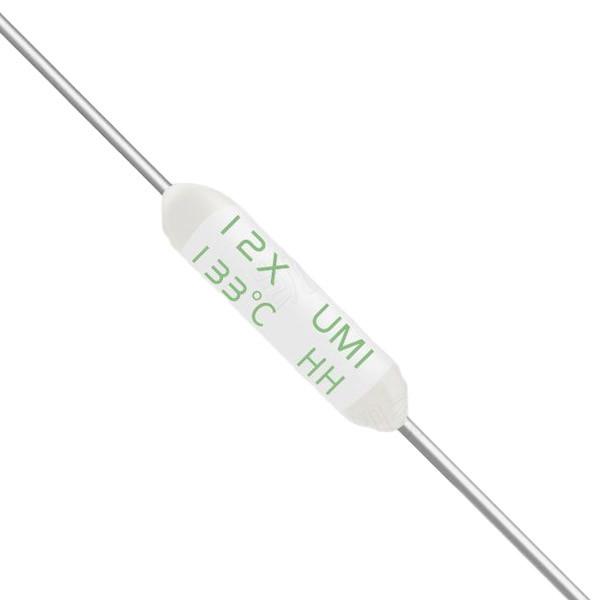

12X 133 129±3 116 92 200 2.0 AC250
12M 139 135±3 122 117 200 1.5 AC250
12J 145 141±3 125 115 200 2.0 AC250
12H 221 218±2 147 147 250 1.0 AC250


Certifications:

Model Get certified
PSE UL C-UL VDE Self-certification KC
12G JET5267-32001-1008 E50082 E50082 40009981
2020980205000100
(AC250V)
 SU05029-9002
12Y JET5267-32001-1008 E50082 E50082 40009981 2020980205000097 SU05029-9002
12E JET5267-32001-1004 E50082 E50082 40009981 2020980205000097 SU05029-8003
122 JET5267-32001-1004 E50082 E50082 40003729 2020980205000097 SU05029-8003
12X
JET5267-32001-1007
(AC250V,AC125V)
 E50082 E50082 40009981 2020980205000101
SU05029-8001
(AC250V)
12M
JET5267-32001-1005
(AC250V)
 E50082 E50082 40009981
2020980205000073
(AC250V)
SU05029-8001
(AC250V)
12J JET5267-32001-1006 E50082 E50082 40003729 2020980205000097 SU05029-8001
12H - E50082 E50082 923000-1171-0012 - -

Working Principle

When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.

Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H

Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H

Uchihashi Tamura 12 Series Thermal Link Fuse 1A 1.5A 2.0A 250V Thermal Cutoff Fuse 12G 12Y 12E 122 12X 12M 12J 12H
Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H
Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H

Various types of Thermal Fuse Links are available

Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H

Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H

Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H

Uchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12HUchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12HUchihashi Tamura 12 Series Thermal Fuse 1A 1.5A 2.0A 250V Temperature Fuse 12G 12Y 12E 122 12X 12M 12J 12H​
