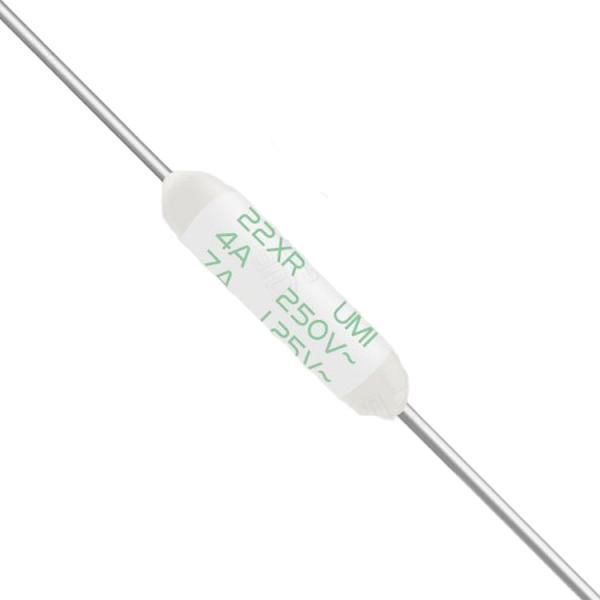

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
Specifications
Brand Name :
UMI
Model Number :
22 series
Place of Origin :
China
MOQ :
1000
Price :
USD0.15~0.2/pc
Payment Terms :
T/T
Supply Ability :
100K pieces per week
Delivery Time :
10 working days
Packaging Details :
1000 pcs per box
Description
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
Product Description:
A thermal fuse, also known as a thermal cutoff or thermal link, is a safety device used to protect electrical appliances and circuits from overheating. It operates by interrupting the electrical current when the temperature exceeds a predetermined threshold, thereby preventing potential fire hazards or damage to the equipment.

Features:
  • It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
  • It is the smallest thermal fuse in the world. 1.4mm diameter.
  • It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
  • Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
  • It has excellent thermal properties.
  • It uses an insulated container.
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
Wire length Dimensions (mm)
A B C D E
standard 11.5±0.5 37±3.0 3.3±0.2 3.6 or below 1.0±0.05
Long 11.5±0.5 67±3.0 3.3±0.2 3.6 or below 1.0±0.05

Specification:

Model Temperature rating
Tf(℃)		 Operating temperature
(℃)		 Maintain temperature
Th(℃)		 Maximum operating temperature
(℃)		 Maximum limit temperature
Tm(℃)		 Current rating
(A)		 Rated voltage
(V)
22YR 76 72±3 56 49 200 4.0 AC250
22ER 108 104±3 89 81 200 4.0 AC250
222R 115 112±3 92 89 200 5.0 AC250
22XR 133 129±3 117 91 200 4.0 AC250
22MR 139 135±3 122 114 200 2.5 AC250
22JR 145 141±3 125 115 200 3.5 AC250
22HR 221 218±3 195 190 250 3.0 AC250


Certifications:

Model Get certified
PSE UL C-UL VDE Self-certification KC
22YR JET5267-32001-1013 E50082 E50082 40009812
2020980205000086
(AC250V)
SU05029-9002
(AC250V)
22ER JET5267-32001-1012 E50082 E50082 40009812
2020980205000086
(AC250V)
SU05029-8003
(AC250V)
222R JET5267-32001-1004 E50082 E50082 40007525
2020980205000104
(AC250V)
SU05029-8003
(AC250V)
22XR JET5267-32001-1014 E50082 E50082 40009812
2020980205000086
(AC250V)
SU05029-8001
(AC250V)
22MR JET5267-32001-1005 E50082 E50082 40009812
2020980205000085
(AC250V)
SU05029-8001
(AC250V)
22JR JET5267-32001-2002 E50082 E50082 40007525
2020980205000099
(AC250V)
SU05029-8001
(AC250V)
22HR - - - - - -

Working Principle

When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

Various types of Thermal Fuse Links are available

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link FuseUMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link FuseUMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse​

UMI TAM 22 Series 2.5A 3.0A 3.5A 4.0A 5.0A 250V Thermal Cutoff Fuse 22YR 22ER 222R 22XR 22MR 22JR 22HR Thermal Link Fuse
