UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection
UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection
Specifications
Brand Name :
UMI
Model Number :
T6D
Place of Origin :
China
MOQ :
1000
Price :
USD0.15~0.2/pc
Payment Terms :
T/T
Supply Ability :
100K pieces per week
Delivery Time :
10 working days
Packaging Details :
1000 pcs per box
Description

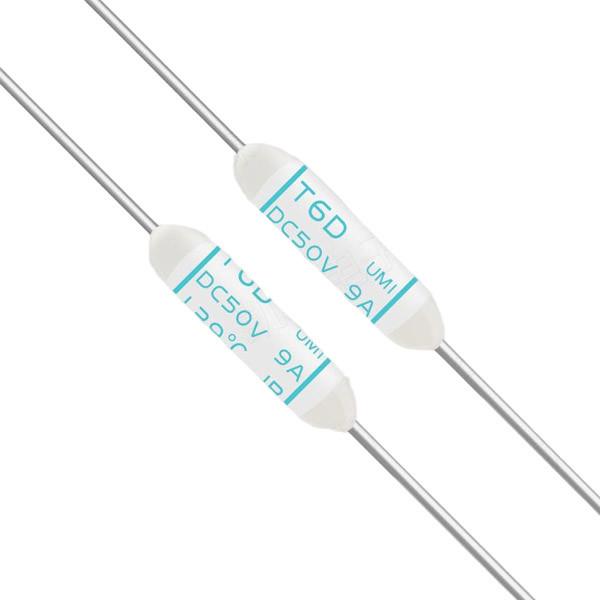

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection
Product Description:
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

Features:
  • Stable operation and high precision.
  • Ceramic case, heating response quickly.
  • Epoxy resin sealing.
  • Free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
  • Very simple structure, the product is less affected by time changes, and the reliability is high
UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection
Dimensions (mm)
A B C D E
6.3±0.3 2.0±0.1 2.3 or below 0.7±0.05 38±3.0

Specification:

Model Temperature rating
Tf(℃)		 Operating temperature
(℃)		 Maintain temperature
Th(℃)		 Maximum operating temperature
(℃)		 Maximum limit temperature
Tm(℃)		 Current rating
(A)		 Rated voltage
(V)
T6D 139 134±2 77 72 200 9.0 DC50

Certifications:

Model Get certified
UL C-UL VDE Self-certification
T6D E73591 E73591 40009915 2020980205000119


Working Principle

When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

Application Field:
Widely used for overheating protection of batteries

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

Various types of Thermal Fuse Links are available

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection

UMI TAM T6D 9A 50V Thermal Cutoff Fuse Links For Battery Protection
