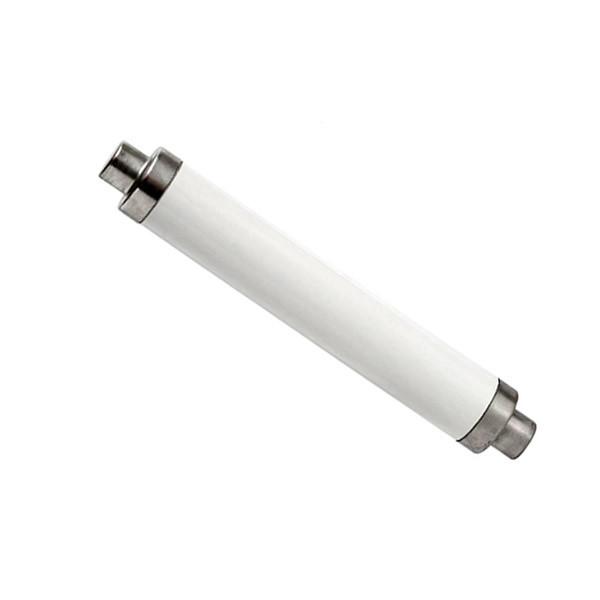

24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse
Specifications
Model Number :
XRNT
Place of Origin :
China
MOQ :
10
Price :
USD $10~35 per piece
Payment Terms :
T/T
Supply Ability :
10K pieces per month
Delivery Time :
20 days
Item Name :
XRNT HRC Fuse
Mounting Type :
cartridge
Tube material :
ceramic
Cap material :
nickel plated copper
Voltage Rating :
12KV 24KV 40.5KV
Current Rating :
3.15A 6.3A 10A 16A 20A 25A 31.5A 40A 50A 63A 80A 100A 125A 160A 200A 250A
Interrupting Capacity :
31.5KA 50KA
Dia :
51mm 63mm 76mm 88mm
Length :
292mm 442mm 537mm
Description

XRNT High Voltage HRC Fuse with Striker

XRNT HRC Fuses.pdf

This product can be used in indoor electrical system of ac 50HZ and rated voltage of 3.6~40.5KV for over-loading or short circuit protection for transformers and other appliance. XRNT high voltage fuses are designed with the plug-in structure and to be inserted into the holder, which is easy for replacement.

Type Rated Voltage Rated Current(A) size
XRNT-12 12KV 3.15A,6.3A,10A,16A,20A,25A,31.5A,40A 51x292mm
XRNT-12 12KV

50A,63A,71A,80A,100A,125A

 76x292mm
XRNT-12 12KV 160A,200A,250A 88x292mm
XRNT-24 24KV

3.15A,6.3A,10A,16A,20A,25A,31.5A,40A

 51x442mm
XRNT-24 24KV 50A,63A,80A,100A,125A 76x442mm
XRNT-24 24KV 125A,160A,200A 88x442mm
XRNT-36 36KV 3.15A,6.3A,10A,16A,20A,25A 51x537mm
XRNT-36 36KV 25A,31.5A,40A 76x537mm
XRNT-36 36KV 50A,63A,80A,100A,125A 88x537mm
XRNT-40.5 40.5KV

3.15A,6.3A,10A,16A,20A,25A

 51x537mm
XRNT-40.5 40.5KV 25A,31.5A,40A 76x537mm
XRNT-40.5 40.5KV 50A,63A,80A,100A,125A 88x537mm

24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse

XRNT Fuse (English Introduction)‌
1. ‌Definition & Core Features‌
A ‌high-voltage current-limiting fuse‌ designed for full-range protection in electrical systems, covering both short-circuit and overload scenarios‌67.
‌Voltage ratings‌: Supports systems up to ‌40.5kV‌, with common specifications including 3.6kV, 12kV, and 24kV‌6.
‌Current ratings‌: Adjustable fuse-element ratings (e.g., 0.5A–63A) to match diverse load requirements‌68.
2. ‌Technical Specifications‌
‌Breaking capacity‌: High interrupting capability (up to ‌50kA‌) for rapid fault isolation, minimizing equipment damage‌78.
‌Design‌: Combines ‌current-limiting‌ and ‌non-current-limiting‌ mechanisms to protect against both low-level and high-level faults‌68.
3. ‌Applications‌
Widely used in ‌industrial power networks‌, ‌wind turbine systems (40.5kV)‌, and ‌substations‌ to safeguard transformers, capacitors, and switchgear‌67.
Compatible with ‌gas-insulated switches‌ and modular switchgear installations‌7.
4. ‌Key Advantages‌
‌Full-range protection‌: Eliminates the need for multiple fuses by covering all fault currents from minimal to maximum thresholds‌68.
‌Fast response‌: Limits peak short-circuit currents, enhancing system safety‌78.
‌Standard compliance‌: Meets IEC/IEEE standards for medium- to high-voltage applications‌67.
5. ‌Model Identification‌
Example: XRNT-40.5kV/31.5A denotes a 40.5kV-rated fuse with a 31.5A current capacity‌67.
This fuse type ensures reliable protection in critical infrastructure, balancing performance and adaptability‌67.

What is the maximum rating of HRC fuse?

Preferred rating of HRC fuses are 2, 4, 6, 10, 16, 25, 30, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 630, 800, 1000, and 1250 amperes

What is HRC in fuse?
An HRC fuse, or High Rupturing Capacity fuse, is designed to handle high fault currents without exploding or causing damage to the surrounding equipment. HRC fuses are known for their ability to protect electrical circuits by breaking the circuit when the current exceeds a specific threshold.

Pictures of XRNT HRC fuses

24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse

24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse

24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse24KV 3.15 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 200 Amps 50KA High Rupturing Capacity XRNT fuse

3.15A 6.3A 10A 16A 20A 25A 31.5A 40A

Diameter: 51mm

50A 63A 80A 100A 125A

Diameter: 76mm

160A 200A 250A

Diamter: 88mm

12KV

Length: 292mm

24KV

Length: 442mm

36KV/ 40.5KV

Length: 537mm

XRNT High Voltage HRC Fuse with Striker
