Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse
Specifications
Brand Name :
Tianrui
Model Number :
TR6302
Certification :
ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
100% TT,Paypal
Supply Ability :
5000pcs every day
Delivery Time :
10-14 days
Packaging Details :
Carton
Ampere :
30A
Voltage :
250V
For :
6.35*30mm
Wire :
16#-22#
Material :
Thermoplastic Rubber/ PVC
Description
Product Name
Yellow Orange Plastic Waterproof Inline Glass Holder Fuseholder for 6 x 30mm Fuse
Fit for
6x30mm
Protection grade
IP67
Material
Thermoplastic Rubber/PVC,Tin plated brass
Mounting style
In-line
Rated
30A 250V
Wire
1015 AWG14-24 (It can be customized)
Wire size
12# to 22#
Withstanding Voltage
>AC2000V/1min
lnsulation Resistance
≥100mΩ DV500V
Operating temperature
50deg C to185deg C

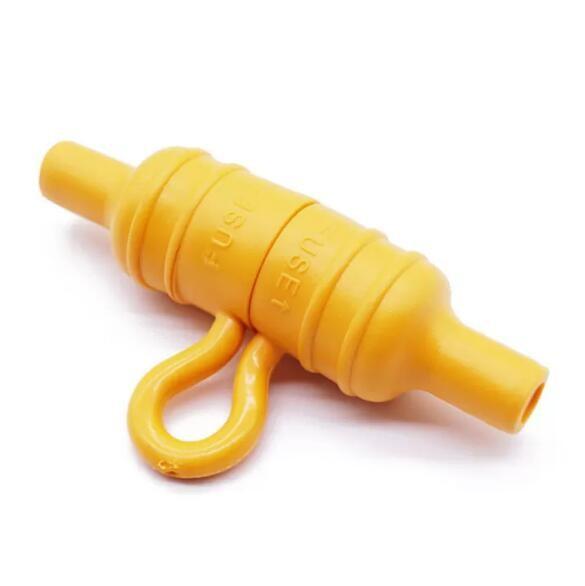

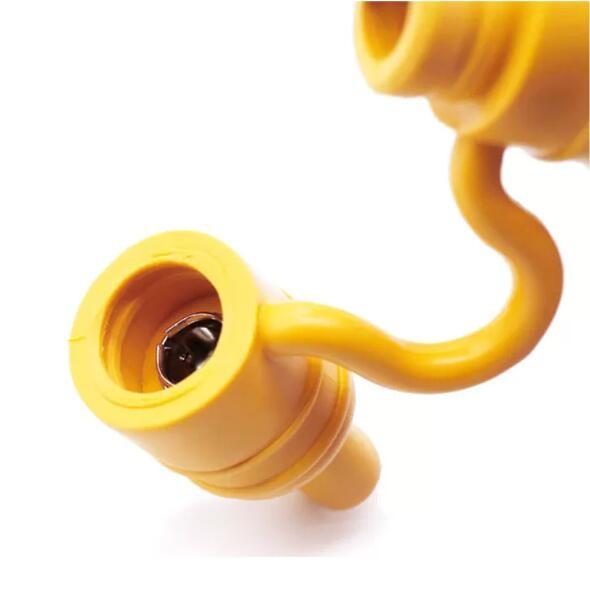

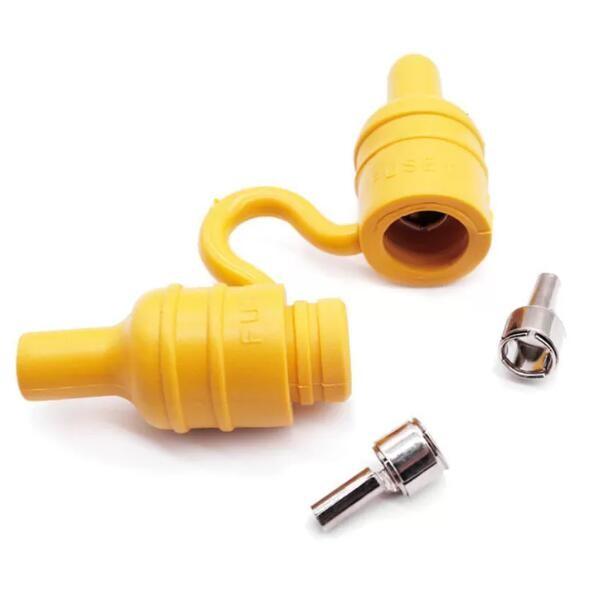

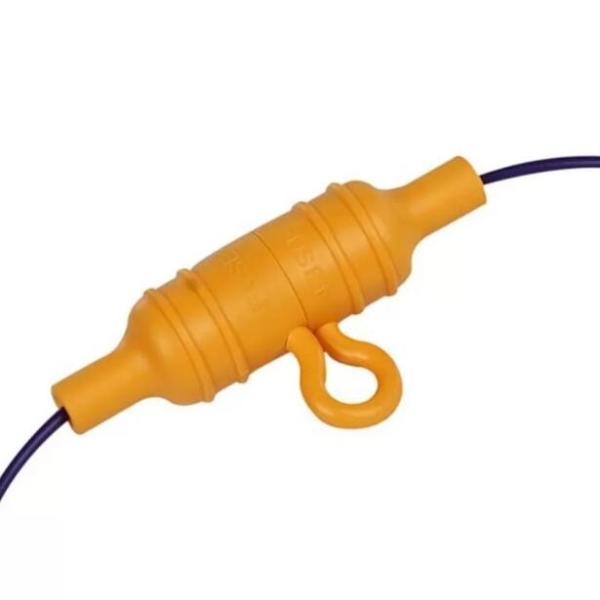

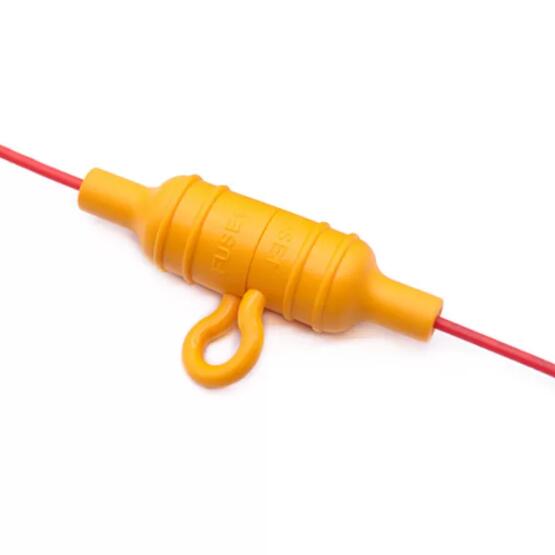

Photos

Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm FuseYellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm FuseYellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm FuseYellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse

Features

Housing: PVC, flame retardant 94 V0, environmental protection,heat dissipation.

Terminal: H62 brass nickel plating

UL standard wire 8~14AWG is exposed at both ends (can be adapted according to customer requirements).

Lead Pull Strength 200N for 10±1 Seconds

The waterproof seat is repeatedly pulled out and tested 1000 times, and the sealing strength is always maintained. The waterproof grade meets the waterproof requirement of IP67.

Unplug the fuse holder, put the 10*38 fuse into the fuse box, press the upper and lower cover tightly, and then install the buckle. Connect the fuse box with the fuse leads at both ends in series in the circuit that needs protection.

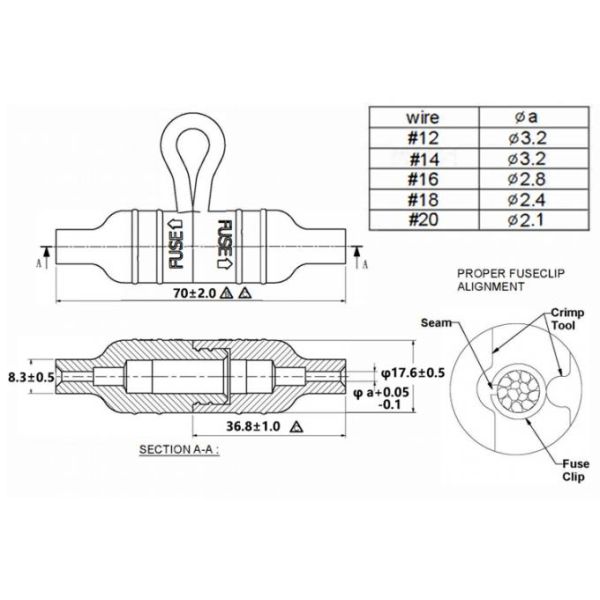

Size

Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse

Related types

Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.


Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer free sample if small amount but do not pay the cost of freight.

Contact:

Bonnie Chan
E-mail:admin@tianrui-fuse.com.cn
Mobile:+86-180 2522 7727

Whatsapp:+86-13712758342

Wechat1:halobee9

Wechat2:fusechina
Skype: tianruifuse05
