EN 10270-3 Stainless Steel Wire For Springs
EN 10270-3 Stainless Steel Wire For Springs
EN 10270-3 Stainless Steel Wire For Springs
EN 10270-3 Stainless Steel Wire For Springs
Specifications
Brand Name :
Fushun
Model Number :
STAINLESS STEEL
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40,000tons/year
Delivery Time :
15-30 days
Packaging Details :
nylon/pallet/case
Diameter mm :
0,20 mm to 10,00 mm
Delivery Condition :
cold drawn
Surface Condition :
bright, copper, lead, oxide, and other
Classification :
Stainless Steel Spring Wires
Description

STAINLESS STEEL WIRE FOR SPRINGS

FUSHUN is today recognized as a premium producer of spring wire within the spring industry. Specializing in stainless steel and nickel alloy grades of round, profile or flat spring wire we have the expertise and knowledge to produce material for precision and standard spring production. FUSHUN has developed:

· Consistent quality

· Excellent coilability, even by robot

· Tailor made production (matt or bright finishing) produced with high performance coatings

· Customised production available on request.

· Global partners

Diameters

Standard from 0,20 mm to 10,00 mm. Larger or smaller diameters available on request.

Product availability

AISI EN 10270-3 W. Nr.
302 X10CrNi 18-8 1.4310
304 X5CrNi 18-10 1.4301
316 X5CrNiMo 17-12-2 1.4401
316 Ti X6CrNiCuMoTi 17-12-2 1.4571
631 X7CrNiAl 17-7 1.4568
904 L X1NiCrMoCu 25-20-5 1.4539
2205 X2CrNiMoN 22-5-3 1.4462

Mechanical properties

In accordance with
EN 10270-3
On request

Surface finishes coatings

Bright
Stearate coated

Supply condition

Hard drawn.

Tolerances

In accordance with
EN 10270-3
On request

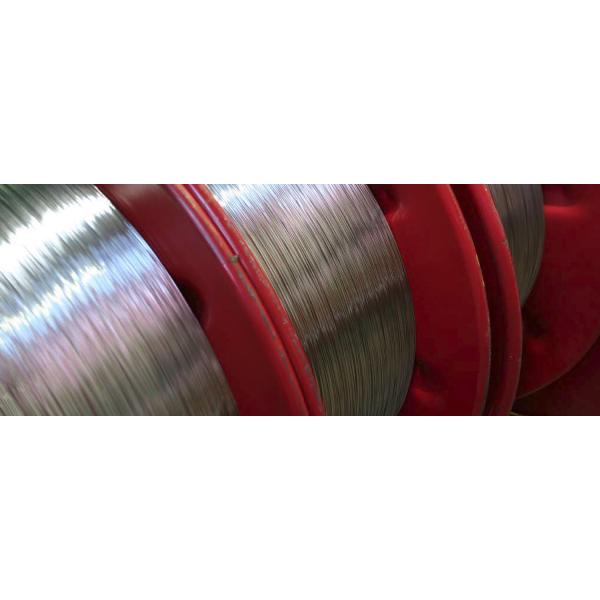

Packing for wire for springs

Coil Cardboard coil (Z2) Steel reel k760 Spool d460
Diameter (mm) 0.80 to 1.50 1.50 to 6.00 1.60 to 6.00 0.80 to 2.50 0.20 to 0.75
Weight (kg) 25 to 50 100 to 200 500 to 1000 150 to 250 20 to 40
Inner Ø (mm) 300 to 500 500 to 700 380 - -

Grades & chemical composition

Novametal C Si Mn P S Cr Ni Mo Others
302 0.05 to 0.15 2.00 max 2.00 max 0.045 max 0.03 max 16.00 to 19.00 6.00 to 9.50 - -
304 G 0.70 max 1.00 max 2.00 max 0.045 max 0.03 max 17.50 to 19.50 8.00 to 10.50 - -
316 G 0.70 max 1.00 max 2.00 max 0.045 max 0.03 max 16.50 to 18.50 10.00 to 13.00 2.00 to 2.50 -
316 Ti 0.08 max 1.00 max 2.00 max 0.045 max 0.03 max 16.50 to 18.50 10.50 to 13.00 2.00 to 2.50 Ti: 5xC/0.70
631 0.09 max 0.70 max 1.00 max 0.045 max 0.015 max 16.00 to 18.00 6.50 to 7.80 - Al: 0.70 to 1.50
904/L 0.02 max 0.70 max 2.00 max 0.030 max 0.010 max 19.00 to 21.00 24.00 to 26.00 4.00 to 5.00

Cu: 1.20-2.00

N: 0.10 max
1.4462 G 0.03 max 1.00 max 2.00 max 0.030 max 0.015 max 22.00 to 23.00 4.50 to 6.50 3.00 to 3.50 N 0.14 to 0.20

EN 10270-3 Stainless Steel Wire For Springs
