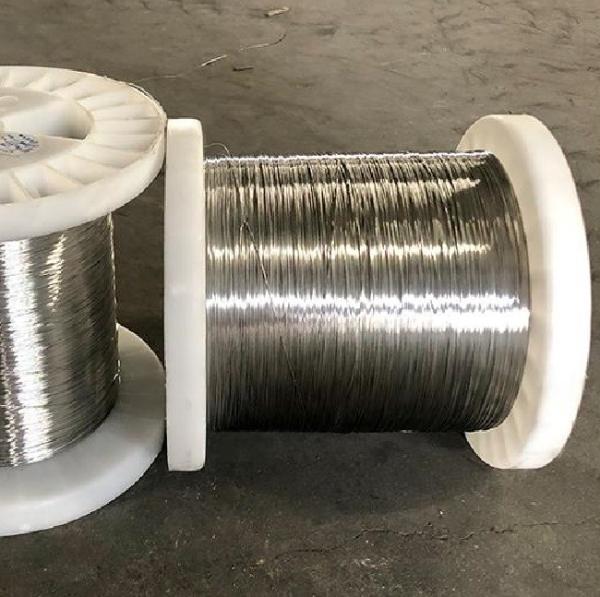

Inconel 617, N06617, 2.4663 Nickel Alloy Spring Wire
Inconel 617, N06617, 2.4663 Nickel Alloy Spring Wire
Specifications
Brand Name :
fushun
Model Number :
617
Certification :
ISO NQA
Place of Origin :
CHINA
MOQ :
1KG
Payment Terms :
L/C, T/T, D/P, D/A
Delivery Time :
1
Material :
Nickel Alloy
Application :
Spring
Description

Inconel 617, N06617, 2.4663 Nickel Alloy Spring Wire

Similar high temperature resistance to INCONEL 600/601 with improved strength, while offering comparable corrosion resistance to INCONEL 625.

Size

Diameter: 0.1 - 40mm

Shape: round, square, flat, special shaped

Key Features

Similar high temperature resistance to INCONEL 600/601 with improved strength, while offering comparable corrosion resistance to INCONEL 625.

Typical Applications

Aerospace Components

Land Based Gas Turbines

Power Generation

Acid Processing

Petrochemical Processing

Springs

Designations

UNS N06617

W.Nr. 2.4663

NiCr22Co12Mo9

Specifications

ASTM B166

ASTM B168

AMS 5887

AMS 5889

ISO 9724

ISO 6208

DIN EN 17753

Chemical Composition

Element Min % Max %
Ni 44.5 –
Cr 20 24
Co 10 15
Mo 8 10
Al 0.8 1.5
C 0.05 0.15
Fe – 3
Mn – 1
Si – 1
S – 0.015
Ti – 0.6
Cu – 0.5
B – 0.006

Physical Properties

Density Melting Point Coefficient of Expansion Modulus of Rigidity Modulus of Elasticity
8.36g/cm³ 1330 – 1380 °C 11.6 μm/m °C (20 – 100 °C) 81 kN/mm² 212.0 kN/mm²
0.302 lb/in³ 2430 – 2510 °F 7.0 x 10-6 in/in °F (70 – 212 °F) 11.8 ksi 30700 ksi

Mechanical Properties(Annealed)

Approx. tensile strength <1000 N/mm² <145 ksi
Approx. operating temperature depending on load and environment Up to 1100 °C Up to 2012 °F

Mechanical Properties(Spring Temper)

Approx. tensile strength 1300 – 1600 N/mm² 190 – 230 ksi
