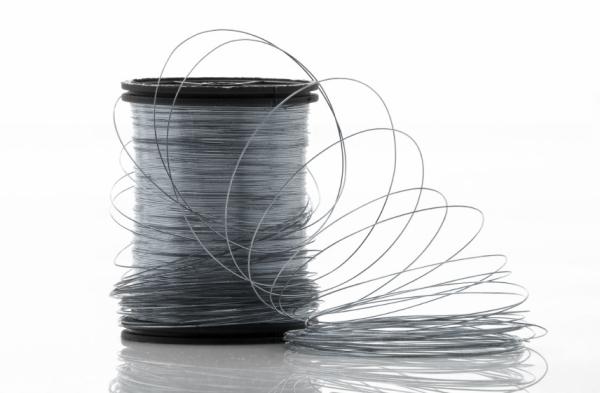

Monel 400, N04400, 2.4360, Nickel Alloy Spring Wire
Monel 400, N04400, 2.4360, Nickel Alloy Spring Wire
Specifications
Brand Name :
fushun
Model Number :
400
Certification :
ISO NQA
Place of Origin :
CHINA
MOQ :
1KG
Payment Terms :
L/C, T/T, D/P, D/A
Delivery Time :
1
Material :
Nickel Alloy
Application :
Spring
Description

Monel 400, N04400, 2.4360, Nickel Alloy Spring Wire

A Nickel-Copper alloy with high strength and excellent corrosion resistance in a range of acidic and alkaline environments and suitable for reducing conditions. It also has good ductility and thermal conductivity. Used in a variety of applications, Monel 400 has excellent resistance to seawater, and can also be used in hydrochloric and hydrofluoric acids.

Monel 400 is also known as Phyweld 400 and Nicorros LC.

Size

Diameter: 0.1 - 40mm

Shape: round, square, flat, special shaped

Key Features

  • Excellent corrosion resistance in a wide range of acidic & alkaline environments
  • Especially suitable for reducing conditions
  • Good ductility & thermal conductivity
  • Good for sea water applications

Typical Applications

Marine engineering

Chemical processing

Hydro-carbon processing

Heat exchangers

Valves

Pumps

Designations

W.Nr 2.4361

W.Nr 2.4360

UNS N04400

AWS 040

Specifications

AMS 4730

ASTM B164

BS 3075 NA 13

BS 3076 NA 13

DTD 204B

ISO 15156-3

(NACE MR 0175)

QQ-N-281

Chemical Composition

Element Min % Max %
C – 0.3
Si – 0.5
Mn – 2
S – 0.024
Cu 28 34
Fe – 2.5
Ni+Co 63 70
Co – 2

Physical Properties

Density Melting Point Coefficient of Expansion Modulus of Rigidity Modulus of Elasticity
8.8 g/cm³ 1350 °C 13.9 μm/m °C (20 – 100 °C) 65.3 kN/mm² 173 kN/mm²
0.318 lb/in³ 2460 °F 7.7 x 10-6 in/in °F (70 – 212 °F) 9471 ksi 25092 ksi

Heat treatment

Condition Type Temperature Time Cooling
Annealed or Spring Temper Stress Relieve 300 – 320 °C
(570 – 610 °F)		 0.5 – 1 Hr Air

Mechanical Properties

Annealed Approx. tensile strength <600 N/mm² <87 ksi
Approx. operating temperature -200 to +230 °C -330 to +445 °F
Spring Temper Approx. tensile strength 800 – 1100 N/mm² 116 – 160 ksi
Approx. operating temperature -200 to +230 °C -330 to +445 °F
