Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder
Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder
Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder
Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder
Specifications
Brand Name :
MM-Tech
Model Number :
SWT-V200/50MS
Certification :
ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
Place of Origin :
Hebei,China
MOQ :
10 Sets
Price :
US$1200-US$1600
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Sets Per Month
Packaging Details :
Plywood Case
Product Name :
Butt Welding Fusion Machine Thermofusion Welding Machine
Usage :
Welding Pe,Pp,Pvdf,Pvc Pipe
Pipe Size :
50-200mm
Input voltage :
110V/220V
Type :
Manual
Warranty :
2 Years
Power :
2.3kw
Frequency :
50Hz
Condition :
New
Description

Custom 200mm Manual Aluminium Alloy Profiles Butt Fusion Welder

Manual Butt Fusion Welding Machine Introduction:

Model SWT-V200/50MS Hand Movement Push Butt Welding Machine is suitable for welding PE PP PPR plastic pipe in all size. It is widely used to Agricultural, chemical, oil and gas pipelines, water supply pipes, drainage pipes etc,

Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder

Manual Butt Fusion Welding Machine Specification:

Technical Parameters

SWT-V200/50MS

Welding Range O.D.

50,63-75-90-110-125-140-160-180-200 mm

Power Supply

(110V*) 220V, 50/60Hz

Rated Power

1.8 kw

Temperature Range

Max. 300ºC

Packing dimension

550*480*420 mm

480*420*570 mm

Gross Weight

95 kgs

Maual Butt Fusion Welding Machine Accessories Advantages:

Frame
The raw material of the machine frame is aluminum, it is light but strong, one of the best material of machine.

Heating Plate
The electric heating plate adopts PTFE coating, good stability and independent temperature control system. Temperature difference control to domestic machine minimum range.

Milling Cutter
The Milling cutter adopts the domestic brand motor, the performance is stable, the blade is used with one knife and two sides to open the blade.

Electrical Components
The main electrical components are imported or the best components in using high-power temperature control instrument.

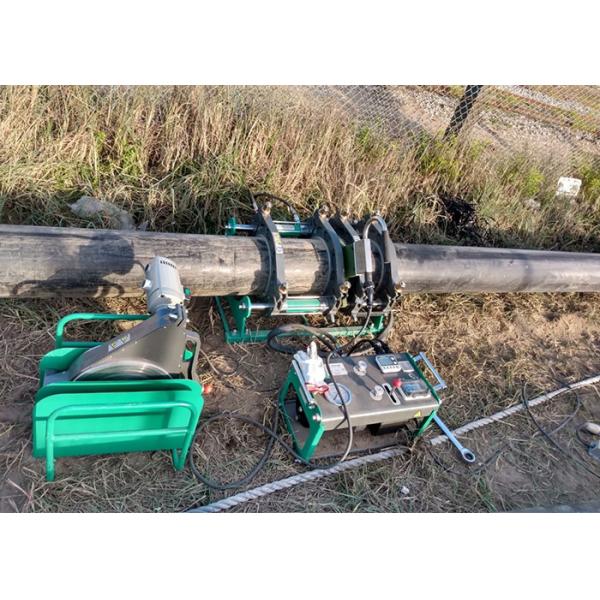

Constrution Pictures:

Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder

FAQ:


Why choose us?
1. Genuine produces with excellent quality and competitive price
2. Cooperating with the customers all over the world and knowing the markets very well.
3. After-services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Why our price very stable and competitive?
1.Our factory have ourselves meltshop, most parts of the body machines from ourselves factory, save the cost.
2. We have some big customers from Southeast Asia market and Russia market,every mouth have the stable machines export, keep our value of exports.

Company Profiles:

Custom 200mm Aluminium Alloy Profiles 2.3kw Butt Fusion Welder

MM-Tech is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China.

Our main products:butt fusion machine,socket fusion machine,electrofusion machine, hot air welders,hot air welding machine, extrusion welders, geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.
