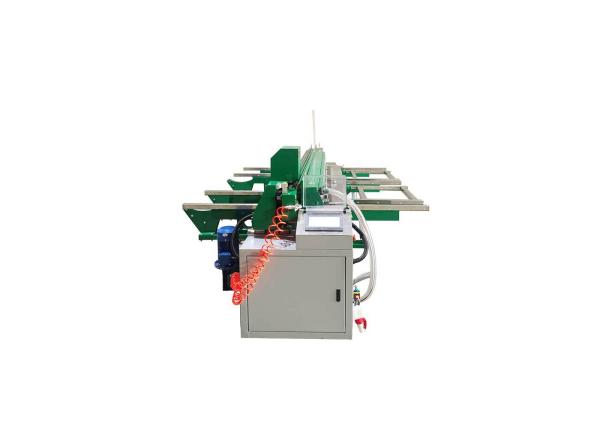

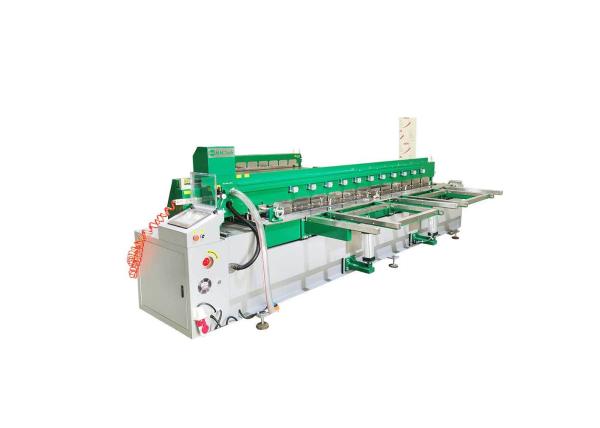

Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm
Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm
Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm
Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm
Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm
Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH3000
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
$12000-$13200 set
Payment Terms :
T/T, Western Union
Supply Ability :
10 sets per week
Delivery Time :
5-8 work days
Packaging Details :
Wooden Box
Product Name :
Sheet Butt Fusion Welding Machine
Rated Voltage :
380V 50/60Hz
Heating Mode :
Overall Heating
Packing Diamensions :
3900*1300*1450
Weldable Working length :
3000mm
Roll Circle Diameter minimum :
400mm
Rated Current :
13.6A
Rolling Motor Power :
1.5 KW
Warranty :
2 years
CE Certification :
Yes
Description

Semi - Automatic Button Manual Sheet Butt Fusion Welder For Soldering 3 - 30mm Sheet

Sheet Butt Fusion Welder Brief Introduction:


SWT-PH3000 sheet butt fusion welder is suitable for welding thermoplastic sheets. It can be supported the welding method:
1. welding line
2. welding circular

Sheet Butt Fusion Welding Machine Specification:

 SWT-PH2000 SWT-PH3000
plate thickness(mm) 3-30 3-30
welding effective
length(mm)		 2000 3000
Minimum
diameter(mm)		 380 400
Energy source(M
fand/min)		 0.0032 0.0052
Rated voltage(V) 380 380
Heating method whole heating whole heating
Heating power 4KW 6KW
Winding motor power 1.5KW 1.5KW
Dimensions(mm) 2850*1200*1200 3750*1200*1200
Suitable material PP PVC PVDF PPN PE etc
Scope of application Electroplating, environmental protection_
chemical containers, sewage treatment,
pipelines, ventilation systems, etc.

Sheet Butt Fusion Welding Machine Features:

* Heating element: Taiwan imported heating knife, the surface is coated with Teflon

* Device equipped with automatic winding device mechanism

* Suitable material: PP,PE,PVDF,PVC,PPN,etc.

* Can be customaized according to customer requirements

* Scope of application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.

Sheet Butt Fusion Welding Machine Application:

Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm


Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm

Service:

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

.
