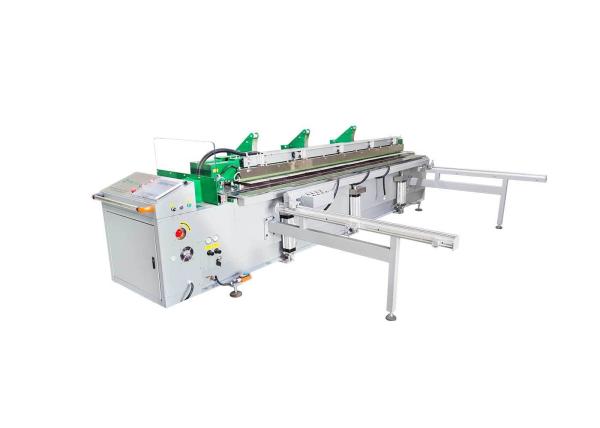

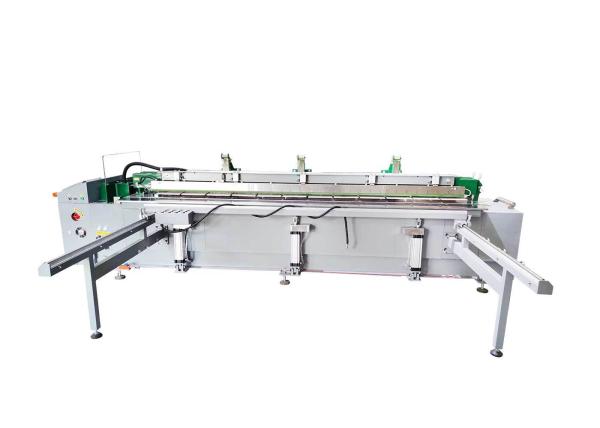

Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved
Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved
Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved
Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved
Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved
Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PZ4000
Certification :
CE,ISO
Place of Origin :
Hebei,China
MOQ :
1set
Price :
USD26400-USD31000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per week
Packaging Details :
Wooden Box
Product Name :
Sheet Butt Fusion Welding Machine
Condition :
New
Automation :
semi-auto
Warranty :
2 Years
Weight :
1700KG
Voltage :
380V
Range of Stickness :
3-25 mm
Max Lengh :
4000 mm
Scope of Application :
PP,PE,PVC,PVDF,PPN
Dimension :
5000*1100*1200
Package Meas :
5100*1250*1370
Function :
Rolling and Welding
Description

SWT - PZ4000 Hydraulic Butt Fusion Plastic Welding Machine Pipe Machine

Sheet Bending Machine Application:

SWT series combined bending and butt fusion welding machineare suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.

Sheet Butt Fusion Welding Machine Specification:

Specification/Size SWT-PZ4000
Weldable sheet thickness(mm) 3.0-25.0
Max working length(mm) 4000
Roll circle diameter minimum(mm) 500
Air pressure(kg.f/cm²) 6.0-8.0
Rated voltage(V) 380V
Rated current(A) 80A
Bending Heating Power(kW) 12kW
Welding Heating Power(kW) 8kW
Drum institutions motor power 1.5kW
External dimensions(L*W*H) mm 5000*1100*1200
Packing dimensions(L*W*H )mm 5100*1250*1370
N.W KGS 1600kg
G.W KGS 1700kg

Sheet Butt Fusion Welding Machine Features:

  1. Versatile use:Welding function and bending function are both available in our model.
  2. Efficient and accurate:Siemens control system and touch screen control mode make the control efficient and accurate.
  3. Easy to use:Our strong point are to design easy-to-use equipments, not complicated ones.You can finish every function within 5 steps with our model.
  4. Wide applicability:Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
  5. Stable performance:With most-to-up technology and top designers we successfully design and manufacture for customers.The plates processed by our model have good-looking appearance and the angle is very strong.
  6. Easy-to-maintain:It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.

Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved

Application:

Hydraulic Butt Fusion Plastic Sheet Welding Machine 380V ISO Approved

After-Sales Service:

We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free.
