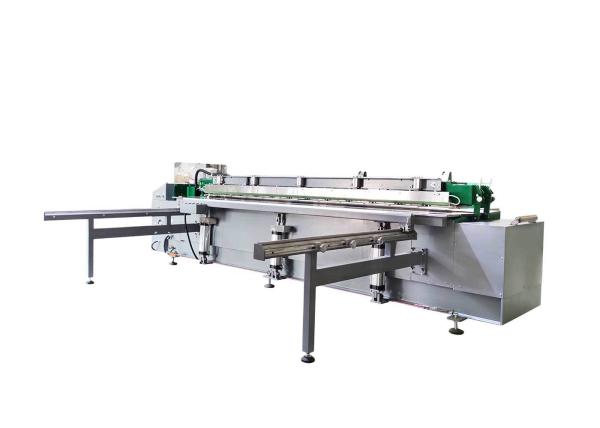

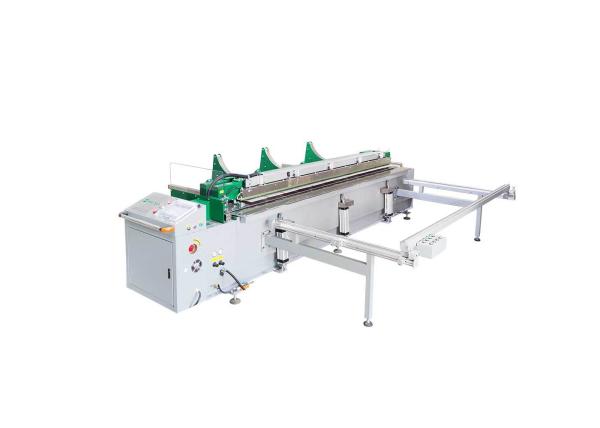

Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling
Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling
Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling
Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PZ4000
Certification :
CE
Place of Origin :
HEBEI,CHINA
MOQ :
1
Price :
USD 20,000 - USD 24,000 / SET
Payment Terms :
Western Union, T/T, PayPal
Supply Ability :
600 SETS / MONTH
Delivery Time :
within 7 days
Packaging Details :
Plywood Case
Model :
SWT-PZ4000
Roll circle diameter min :
500
Rated current :
80A
Bending heating power :
12kW
Welding heating power :
8kW
N.W :
1600KG
G.W :
1700KG
Brand :
MM-TECH
Weldable sheet Thickness :
3 - 25mm
Max working length :
4000mm
Bending angle :
0 - 100°
Rated voltage :
380V, 50/60Hz
Air pressure(kg.f/cm²) :
6.0-8.0
Drum institutions motor power :
1.5kW
External dimensions :
5000*1100*1200mm
Packing dimensions :
5100*1250*1370mm
Description

Multi-Function HDPE Sheet Bending Machine Intergrated 90° Rolling Butt Fusion Welding

Sheet Bending Machine Features

  • Working length up to 4000mm
  • Weldable sheet thickness from 3mm to 25mm
  • Suitable for thermoplastic material like PE PP PVC PVDF
  • Multi-Function include Bending, 90°, Rolling, Butt Fusion Welding

Sheet Bending Machine Data Reference

Model SWT-PZ4000
Weldable sheet thickness 3 - 25mm
Max working length 4000mm
Bending angle 0 - 100°
Roll circle diameter min 500
Air pressure(kg.f/cm²) 6.0 - 8.0
Rated voltage 380V, 50/60Hz
Rated current 80A
Bending heating power 12kW
Welding heating power 8kW
Drum institutions motor power 1.5kW
External dimensions 5000*1100*1200mm
Packing dimensions 5100*1250*1370mm
N.W 1600KG
G.W 1700KG

Finished products by Multi-Function Sheet Welding Machine

Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling

Supreme Service

Machine Quality Guarantee: 24 months. If any parts broken or doesn't work under normal operating, we are free to offer.
