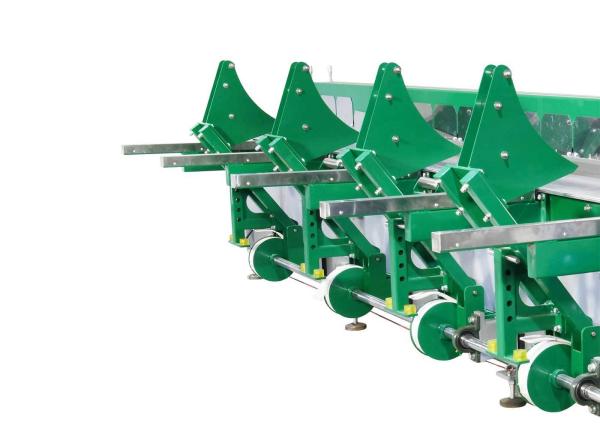

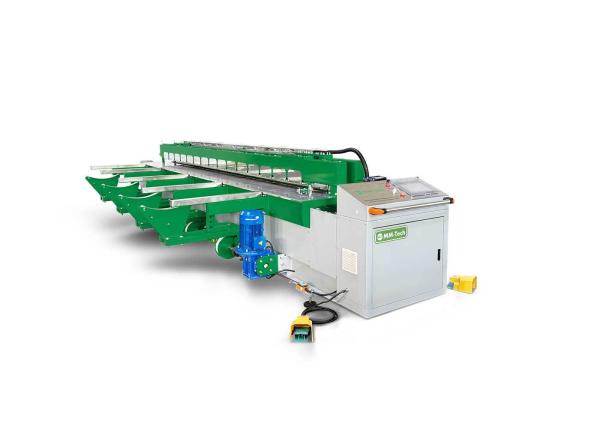

5000mm Butt 380v Plastic Sheet Welding Machine
5000mm Butt 380v Plastic Sheet Welding Machine
5000mm Butt 380v Plastic Sheet Welding Machine
5000mm Butt 380v Plastic Sheet Welding Machine
5000mm Butt 380v Plastic Sheet Welding Machine
5000mm Butt 380v Plastic Sheet Welding Machine
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH5000
Certification :
CE
Place of Origin :
HEBEI, CHINA
MOQ :
1
Price :
US$22,000-26,000/set
Payment Terms :
T/T, Western Union, PayPal, Credit Card
Supply Ability :
1200 sets per week
Delivery Time :
Within 7 days
Packaging Details :
1 Plywood Case
Max Welding Length :
5000mm
Roll circle diameter minimum :
550mm
Rated voltage :
380V
Frequency :
50/60Hz
Heating power :
10kW
Rolling motor power :
1.5kW
Rated current :
13.6A
Material thickness to weld :
3-30mm
Net weight :
1800kg
Gross weight :
1950kg
Description

Plastic Sheet Butt Welding Machine Sheet Welder Features

1. Manual control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.
2. Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
3. Sectional heating for models of 3 meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.
4. Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.
5. Components imported from Japan for control system, with stable properties, lasting and endurable.

5000mm Butt 380v Plastic Sheet Welding Machine

Plastic Sheet Butt Welding Machine Sheet Welder Parameters

Model SWT-PH5000
Max welding length 5000mm
Sheet thickness to weld 3-30mm
Roll circle diameter minimum 550mm
Air pressure 6-8kg.f/cm²
Rated voltage 380V
Frequency 50/60Hz
Rated current 13.6A
Heating power 10kW
Rolling motor power 1.5kW

Plastic Sheet Butt Welding Machine Sheet Welder Workshop

5000mm Butt 380v Plastic Sheet Welding Machine
