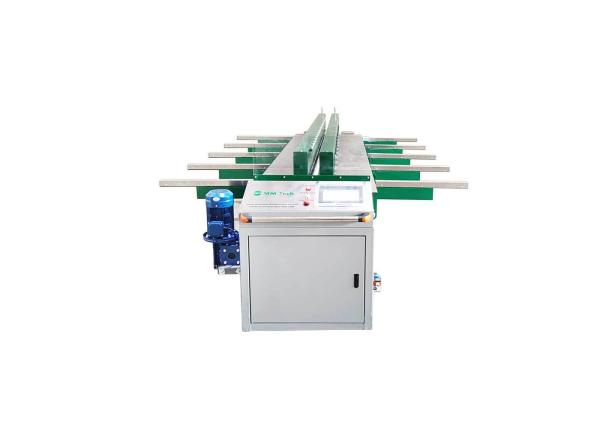

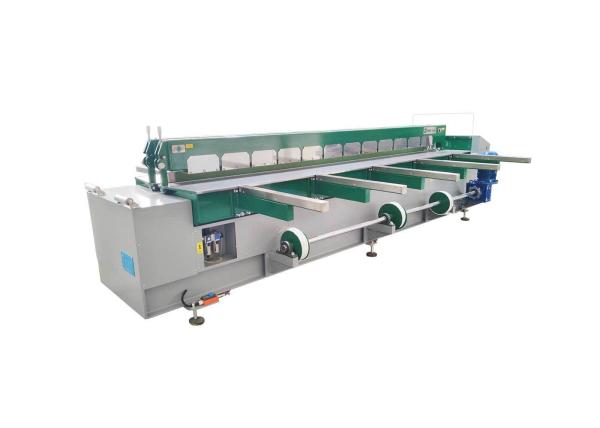

Polypropylene Sheet 380V Butt Fusion Welding Machine
Polypropylene Sheet 380V Butt Fusion Welding Machine
Polypropylene Sheet 380V Butt Fusion Welding Machine
Polypropylene Sheet 380V Butt Fusion Welding Machine
Polypropylene Sheet 380V Butt Fusion Welding Machine
Polypropylene Sheet 380V Butt Fusion Welding Machine
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH4000
Certification :
CE
Place of Origin :
HEBEI, CHINA
MOQ :
1
Price :
US$12,500-16,500/set
Payment Terms :
T/T, Western Union, PayPal, Credit Card
Supply Ability :
1200 sets per week
Delivery Time :
Within 7 days
Packaging Details :
1 Plywood Case
Net weight :
1550kg
Gross weight :
1700kg
Heating power :
8kW
Rolling motor power :
1.5kW
Rated current :
13.6A
Frequency :
50/60Hz
Rated voltage :
380V
Roll circle diameter minimum :
450mm
Material thickness to weld :
3-30mm
Max Welding Length :
4000mm
Description

Polypropylene Sheet Butt Fusion Welding Machine Sheet Welding

MM-Tech Polyfusion range of manual and automatic sheet welding machine are butt fusion machines suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PDF.

The MM-Tech Sheet Welder operates to weld horizontally which enables multiple types of welds including circular up to 90 degrees thanks to the available range of accessories. This butt fusion machine is also able to weld twin-wall HDPE and PP sheets. The maximum weldable plastic thickness for this machine is 3 ÷ 50mm with materials that require a maximum welding pressure not higher than 0.17 N/mm2; Max. The maximum weldable length possible is 3000mm.

The digital control panel on every MM-Tech Polyfusion machine allows you to easily and safely control the settings required for optimal performance across a range of welding processes. Simply input your needs including the type of material and the dimensions of the thermoplastic sheet.

It is possible to pre-set 15 customised welding cycles with every welding cycle is automatically memorised (4000 welding cycles) and it’s possible to save it and transfer the data thanks to an USB storage device.

The Polyfusion sheet welding machine comes in five sizes with varying capabilities and specifications.

Polypropylene Sheet Butt Fusion Welding Machine Technical Data

Model SWT-PH4000
Max welding length 4000mm
Sheet thickness to weld 3-30mm
Roll circle diameter minimum 450mm
Air pressure 6-8kg.f/cm²
Rated voltage 380V
Frequency 50/60Hz
Rated current 13.6A
Heating power 8kW
Rolling motor power 1.5kW

Overview of Finished Product by Polypropylene Sheet Butt Fusion Welding Machine

Polypropylene Sheet 380V Butt Fusion Welding Machine
